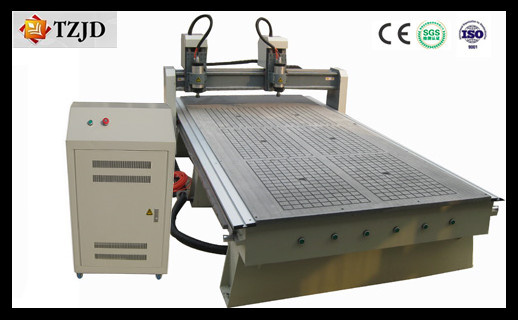

Distributors Needed Woodworking CNC Carving machine
1. The lathe bed was cast steel square tube welding body, strong and without distortion.
2. Heavy-duty structure in "Trapezoid" type, and big Gantry bracket.
3. Double spindles working simultaneously, improve working-efficiency & easily-operating.
4. Advanced DSP Controller system, to engrave/cut 3D designs within multiple-lays.
5. Vacuum absorption table was adding, it can absorp the wooden materials closely. Guarantee the working-efficiency.
6. Vacuum pump system with six zones, vacuum pump system.
7. Auto-oiling system. Extra time can be saved.
8. High power spindle 4.5KW/5.5KW/6KW/9KW, brushless, water-cooling/air-cooling, working vigorously with low noise.
9. Type3/Artcam/Ucancam/JD Paint/Coreldraw/Castmate/Wentai these related working software.
Applicable industry:Wood industry, furniture, woodworker, relief, Advertising industry, breastplate, doorplate, Art-craft industry, double-color board, bamboo crafts.
Applicable material:Wood, organic glass, PVC board, KT board, Acryl, MDF board, plastic, metal/aluminum, wood waves, indoor & our door engraving/carving/cutting, etc.
Woodworking carving machine, woodworking engraving machine, wood working machine, CNC router for woodworking, CNC engraver, CNC engraving machine, CNC wood engraving machine, CNC cutting machine.
| Description | Paramater |
| TZJD-1325D |
| Working Area (X*Y*Zmm) | 1300mmx2500mmx200mm |
| X, Y Structure | Gear Wheel Transmission, Shaft Linear Bearings |
| Z Structure | Ball Screw/Gear Wheel |
| Table Surface | Bakelite Vacuum Absorption Table |
| Max Engraving Speed | 18000mm/min |
| Frame | Cast Steel Square tube welding |
| Spindle power(KW) | 4.5Kw/5.5kw/6kw/7.5kw/8kw/9kw, *2 |
| Max. Power Consumption(Without spindle) | 2.0KW |
| Spindle Speed | 6000-18000rpm |
| Resolution | 0.005mm |
| Repeatability | 0.01mm |
| Voltage | AC220V, 50/60Hz, 1PH(option, 380V 3PH) |
| Drive motor | Stepper/Servo(option) |
| Working Dictate | G Code*. u00*. mmg*. plt |
| Operating system | Dsp System |
| Interface | USB |
| Flash memory | 128M(U Disk) |
| Software Compatability | Type3, Ucancam, Artcam Software |
| Running Environemt | Temperature: 0-45 |
| Relative humidity: 30%-75% |
| Windows98/2000/xp |
| Machine available | Vacuum absorption table, 5.5KW vacuum pump system, Auto-oiling system, Dust collector with dust cover, Spindle cover device, Rotary device |
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.
The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.
Tengzhou Jianda CNC Machine Co., Ltd Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.
Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.
Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
