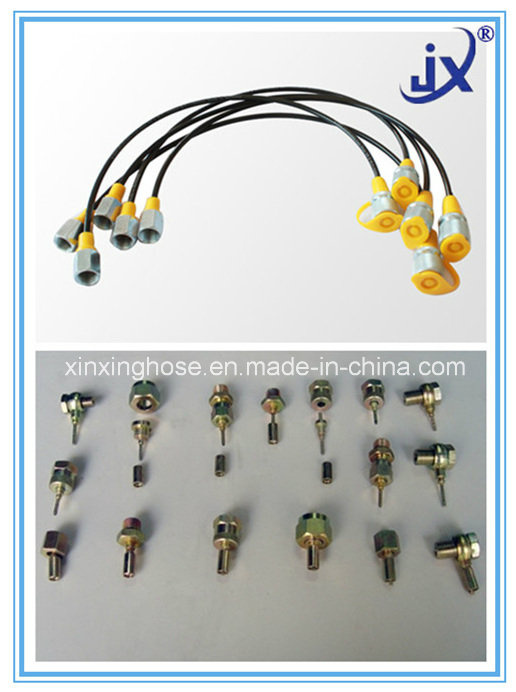

Pressure Test Hose/testing hose assembly
specifications and special features
Inner layer: imported aramid fiber.
Enhancement layer: industrial fiber(kevlar).
Outer layer: polyurethane.
Temperature: -40°C~120°C.
Pressure: 1.Working Pressure can reach 630 Bars.
2.Burst Pressure can reach 3000 Bars.
Features: Oil ,PH and pressure resistance.
Application: be used as air, mineral oil , water-glycol ,alcohol transport
Test hose Optional length: 0.5m, 1 m, 1.5 m, 2 m, other specifications order can be shipped the same day.
Technical parameters
Specification | Inner Radius
(mm) | Outer Diameter
(mm) | Available Working Pressure
(Mpa) | Mix Burse Pressure
(Mpa) | Mix Bending Radiu
(mm) |
| XPA-2 | 2 | 5 | 64 | 160 | 30 |
| XPA-2.5 | 2.5 | 5.5 | 64 | 160 | 35 |
| XPA-3 | 3 | 6 | 64 | 160 | 45 |
| XPA-3 | 3 | 7 | 100 | 260 | 50 |
Our Advantage
(1)We can do the designs according to customers' requirements.
(2)We can open customers' own mold as per their requirements.
(3)We can offer you a good after-sell service.
(4)Prompt delivery.
Quality Testing & Packing
(1)Quality test: 100% pressure test and leakage test before packing.
(2) packing details: standard export packing or according to customer's special requirements
IF YOU ARE INTERESTED IN OUR PRODUCTS, PLEASE DO NOT HESITATE TO CONTACT WITH US.
Ningjin Xinxing hose Co., Ltd. is a new enterprise development of high performance resin hose
The products have been widely used in petroleum, chemical industry, engineering machinery manufacturing, coal mining, shipbuilding, aviation, automotive, medical equipment and other industries, is the hydraulic and mechanical equipment ideal pneumatic hose, is the most ideal equipment pressure hose, liquid, and powder delivery, high pressure spraying, high pressure cleaning, sand blasting and other fields.
The company has strong technical force and professional design production capacity, have established close cooperative relations with many domestic university and Research Institute, and constantly develop new practical quality products.
Our company supplys different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
