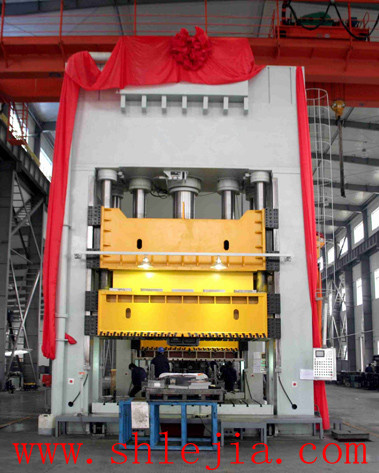

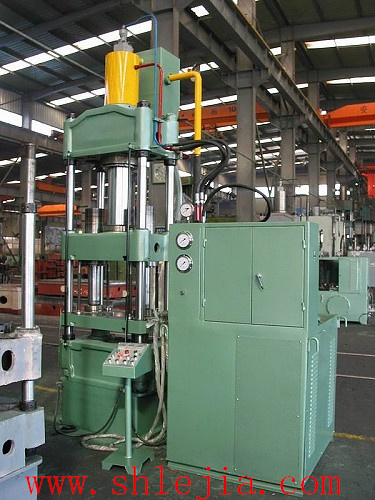

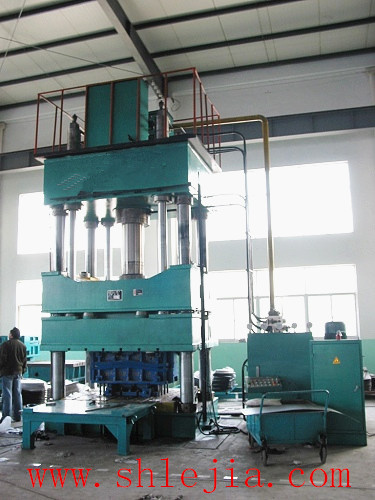

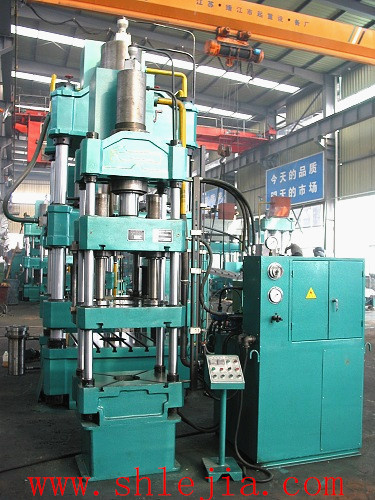

Double Action Hydraulic Drawing Press
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Mainly used for deep drawing products shape. Apply in
(1)vessel category: Stainless steel, aluminum, enamel bath slot, pressure vessel, stainless steel catharsis chamfer production;
(2) producing of large automobile cover parts;
(3) the production of drawing products of tractor, motorcycle and aerospace industries;
(4) the various molding commissioning.
Features:
1. The equipment adopts pre-tightening combined-type structure or four-column structure.
2. Tetragonal trisoctahedron guide takes the advantages of high accuracy, anti-overload ability and centralized lubrication.
3. The structure is economical, simple and practical.
4. Import new type ring seals to ensure a reliable seal.
5. Movable table is fixed for the convenience of the exchange of moulds.
6. Slides can be connected by dowel pin to realize single action process.
7. Security device integration is equipped for the body, electrical and hydraulic parts.
8. Process action is controlled by imported PLC to form a reliable action.
Description |
Unit |
YQ28-63/100 |
YQ28-100/140 |
YQ28-200/300 |
YQ28-315/400 |
YQ28-300/500 |
YQ28-400/630 |
YQ28-500/800 |
YQ28-1200/1800 |
YQ28-1600/2100 |
YQ28-2000/2600 |
Rated Pressure |
KN |
1000 |
1400 |
3000 |
4000 |
5000 |
6300 |
8000 |
18000 |
21000 |
26000 |
Maximum Press Ofliquid |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
Drawing Force |
KN |
630 |
1000 |
2000 |
3150 |
3000 |
4000 |
5000 |
12000 |
16000 |
20000 |
Blank Holder Pressure |
KN |
2×200 |
2×200 |
4×250 |
4×250 |
4×500 |
4×630 |
4×800 |
4×1500 |
4×1250 |
4×1500 |
Ejection Force |
KN |
190 |
190 |
630 |
630 |
630 |
1000 |
1600 |
1600 |
1600 |
1600 |
Central Hole Size of Blank-holder Slide |
mm |
φ260 |
φ330 |
φ420 |
φ500 |
800×600 |
1400×800 |
900×550 |
3540×1970 |
1840×1240 |
2040×1840 |
Max.Operating Height of Drawing Slide |
mm |
1100 |
1100 |
1480 |
1650 |
2000 |
2200 |
2020 |
2600 |
2000 |
4500 |
Max. Operating Height of Blank-holder Slide |
mm |
590 |
550 |
900 |
1000 |
1100 |
1450 |
1500 |
2400 |
2000 |
4500 |
Max. Stroke of Drawing Slide |
mm |
600 |
600 |
700 |
800 |
900 |
800 |
900 |
1350 |
1000 |
2000 |
Max.stroke of blank-holder slide |
mm |
300 |
300 |
400 |
400 |
400 |
900 |
900 |
1350 |
1000 |
2000 |
Ejection cylinder stroke |
mm |
200 |
200 |
300 |
300 |
300 |
350 |
350 |
400 |
400 |
400 |
Speed of drawing slide |
Descent |
mm/s |
120 |
120 |
100 |
100 |
150 |
120 |
100 |
120~150 |
120~150 |
120 |
Pressing |
mm/s |
12~14 |
10~14 |
12~18 |
6~10 |
20~24 |
10~16 |
10~15 |
15~20 |
10~15 |
10~16 |
Return |
mm/s |
120 |
120 |
80 |
60 |
160 |
80 |
80 |
100 |
100 |
80 |
Size of drawing slide |
L-R |
mm |
720 |
720 |
1000 |
1260 |
1500 |
2500 |
1600 |
3500 |
1800 |
2000 |
F-B |
mm |
580 |
620 |
900 |
1200 |
1500 |
1700 |
1600 |
1930 |
1200 |
1800 |
Size of blank-holder slide |
L-R |
mm |
720 |
720 |
1000 |
1260 |
1500 |
2500 |
1600 |
4500 |
2600 |
3500 |
F-B |
mm |
580 |
620 |
900 |
1200 |
1500 |
1700 |
1600 |
2500 |
2200 |
3500 |
Size of table |
L-R |
mm |
720 |
720 |
1000 |
1260 |
1500 |
2500 |
1600 |
4500 |
2600 |
3500 |
F-B |
mm |
580 |
620 |
900 |
1200 |
1500 |
1700 |
1600 |
2500 |
2200 |
3500 |
Motor power |
KW |
7.5 |
7.5 |
22 |
22 |
2×30 |
2×22 |
45+22 |
3×45 |
3×45 |
3×45 |
Prod Model: |
YQ28 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Precision: |
High Precision |
Automatic Grade: |
Automatic |
Type: |
General Punching Machine |
Power Source: |
Hydraulic Pressure |
Controlling Mode: |
PLC |
