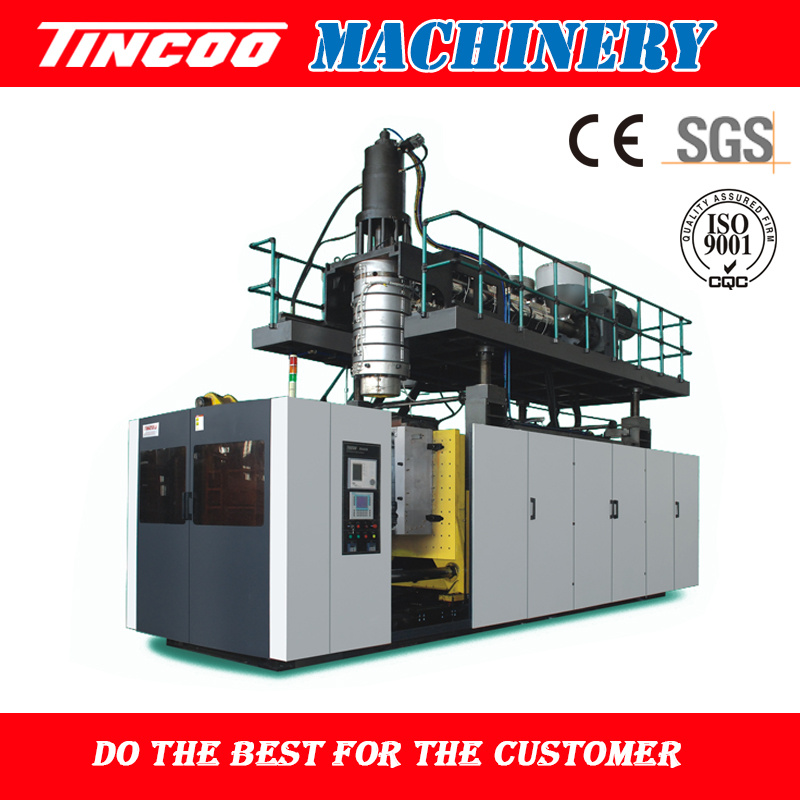

16L-60L double layers with accumulator head blow molding machine is a newly developed product in our company.This model uses twin-screw with co-accumulator die head and increase recycled layer&propotion as well as reducing the use of raw material to reduce product cost. Plasticization cancels V-belt drive, but adopt parallel shaft-helical gear reducer motor to reduce energy consuption, vibration and noise. Hydraulic clamping uses oil-filled cylinder and small oil tank to increase clamping pressure. And uses large tank in mold opening and closing to lessen oil pump displacement and energy consumption.
This model is applied for making trash,chemical barrels,pallets and cabinet products etc.
| Specification |
| DHB-M200 |
| Material |
| PP.PE... |
| Max.container capacity | L | 200 |
| Number of die | set | 1 |
| Output(dry cycle) | pcs/hr | 260 |
| Machine Dimension | m | 7.5×3×5 |
| Total weight | ton | 40 |
| Accumulator head |
| DHB-M200 |
| Accumulator volume | L | 16 |
| Power of die heating | KW | 50 |
| Max die-pin diameter | Zone | 5 |
| Die diameter | mm | 150-500 |
| Injection pressure | Mpa | 8 |
| Max.injection speed | Kg/sec. | 2 |
| Clamping Unit |
| DHB-M200 |
| Clamping force | KN | 860 |
| platen opening stroke | mm | 700-1700 |
| platen size | mm | 1300×1300 |
| Max mould size | mm | 1200×1500 |
| Mould moving speed | mm/se | 250 |
| Extruder Unit |
| DHB-M200 |
| Screw diameter | mm | 90/100 |
| Screw L/D ratio | L/D | 25:1 |
| Extruding Volume | Kg/hr | 120-200/180-270 |
| Screw rotation rate | r/min | 10-70 |
| Extruder heating power | KW | 20/22.4 |
| Screw driving power | KW | 45/55 |
| Power |
| DHB-M200 |
| Oil pump drive power | KW | 30 |
| Servo motor power | KW | 11 |
| General assembly power | KW | 235 |
| Air pressure | Mpa | 0.8-1 |
| Air consumption | m3/min | 2 |
| Average energy consumption | KW | 150 |
| Cooling water consumption | m3/min | 1.8 |
Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.
Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
