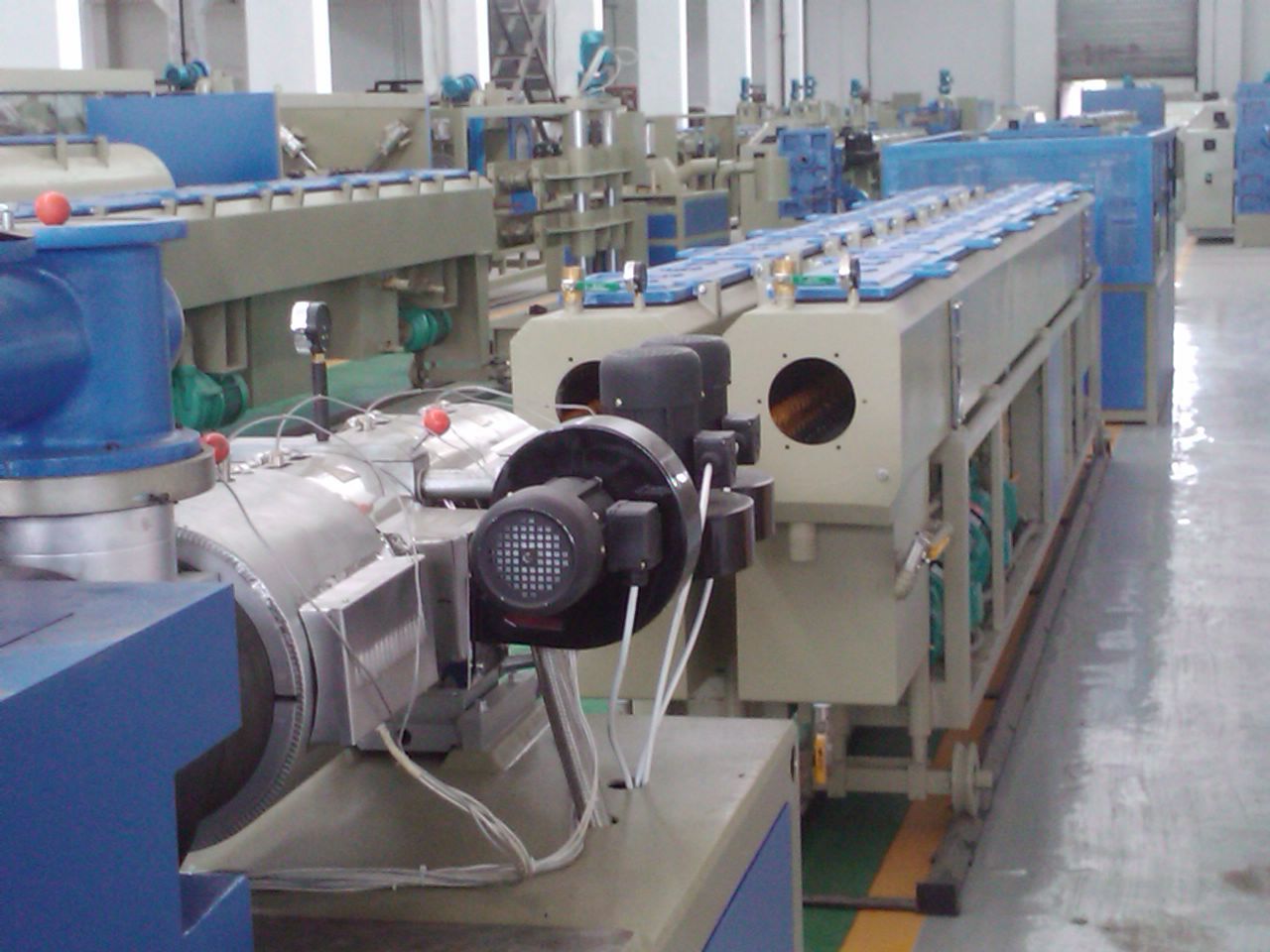

Double screw extruder PVC Twin Pipe Production Line
1. PVC double pipe production line is mainly used for producing PVC conduit pipe, diameter from 16mm to 50mm.
2. It consists of SJSZ series extruder, double pipe mold, double pipe vacuum tank, double pipe drawing and cutting machine, stacker.
3. It can produce two pipes at one time to achieve high production effiency.
4. The screw of the host extruder adopt the oil cooling system, barrel temperature control though the air cooling and ring heater.
5. The host extruder using the electrical control system, ABB speed governor, Japanese RKC temperature controller, SIMENS contactor and so on.
6. Our company may allocate the special installation for the manufacture of the inner wall spiral coil and coreply blister tube set according to the clients requirements.
7. The machine units can produce the pipe scope: 16-50mm
| Main Machine |
Twin-Screw Extruder |
Diameter of Twin Pipe
( mm ) | 16-50 |
Capacity
( kg/h ) | 120-200 |
| Drawing Line Velocity( m/min ) | 2-12 |
Drawing Line Power
( kw ) | 2*1.5 |
Cutting Power
( kw ) | 2*0.75 |
| Rotational Speed of Cutter( r/min ) | 2820 |
| Cooling Mode | atomizing water-cooling |
Air Pipe Pressure
( Mpa ) | 0.4-0.6 |
| Length of Unloading Table( mm ) | 6000 |
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
