Home Mould Products Drill Bushing for Injection Mould Machine (3*2.5*50)

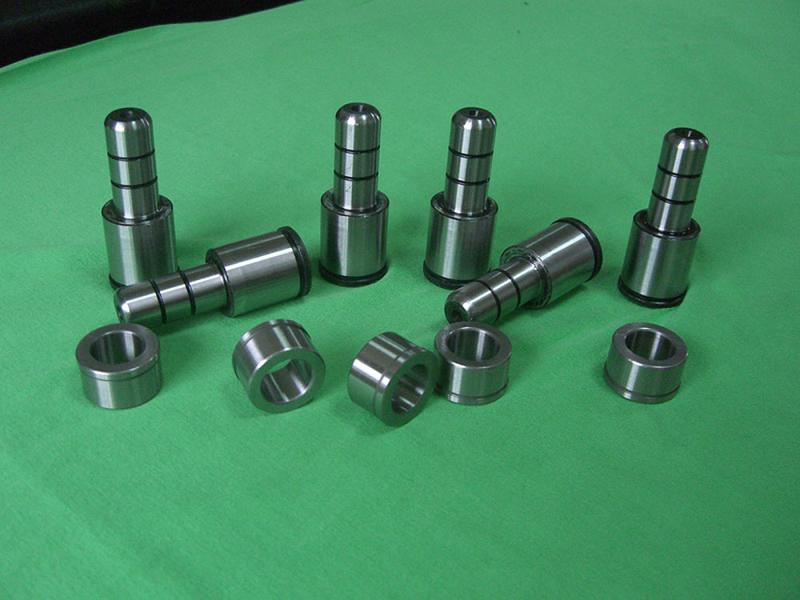

Drill Bushing for Injection Mould Machine (3*2.5*50)

Drill Bushing for Injection Mould Machine (3*2.5*50)
Price: US $ 0.3-4.5/Piece
Trade Terms: CIF
Min Order: 1000/Piece
Pay Type: T/T,Paypal
Press fit jig bushes drill bushing with shoulder Material: SUJ2, SKD61, SC45

Hardness: HRC40-50.

Used for mould to fit with guide post, also use for other machinery part.
Diameter Head Head thickness L1  / L2  ( 0 / -0.5 )
D1(g6) D2 (0/-0, 2) K ( 0 / -0.2 ) 50 60 70 80 90 100 110 120 130 140 150 160
      13 15 20 25 30
10 14 5
12 16
14 18
16 20
18 22
20 24 6
25 30 7
32 37
40 45 8
50 55 10
Prod Model: 3*2.5*50
Markets: North America,South America,Southeast Asia,Mid East,Eastern Asia,Western Europe
Type: Cutter
Material: Ceramics
Work Type: Cut Off
Spring Die Mould Part Industry Company Limited., found in 1997.It located in the downtown of Ningbo.It is about 3 kms to Beilun port.It takes just 3 hours drive to Shanghai through Hangzhou Bay crossing Bridge.

Spring Die Mould Part Company is the membership of Zhejiang Machinery association.That specialized in producing and selling mould accessories and various hardwares.There are 105 workers in our place, include 8 technicians.Our products such as fastener, springs ISO10243&JIS standard, HSS punch, guide post, some stamping parts, hand tools and CNC machines parts.

We have full set of testing equipments and heat-treatment furnace, that can control the quality meet or over customers' requirement.Moreover, we have our close cooperating material suppliers, own factories and logistics team.Majority have more than 10 years' experience in this field.So price and delivery are our strong points always.Our company passed certificate ISO9001-2000 in 2003.For high-precision parts, we can control the tolerance within 0.0015mm.After over 10 years work, Our products are best selling to America, Italy, Spain, India, Turkey and Egypt markets.

In the future, we will get everyone's effort to work with customers continuously, develop with customers together base on the principle of equality and mutual benefit.Pls don't hesitate to contact us for further information.
