Product Description:

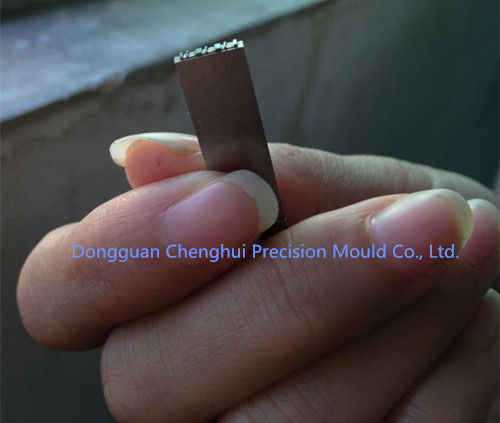

Product name:Precision Plastic connector mould components
1. Material using : imported SKD11,SKH9,Elmax,Viking, or others
2. Size ; According customer requirement
3. Hardness:58-60 HRC
4. EDM Precision: 0.002MM
5. Surface Grinding Precision : 0.002MM
6. Surface Roughness for EDM reach to Ra0.1 even mirror surface
7. Angle Clearness<0.05
8. OEM service
9. MOQ:1 PC acceptable
Advantage
1. Imported high-class material from america, Japan, Sweden, etc. prolong your mould lifespan..
2. Our talent: 60 professional and skilled technicians and 10 master of optical profile grinding ,CNC milling, mirror EDM, wire EDM.
3. our process skills are be industry leadership in mould machining field such as EDM and PG optical profile grinding.
4. Chenghui Precision Mould have experienced engineer and offer advanced R&D service, your inquire would get prompt responses within 24 hours.
5. High Speed CNC (Switzerland Mikron 500LP ) milling machines mainly make the electrodes and precise cubic curve product, machining variety of precision parts own excellent effect.With high precision electrode perfectly ensures EDM precision, quality and fast delivery.
6. Sodick EDM machines make us possible to ensure EDM accuracy within 0.005mm.For special parts surface roughness , Chenghui Precision Mould could handle the Sodick EDM machines, which reach to from Ra 0.15 to mirror surface.
7. Sodick and Seibu wire-cutting EDM, Sodick oil cutting EDM machines,linear motor drive, with newly narrow-gap discharge circuit, ensure accuracy within 0.005mm, flatness,verticality,and linearity within 0.002mm.
8. ISO 9001:2008 system certificated and operated.
9. Quick response whatever require or aftersale and timly delivery
Equipment list for Precision Connector mould parts
Plastic Mould Department |
Seedtec grinder |
Taiwan |
614S |
+/-0.001 |
6 |
Agie Charmiles E.D.M. |
Switzerland |
FORM20 |
+/-0.002 |
2 |
Sodick E.D.M |
Japan |
AD30LS |
+/-0.002 |
3 |
J/G Coordinate Grinder |
Switzerland |
700*500/HAUSER |
+/-0.002 |
1 |
Sodick wire cutting EDM |
Japan |
AQ400LS |
+/-0.002 |
2 |
Seibu wire cutting EDM |
Japan |
MM50A |
+/-0.002 |
3 |
Quality Control Department |
Optical Projector |
Japan |
Nikon |
+/-0.001 |
2 |
High gauge |
Switzerland |
200/400/SYLVAC |
+/-0.001 |
1 |
Comparator tester |
Japan |
Nikon |
+/-0.001 |
7 |
Hardness tester |
China |
|
|
1 |
2.5-diemension altimeter |
china |
Wanhao |
+/-0.001 |
1 |
Microcalliper |
Japan |
Sanfeng |
+/-0.001 |
8 |
Dongguan Chenghui Precision Mould specialized in high precision and high quality various types of injection mold, Metal mould precision mold parts processing such as LED mould ,Medical mould, Camera mould, lenses mould , We are located in Changan town Dong guan City, the center of Chinese mould industry.
With the most advanced equipment Switzerland Mikron High Speed CNC (Mikronhsm 500LP) ,Japan Sodick AD30Ls EDM,WAIDA SPG type R-type CNC optical projection grinder, Sodick AQ400, corollary equipment such as J/G cornidates grinder, precision EDM, flat surface grinder, we produce quality products for our customers at fair and competitive prices .
We have more 60 professional and skilled technicians.Also, masters of P/G ,high speed CNC, mirror discharge ,precision grinding wire-cutting are more than five years running and processing experiences in foreign-owned enterprise.
We sincerely invite you to visit our factory at your earliest convenience. You will be able to gain further insight into the scope of our company, our quality control procedures, advanced production machinery . It will also be a win-win for us to develop both side business cooperation.
