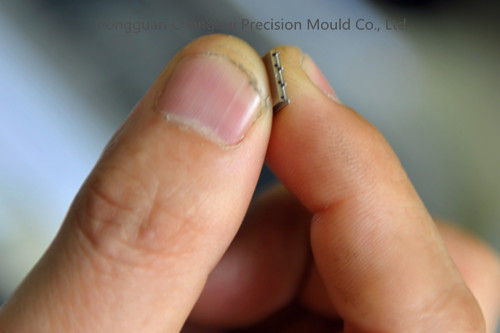

Precision Connector mould parts for electrical injection mould
Material using |
imported SKD11 |
Size |
According customer drawing |
Hardness |
50-60 HRC |
Treatment |
According customer require |
Grinding Precision |
0.002MM |
EDM Precision | 0.002MM |
| Surface Roughness for EDM | reach to Ra 0.1 even mirror surface |
Angle Clearness |
<0.05 |
MOQ |
1 set |
Origin of Material |
America ,Japan, Sweden |
Process machine |
High speed , EDM, wire cut, miller |
Delivery date |
7-10 days |
Delivery type |
Express |
Our talent and equipment servce
Chenghui Precision Mould have more than 60 professional and skilled technicians ;10 master of optical profile grinding ,CNC milling, mirror EDM, wire EDM who were more than five years experiences working in foreign-owned enterprise. These talents ensure our product satisfy customer requirement quickly and our process skills are be industry leadership in mould machining field such as EDM and PG optical profile grinding.
Three sets Sodick wire-cutting EDM and one Sodick oil cutting EDM machines, they ensure general tolerance within 0.005mm, flatness,verticality,and linearity within 0.002mm.The smallest wire of machine is 0.03mm.
High Speed CNC (Switzerland Mikron 500LP ) milling machines that are mainly used to make the electrodes and precise cubic curve product, which precision can reach to 0.002mm. With high precision electrode perfectly ensures EDM precision, quality and fast delivery
Sodick EDM machines make us possible to ensure EDM precision within 0.005mm.For some parts that require special surface roughness, Chenghui Precision Mould could handle using the Sodick EDM machines, which reach to from Ra0.15 to mirror surface.
FAQ
Q1 What type of company?
We are precision mould mould maker factory.
Q2 Can you make high precision mould according samples or drawings?
Yes, we can produce them with talent and advanced equipment ; precision reach to 0.001mm.
Cooperate with us
I warmly invite you to visit our factory at your convenience. Audit and evluate our advanced equipment and process technical, you will find our capability and quality control system. It will also be a win-win for us to develop long-term cooperation.
Dongguan Chenghui Precision Mould specialized in high precision and high quality various types of injection mold, Metal mould precision mold parts processing such as LED mould ,Medical mould, Camera mould, lenses mould , We are located in Changan town Dong guan City, the center of Chinese mould industry.
With the most advanced equipment Switzerland Mikron High Speed CNC (Mikronhsm 500LP) ,Japan Sodick AD30Ls EDM,WAIDA SPG type R-type CNC optical projection grinder, Sodick AQ400, corollary equipment such as J/G cornidates grinder, precision EDM, flat surface grinder, we produce quality products for our customers at fair and competitive prices .
We have more 60 professional and skilled technicians.Also, masters of P/G ,high speed CNC, mirror discharge ,precision grinding wire-cutting are more than five years running and processing experiences in foreign-owned enterprise.
We sincerely invite you to visit our factory at your earliest convenience. You will be able to gain further insight into the scope of our company, our quality control procedures, advanced production machinery . It will also be a win-win for us to develop both side business cooperation.
