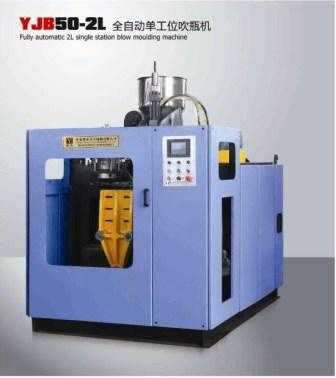

2L Extrusion Blow Molding Machine
Applicable Material PE, PP...
Max. Product Volume One die head for 2L
Dry Cycle 2000 PCS/h
Machine Size 2.4× 1.5× 2 (M)
Machine Weight 2850KG
Total Power 23KW
Power Consumption 12.2KW/H
Machine Barrel Screw 50mm, L/D=22,
Plasticizing 35Kg/H
Extrusion Motor three phase (380V, 50Hz), 11KW
Cooling fan 3 zones 85W
Max. Dia. Of Die Head 100mm
Clamping Force 30KN
Mold Move Stroke 128~368mm
Platen Dimension W× H: 300× 320mm,
Mold thickness range 140~200(mm)
Oil pump motor three phase a synchronism (380V, 50Hz), 5.5KW
Hydraulic valve imported hydraulic components
System pressure 100kg/CM2
Cooling Mode Water cool and oil cooler separately
Air Pressure 0.7Mpa
Air Consumption 0.3M3/min
Water Consumption 30L/min
Water Pressure 0.2-0.6MPa
|
Basic Parameter |
|
Applicable Material |
PE, PP.... |
|
Max. Product Volume |
One die head for 2L |
|
Dry Cycle |
2000 pcs/h |
|
Machine Size (L×W×H) |
2.4×1.5×2 (M) |
|
Machine Weight |
2850KG |
|
Total Power |
23KW |
|
Power Consumption |
12.2KW/H |
|
Plasticizing System |
|
Specification |
good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
|
Speed Reducer |
hard-teeth, low noise & wear-resistant speed reducer |
|
Machine Barrel Screw |
50mm,L/D=22, 38CrMoALA high quality nitrogen steel |
|
Plasticizing |
35Kg/H |
|
Heating Zone |
3 Zone Casting, aluminum heater |
|
Heating Power |
8.2KW |
|
Extrusion Motor |
three phase asynchronism motor (380V\50HZ),11KW |
|
Cooling fan |
3 zones 85W |
|
Extrusion System |
|
Specification |
One head |
|
Max. Dia. of Die Head |
100mm |
|
Heating Zone |
3 zone heat coil of stainless steel |
|
Heating Power |
4.5 KW |
|
Die Heat Huff |
Pressure and capacity can be adjusted |
|
Preform Adjustment |
By manual |
|
Open and Clamping System |
|
Clamping Force |
30KN |
|
Mold Move Stroke |
128~368mm |
|
Platen Dimension |
W×H:300×320mm, |
|
Mold thickness range |
140~200(mm) |
|
Electric Control System |
|
Specification |
Standard PLC and colorful touch screen for blow molding machine |
|
Touch Screen |
Colorful touch screen, auto alarm, diagnose the system |
|
Temperature Control |
Self-regulation |
|
Temperature Module |
TaiwanI-7018RP automatic temperature module, digital |
|
Action control |
Japan Mitsubishi, programmable |
|
Protection Function |
Automatic alert and breakdown feedback double protection of mechanical apparatus |
|
Hydraulic System |
|
Specification |
Proportion pressure controller changing direction quickly and softly |
|
Oil pump motor |
three phase a synchronism (380V\50HZ),5.5KW |
|
Hydraulic pump |
Vane pump |
|
Hydraulic valve |
imported hydraulic components |
|
System pressure |
100kg/CM 2 |
|
Pipes |
Bilayerhigh pressureblast pipes |
|
Cooling Mode |
Water cool and oil cooler separately |
|
Pneumatic System |
|
Specification |
imported famous brand pneumatic pressure |
|
Air Pressure |
0.7Mpa |
|
Air Consumption |
0.3M 3 /min |
|
Cooling System |
|
Specification |
mold\barrel\oil box adopt independentcooling waterway |
|
Cooling Medium |
water |
|
Water Consumption |
30L/min |
|
Water Pressure |
0.2-0.6MPa |
|
Parison controller system (Optional) |
|
Specification |
Parison programmer is used to control the thickness of the bottle in high precision, it is a optional system for blow molding machine.
Japan MOOG 100points can be adopt to the machine |
