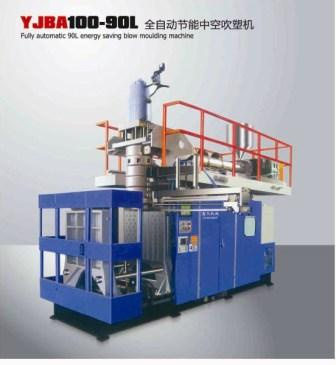

Extrusion blow moulding machine YJBA100-90L
Product Name: Automatic Blow Moulding Machine (YJBA100-90L)
Features:
1) Accumulator die head with parison control system
2)Maximum capacity: 90L
3) Screw diameter: 100mm
4) Controlled by Japanese MITSUBISHI PLC
5) Temperature controlled model
6) Interactive bilingual monitor with machine-human interface
7) Excellent imported hydraulic elements and electric elements
8) Proportional control
9) Design on Accumulator Head with Adjustable Core for Blow Moulding
10) Hard gear surface reducer
Technical parameters:
Main Parameters of YJBA100-90L
Max. Product Volume: 90(L)
Dry Cycle: 360(PCS/h)
Screw Diameter: 100(mm)
Screw L/D Ratio: 25(L/D)
Screw Drive Power: 45(KW)
Screw heating Power: 24(4Φ KW)
Screw Heating Zone: 4(Zone)
HPDE Output: 180(kg/h)
Oil Pump Power: 22(KW)
Clamping Force: 400(KN)
Mold Stroke: 550-1350(mm)
Max. Mold Size: 1000× 1000(W× H)(mm)
Accumulator Capacity: 12(L)
Max. Die Diameter: 430(mm)
Die Heating Power: 20(4Φ KW)
NO. Of Heating Zone: 5(Zone)
Blowing Pressure: 0.8(MPa)
Air Consumption: 1.2(M3/min)
Cooling Water Pressure: 0.3(MPa)
Water Consumption: 100(L/min)
Machine Size: 5.5× 2.8× 4.5(L× W× H)(m)
Machine Weight: 16(Ton)
Zhangjiagang Yijiu machinery Co., Ltd is located in the new river port city-Zhangjiagang, with neighboring Shanghai in south, Yangtze River in north and Jiangyin Yangtze Bridge in west. As leading China blow molding machine manufacturer, We produce blow mold machine and Plastic molds. The transportation system is quite advanced with two connecting belts- coastal high way and G204 across the city.
We positively combined the advanced technology and theory to design, manufacture and sell fully automatic extrusion blow molding machine of 3 series and over 20 types.
Our machine is suitable to make 5ml to 200L bottles, drums, cans, containers, toolboxes, oil tank, special-shape automobile parts with the material PE\PP\PVC\PETG\PS\EVA\EVOH\PVDC\ABS\TPE\TPU. etc.
Because of our high quality, dependable performance and competitive price, our machines are bestselling in more than twenty provinces and also exported to many countries in Southeast Asia, Middle East, Middle Asia, Russia and South Africa, All of our clients give high reputations for our machines and services.
To be honest and innovative is the eternal spirit of Yijiu Machinery. We aim to provide our customers and partners high quality machines and top rank after sale service to help them to create more value in the competitive market.
No matter where you are, we speak your words. We are ready to spare no efforts to explore the future by our joint efforts.
Welcome to Yijiu Machinery!
