220L blow molding machine

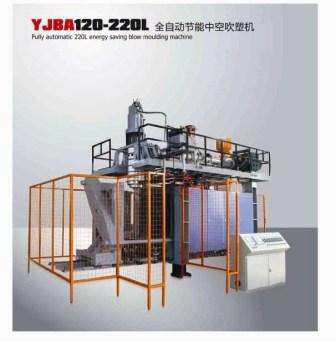

YJBA120-220L, This single station machine is equipped with accumulator die head, for the production of articles for 120liter to 160liters made out of PE, PP and HMWPE, especially suitable for making L-ring drum, suiting for the packaging of petroleum, chemicals products, toys, tech-and auto-parts. This machine is designed for producing high quality, bigger size and complex parts.
For containers from 120L up to 220L
Suitable for making L-ring container
With 25L accumulator head
Max clamping force 800KN
Linear rolling motion guider equipped
Easily operation by PLC+touch screen
Imported hydraulic component
Energy saving hydraulic design
Equipped with take out robot
Parison programmer can be adopt
Multi-functional bottom blow mechanism
Servo motor can be equipped
|
Basic Parameter |
|
Applicable Material |
PE, PP, ... |
|
Max. Product Volume |
220L |
|
Dry Cycle |
280 PCs/h |
|
Machine Size (L× W× H) |
7.8× 3.5× 5.8(M) |
|
Machine Weight |
30T |
|
Total Power |
236KW |
|
Power Consumption |
128KW/H |
|
Plasticizing System |
|
Specification |
good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
|
Speed Reducer |
hard-teeth, low noise & wear-resistant speed reducer |
|
Machine Barrel Screw |
120mm, L/D=30, 38CrMoALA high quality nitrogen steel |
|
Plasticizing |
350Kg/H |
|
Heating Zone |
6 Zone Casting, aluminum heater |
|
Heating Power |
135W |
|
Extrusion Motor |
three phase DC motor (380V\50HZ), 110KW |
|
Lifting system |
Four turbo lifting |
|
Extrusion System |
|
Specification |
Accumulator die head |
|
Die Head |
38CrMoALA high quality nitrogen steel |
|
Accumulator capacity |
22Lwith weight 15kg |
|
Max. Dia. of Die Head |
550mm |
|
Heating Zone |
30kw |
|
Parison adjust |
Core can be move up and down |
|
Open and Clamping System |
|
Specification |
Gear wheel and rack in-phase aim at twin shaft clamping device, and cylinder |
|
Clamping Force |
800KN |
|
Mold Move Stroke |
700~1600mm |
|
Mold platen Dimension |
W× H: 1100× 1550mm, three sets of holes in the mold platen for installing the mold |
|
Method of install mold to platen |
M24 screw |
|
Electric Control System |
|
Specification |
Standard PLC and colorful touch screen for blow molding machine |
|
Touch Screen |
Colorful touch screen, auto alarm, diagnose the system |
|
Temperature controller |
JapanOmron |
|
Action control |
Japan Mitsubishi, programmable PLC |
|
Protection Function |
Automatic alert and breakdown feedback double protection of mechanical apparatus |
|
Hydraulic System |
|
Specification |
Proportion pressure controller changing direction quickly and softly |
|
Oil pump motor |
three phase a synchronism (380V\50HZ), 55KW |
|
Hydraulic pump |
Variable pump YUKEN |
|
Hydraulic valve |
imported hydraulic components |
|
System pressure |
100kg/CM 2 |
|
Pipes |
Bilayer high pressureblast pipes |
|
Cooling Mode |
Water cool and oil cooler separately |
|
Pneumatic System |
|
Specification |
imported famous brand pneumatic pressure |
|
Air Pressure |
0.6Mpa |
|
Air Consumption |
0.8M 3 /min |
|
Valve |
GERMANYFESTO |
|
Cooling System |
|
Specification |
mold\barrel\oil box adopt independentcooling waterway |
|
Cooling Medium |
water |
|
Water Consumption |
300L/min |
|
Water Pressure |
0.3-0.6MPa |
|
Blowing method |
Multi functional bottom blow mechanism |
|
Parison programmer |
JapanMOOG 100 POINTS |
Configuration of Blow Molding Machine
ELECTRICAL PARTS
|
COMPONENT |
SUPPLIERS |
MICROCOMPUTER CONTROL SYSTEM
|
JAPAN MITSUBISHI PLC
|
|
TOUCH SCREEN |
TAIWAN HITECH TOUCH SCREEN
(COLORFUL, BILINGUAL) |
|
TEMPERATURE CONTROLLER |
JAPAN OMRON |
|
PROXIMITY SWITCH |
TAIWAN RIKO |
|
CONTACTOR |
FRANCESCHNEIDER |
|
SWITCH |
FRANCESCHNEIDER |
|
MOTOR |
TO BE CONFIRM |
|
POWER RESOURCE |
TAIWAN MEAN WELL |
|
TRANSDUCER |
UKPARKER |
HYDRAULIC PARTS
|
COMPONENT |
SUPPLIERS |
|
OIL PUMP |
JAPANYUKEN |
|
HYDRAULIC VALVE |
JAPANYUKEN |
|
SEALING |
HONG KONGSEAL& O-RING |
PNEUMATIC & PARISON CONTROL PARTS
|
COMPONENT |
SUPPLIERS |
|
AIR VALVE |
GERMANYFESTO |
PARISON PROGRAMMER
|
COMPONENT |
SUPPLIERS |
|
PARISON PROGRAMMER |
JapanMOOG 100 POINTS |
ROBOT
|
COMPONENT |
SUPPLIERS |
|
Air cylinder |
GERMAN FESTO |
