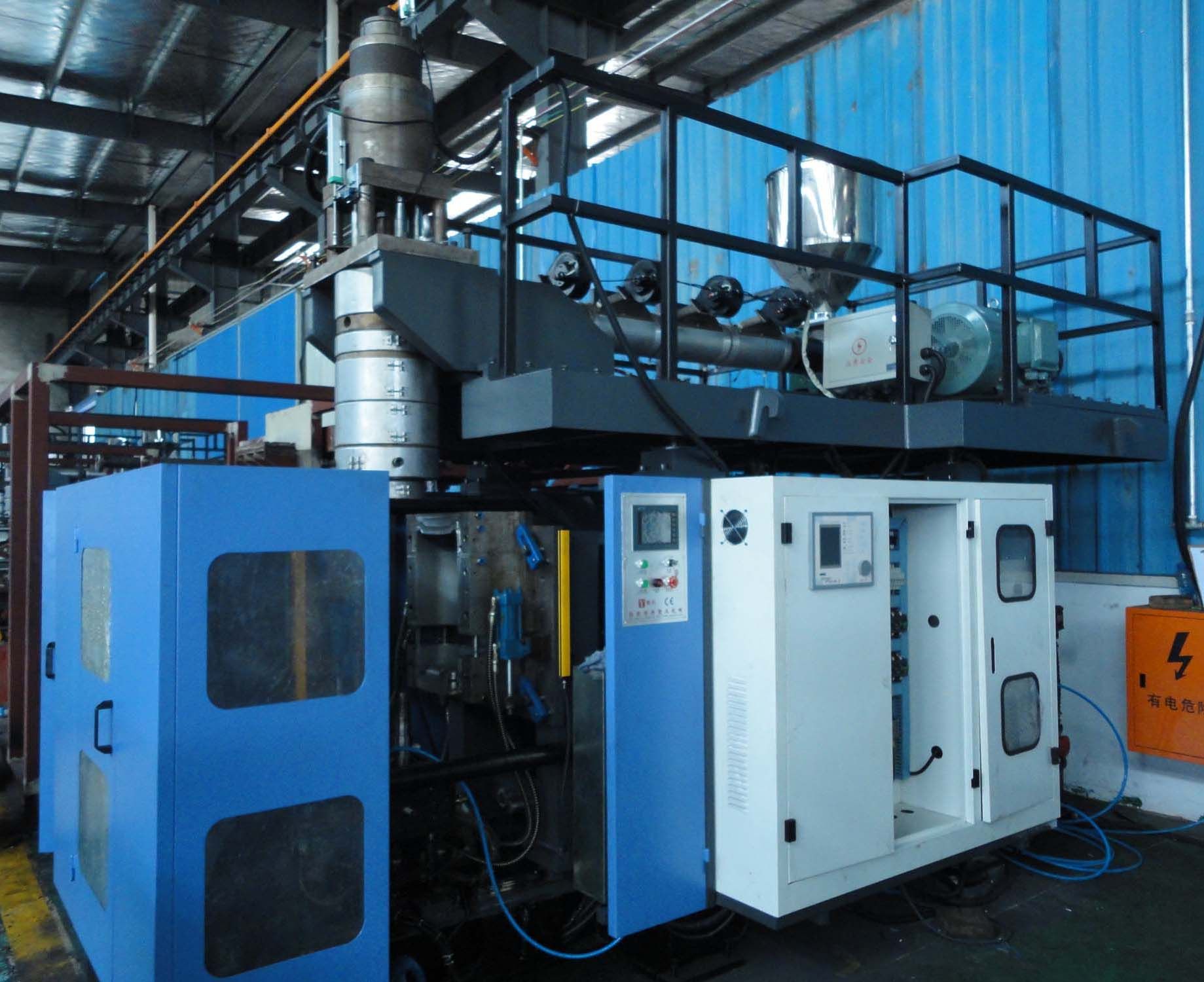

30L Blow Molding Machine
YJBA80-30L, This single station machine is equiped with accumulator die head, for the production of articles for 10liter to 30liters made out of PE and PP, suiting for the packaging of petroleum, chemicals products, toys, tech-and auto-parts. This machine is designed for producing high quality, bigger size and complex parts.
For containers from 10L up to 30L
With 4L accumulator head
Max clamping force 180KN
Linear rolling motion guider equipped
Easily operation by PLC+touch screen
Imported hydraulic component
Energy saving hydraulic design
Equiped with take out robot
Parison programmer can be adopt
Multi-functional bottom blow mechanism
Servo motor can be equiped
Basic Parameter |
Applicable Material |
PE, PP,..... |
Max. Product Volume |
30L |
Dry Cycle |
650 pcs/h |
Machine Size (L×W×H) |
4.23×2.3×3.5 (M) |
Machine Weight |
11.5T |
Total Power |
74KW |
Power Consumption |
32KW/H |
Plasticizing System |
Specification |
good plasticizing capability, high output, transducer adjust speed, collect temperature-control signals to prevent the screw from cold starting |
Speed Reducer |
hard-teeth, low noise & wear-resistant speed reducer |
Machine Barrel Screw |
80mm,L/D=24, 38CrMoALA high quality nitrogen steel |
Plasticizing |
100Kg/H |
Heating Zone |
4 Zone Casting, aluminum heater |
Heating Power |
16K W |
Extrusion Motor |
three phase asynchronism motor (380V\50HZ),30KW |
Cooling fan |
3 zones 85W |
Extrusion System |
Specification |
Accumulator die head |
Die Head |
38CrMoALA high quality nitrogen steel |
Max. Dia. of Die Head |
300mm |
Heating Zone |
4 zone heat coil of stainless steel |
Accumulator capacity |
4L |
Heating Power |
11.9 KW |
Die Heat Huff |
Pressure and capacity can be adjusted |
Preform Adjustment |
Automatic |
Heat insulation |
By heat insulating board between accumulator and hydraulic cylinder |
Open and Clamping System |
Specification |
Linear rolling guide , three tie bar and three cylinder |
Clamping Force |
220KN |
Mold Move Stroke |
400~900mm |
Max. Mold Platen |
W×H:600×700mm, |
Electric Control System |
Specification |
Standard PLC and colorful touch screen for blow molding machine |
Touch Screen |
Colorful touch screen, auto alarm, diagnose the system |
Temperature Control |
Self-regulation |
Temperature Module |
MITSUBISHI automatic temperature module, digital |
Action control |
Japan Mitsubishi, programmable |
Protection Function |
Automatic alert and breakdown feedback double protection of mechanical apparatus |
Hydraulic System |
Specification |
Proportion pressure controller changing direction quickly and softly |
Oil pump motor |
three phase a synchronism (380V\50HZ),15KW |
Hydraulic pump |
Vane pump |
Hydraulic valve |
imported hydraulic components |
System pressure |
100kg/CM2 |
Pipes |
Bilayer high pressure blast pipes |
Cooling Mode |
Water cool and oil cooler separately |
Pneumatic System |
Specification |
imported famous brand pneumatic pressure |
Air Pressure |
0.6Mpa |
Air Consumption |
0.8M3/min |
Valve |
TAIWAI AIRTAC |
Cooling System |
Specification |
mold\barrel\oil box adopt independent cooling waterway |
Cooling Medium |
water |
Water Consumption |
50L/min |
Water Pressure |
0.2-0.6MPa |
Thickness control system |
Parison programmer |
Japan MOOG 100 points |
Servo valve |
Japan MOOG |
Sensor |
ItalyGefran |
Take out Robot |
Pneumatic Cylinder |
Germany FESTO non-rod pneumatic cylinder |
Bottom blow mechanism |
Bottom blow |
Ready for X-Y-Z expand material and blow |
Component of YJBA80-30L
COMPONENT |
SUPPLIERS |
MICROCOMPUTER CONTROL SYSTEM |
JAPAN MITSUBISHI PLC |
TOUCH SCREEN |
TAIWANHITECH TOUCH SCREEN |
TEMPERATURE MODULE |
TAIWAN7018RP |
PROXIMITY SWITCH |
TAIWAN RIKO |
CONTACTOR |
FRANCESCHNEIDER |
AIRBREAK SWITCH |
FRANCESCHNEIDER |
MOTOR |
SIEMENS BEIDE THREE PHASE MOTOR |
INVERTER |
TAIWANDELTA |
OIL PUMP |
TAIWANHIGHTECH |
HYDRAULIC VALVE |
TAIWANNORTHMAN |
PNEUMATIC VALVE |
TAIWAN AIRTAC |
PARISON PROGRAMMER |
JAPANMOOG 100 POINTS |
SERVO VALVE |
JAPAN MOOG |
