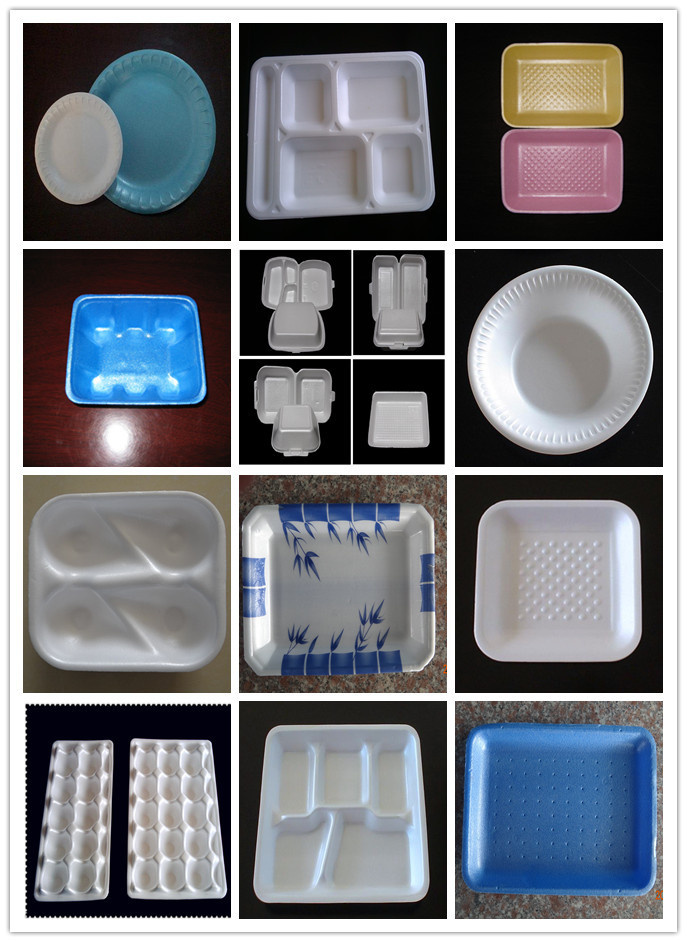

fast food box machine of ps foam polystyrene

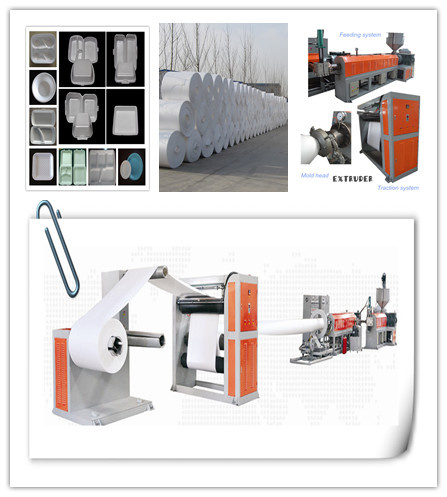

a.ps foam sheet extrusion line
General Polystyrene Granule (GPPS) with additive are mixed in feeding sysytem,
then go into No.1 Extruder---Inject foaming agent--After filter changer, material go into N0.2 Extruder--Extruded from mold head --Cooling and Shaping--Hauling off--Winding --Finished Products-Packing.

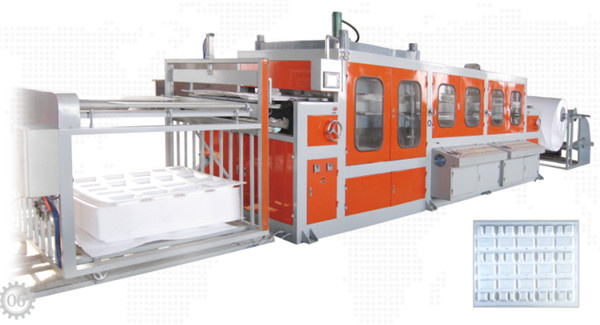

b.vacuum forming machine
Plastic Machine Vacuum Forming Machine adopts the international newest plastic sheet forming
technologywith computer digital forming system and PLC electromechanical integration full-
automatic control. The touch screen can control all action system.
PS foam Sheet roller→ standing frame→IR ceramic heater Heating→
Vacuum molding→Cutting each cycle→collecting to cutting machine
c.cutting machine
Parameter of the machine |
Item | unit | HY-1100/1350x2 |
Cutting area | mm | 1100x1350 |
Cutting height | mm | 150 |
Cutting speed | s/die | 3--8 |
Installed power | kw | 15 |
Cooling water pressure | Mpa | 0.2 |
Installation size | m | 8x5x3 |
Cutting presure | T | 120 |
Haiyuan Plastic Machinery Co., Ltd is professional in manufacturing PS foam fast food box(one time dishes) production line and plastic package machinery. Meanwhile, we are the supplier of PS fast food boxes and food trays to some chain supermarkets in domestic and aboard. With strong technical strength and abundant experience, basis on advanced technology from domestic and abroad, we have successfully developed and produced various equipments...Haiyuan sincerely welcome the friends all over the world to visit us!
