Fine Copper Wire Drawing Machine (22 DW)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |

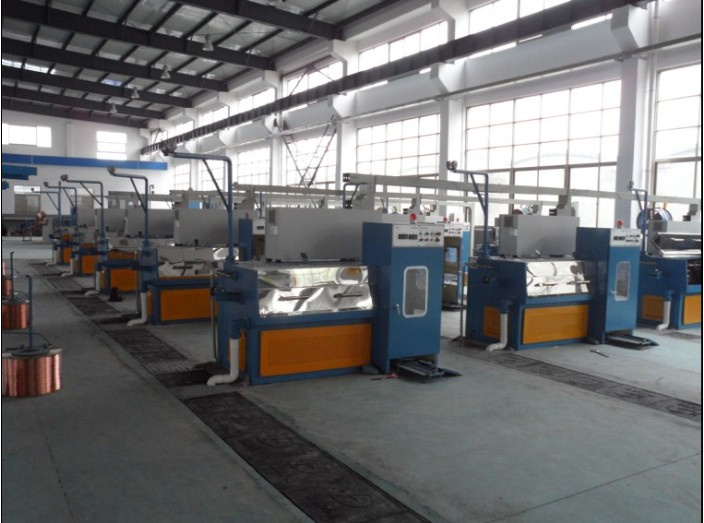

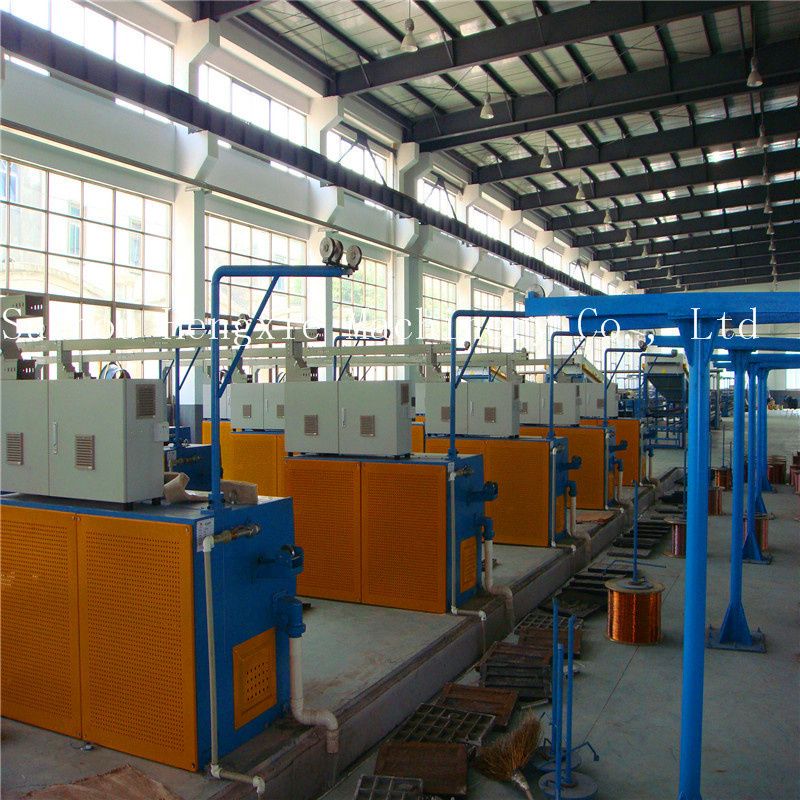

HXE-22DW Fine copper wire drawing machine
Max. Inlet diameter(mm) 1.20-0.60
Outlte diameter range(mm) 0.10~0.32
Max. Mechanical speed(m/min) 2500
Max. Drawing cone diameter(mm) 242
Fix speed cone diameter(mm) 206
Number of dies Max 22
Mechanical elongation 8%; 15%
Main motor power(kw)15
Spooler motor power(kw) 3.7
Standard spooler PND300
Spool capacity(kg) Max 50
Power supply(V) AC 3*380(-5%+10%)
Frequency (Hz) 50/60Hz
Traverse method By Flat
Cooling method Spray
Brake method: Electromagnetic brake
Capstan: Ceramic coated
Prod Model: |
22 DW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Condition: |
New |
Inlet Diameter: |
0.6-1.2mm |
Outlet Diameter: |
0.1mm-0,.32mm |
Size: |
2300*1300*1800 |
Machine Weight: |
2200kg |
Warranty: |
1year |
After Service: |
Engineer Available to Overseas |
Type: |
Horizontal Metal Drawing Machine |
Usage: |
Rope Wire |
Max.Inlet Wire Dia.: |
0.6mm-1.2mm |
Max. Number Of Block: |
22 |
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
