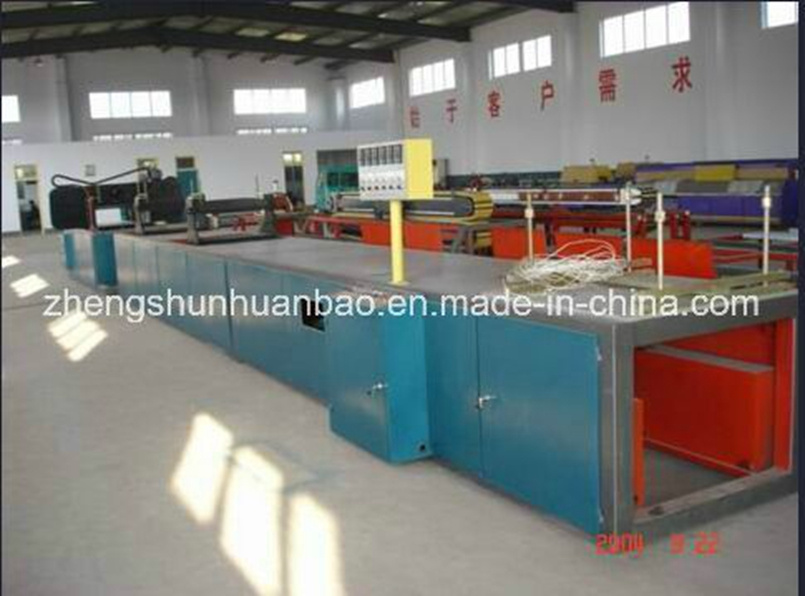

A. Equipment characteristics:
Temperature control adopts OMRON tem-control module, 8" touch screen displaying
Traction force, traction speed touch screen displaying
Sealing elements of hydraulic cylinder is imported, every traction head has separate hydraulic system.
Hydraulic traction device is auto or manual. The traction speed and clamping force is adjustable.
Traction machine has the pause function and easy to clean the mould.
The equipment plate does spurts models processing.
B. Technical parameter:
Roving racks: Dimension 2000mmx600mmx2000mm (5 layers)
Number of rolls: 105
Resin bath: 3 layers
1. Calibrating table
Calibrating table plate: 1200mmx1200mm
Temperature zones: 24
Heating plate (optional):
Dimension: ≈ 3mx1.6mx1.9m
2. Traction machine
Number of traction head: 3
Clamping scope: 1000mmx300mm
Max traction force: 500KN
Traction speed: 0.05-0.5m/min
Clamping force of traction head: 500KN
Clamping journey: ∮200X500mm
Clamping cylinder: ∮140x50mm
Power of cylinder: 5.5x3KW 380V/50Hz
Oil temperature cooling: Circulating cooling water water pressure>1.5bar
Dimension: ≈ 10.5mx1.6mx2.2m
3. Cutting saw
Cutting scope: 1000mmx250mm
Tracing cutting, free length fixed
Diameter of cutting blade: ∮600/50
Rotation speed of saw: 1450r/min
Cutting feed adopts variable frequency motor, planetary reducer and gear driving.
Vacuum cleaner with power 2.2KW
C. Main components configuration
1. Electric elements
8' touch screen, PLC and tem-control module are all from Omron, Japan.
Electric heating control adopts contactless heating (solid-state relay).
General controlling elements use import brand.
2. Hydraulic components
Hydraulic pump adopts V38 variable piston pump.
Hydraulic change valve is from NORTH MAN, Taiwan
Speed regulating valve is DAKIN, Japan.
| No. | Name | Quantity |
| 1 | conical twin-screw extruder | 1 set |
| 2 | vacuum calibration device | 1 set |
| 3 | track type tractor | 1 set |
| 4 | cutter | 1 set |
| 5 | turn-over stacker | 1 set |
AC motor, ABB frequency converter |
Low-voltage apparatus |
general electric control cabinet |
Buttons, toggle switches |
Schneider, France |
Contactors |
SIMENS products |
Air switches |
DELIXI |
Intermediate relays |
OMRON |
Temperature controller |
RKC, Japan |
Heating ring |
stainless steel cast aluminum heater |
