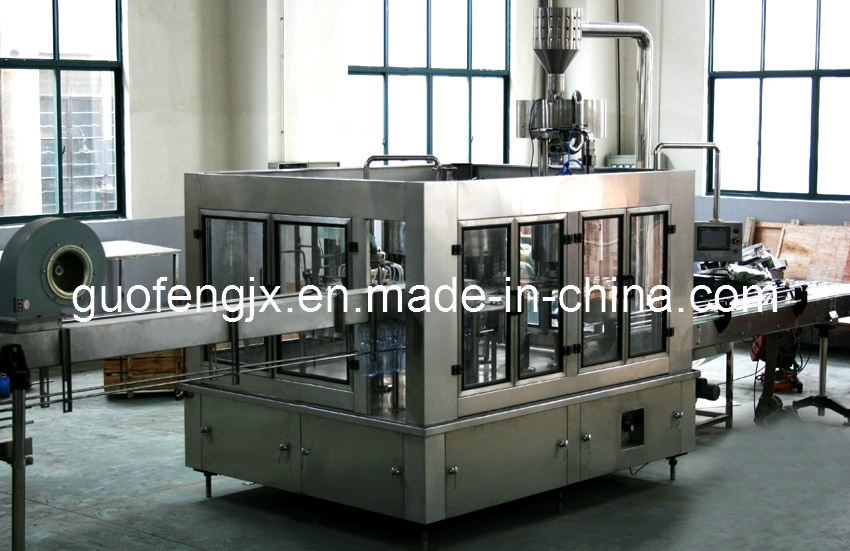

Full Automatic Washing/Filling and Capping 3 in 1 Machine (XGF)
Usage:
The filling machine is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on. Bottle washing, filling and capping are achieved in one machine. The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.
Characteristics:
It adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving. The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi\Omron\Siemens, etc international famous products.
Main Technical Data
|
Model
|
XGF12125
|
XGF18186
|
XGF24248
|
XGF323210
|
XGF404012
|
XGF505012
|
XGF606015
|
XGF808020
|
Number of washing, filling and capping heads
|
12-12-5
|
18-18-6
|
24-24-8
|
32-32-10
|
40-40-12
|
50-50-12
|
60-60-15
|
80-80-20
|
Production capacity(600ml)
(B/H)
|
2000-4000
|
5000-7000
|
8000-12000
|
12000-15000
|
16000-20000
|
20000-24000
|
25000-30000
|
35000-40000
|
suitable bottle specification(mm)
|
φ=50-110=170 330-2250ml
|
Washing pressure(kg/cm 2 )
|
2-3
|
Motor power(kw)
|
Main motor
2.2kw
|
Main motor
2.2kw
|
Main motor
3kw
|
Main motor
5.5kw
|
Main motor
7.5kw
|
Main motor
11kw
|
Main motor
15kw
|
Main motor
19kw
|
Overall dimensions (mm)
|
2400×1650
×2500
|
2600×1920
×2550
|
3100×2300
×2800
|
3800×2800
×2900
|
4600×2800
×2900
|
5450×3300
×2900
|
6500×4500
×2900
|
76800×66400
×2850
|
Weight (kg)
|
2500
|
3500
|
4500
|
6500
|
8500
|
9800
|
12800
|
150
|
We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry and automatic blow molding machine in China.
For beverage machine, our Main products including:
The capacity of 5000-- 40000 BPH for HOT FILLING, MID-TEMP FILLING, ASEPTIC COLD FILLING LINES.
The capacity of 5000-- 40000 BPH for MINERAL WATER AND PURIFIED WATER PRODUCING LINE.
The capacity of 5000 -- 36000 BPH for CARBONATED BEVERAGE PRODUCTING LINE.
The capacity of 300 -- 2000 BPH for 3 gallon OR 5 gallon BARREL FILLING PRODUCTING LINE.
The capacity of 8000 BPH for the volume of 200ml to 500ml in MILK PACKAGING.
All kinds of WATER TREARMENT EQUIPMENT.
PET perform INJECT and BLOWING-STRETCHING MACHINE.
Mould plastics machine
Turn-key projects
Flat and tube UHT device, and CIP system.
All the products are sold well in every province and city of the whole country and also exported to several countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
