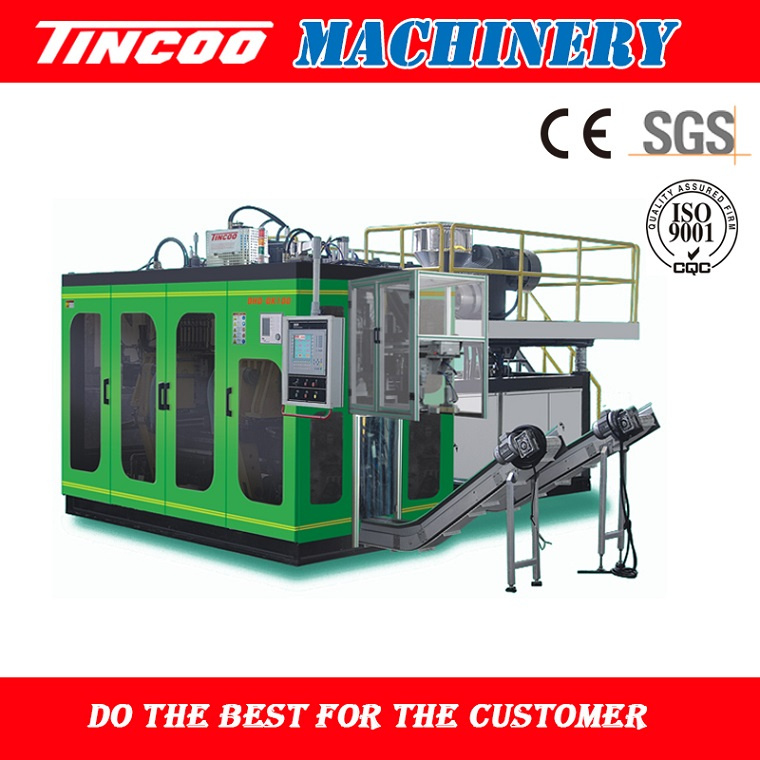

Fully-Automatic Extrusion Blow Moulding Machine Dh-Qk100

Product Description
The plastic fuel tank is 30%-50% lighter than that of the same specification.The machine processes HMWHDPE as the grass roots.
Double station with HIGH-SPEED,Advanced technology from America and European countries.Dry cycle storke is 700mm, doulbe station only takes 3.8s.10 heads,multi-layers,Fully automatic.
For use in packaging of 200ml-5000ml washing,cosmetics,food and petroleum containers.
DHD-QK100  is a  double station machine, and suitable for producing high quality container with medium output.With from one to six fold diehead, for use in the packaging of petroleum, cosmetics, chemicals, pharmaceuticals,food, toys and auto-parts.The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan.The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical part.
Advantages of automatic extrusion blow molding machine:
1.Machine platen can be moved down & up.
2.Machine platen has been strengthened.
3.All tubes and lines are located in good order.
4.Mold-moving stand is in box shape.It can make movement more stable and avoid distortion.
5.Tie bars are strengthened to make movement more stable
6.Mold-closing and mold-moving cylinder has been equipped with joint bearing.It can help protect mold-closing and mold-moving cylinder.
7.New blow construction.It can blow vertically and even blow from certain angle.
8.Blow construction has connected to exhausting air pipe.It can make product cool down more quickly.
9.Machine is with auto deflash
10.Machine can be connected to conveyor to carry the slitter edge to crusher to be reused.
11.Machine can be connected to conveyor to carry out bottle and connecto the filling machine directly.
12.Machine can be equipped with robot arm to take out the bottle.
13.Machine can be equipped with circle-type cutter to trimmer the bottle with foil-sealing type.
14.Mold platen has been professionally designed in construction and shape to keep stable.
15.New and safe machine door.
16.Machine is equipped with reduction valve in the mold-moving parts.It can make mold move more quickly and more stably.
17.Machine is equipped with manual adjuster to adjust the position of mold and blow pin.It make the adjustment more conveniently.
18.Screw stand is of high rigidity
19.Screw can be adjusted forward and backward, leftward and rightward.
Advanced processing equipment:
Introducing advanced technology form Germany,Italy,Japan etc.
Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
Holding over 40 items Patent Technologies.
After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
Service hotline is 24-hour on call.
Fast response:Domestic call is handled within 12 hours.

Specifications Unit DHD-QK100 Material   PE,PP Max container capacity L 5+5 Number of die Set 1,2,3,4,6,8 Total weight Ton 20 Machine dimension(L×W×H) M 6.3x3.9x2.7 Accumulator head Unit DHD-QK100 Number of die heating Zone 12 Power of die heating Kw 10-19.69 Max die-pin diameter Mm 140 Center distance of twin-die Mm 280 Center distance of tri-die Mm 190 Center distance of four-die Mm 140 Center distance of six-die Mm 95 Center distance of eight-die Mm 65 Clamping unit Unit DHD-QK100 Clamping force Kn 190 Platen opening stroke Mm 210-430 Platen size Mm 410X600 Max mould size(W×H) Mm 410X690 Mould thickness Mm 210-380 Extruder unit Unit DHD-QK100 Screw diameter Mm 100 Screw L/D ratio L/D 25:1 Extruding volume Kg/hr 200-280 Number of heating zone Zone 4 Extruder heating power Kw 26.4 Extruder driving power Kw 55 Power Unit DHD-QK100 Oil pump drive power Kw 55 Fan power for screw Kw 0.6 Total power Kw 157 Air pressure Mpa 0.8 Air consumption M³/min 2-3 Average energy consumption Kw 64

Packaging & Shipping

1.PACKING:STANDARD EXPORT PACKING
2.DELIVERY:60 WORKING DAYS AFTER RECE
Our Services
A technician shall be sent to install and test the machine upon buyer's notification when everything is ready for installation and testing.The buyer shall bear all the charges involved since the technician leave off seller's company till he gets back, charges including transportation expenses, visa fee, accommodation, and insurance, etc.If the technician is required to go abroad, USD 80/day shall be charged as the service fee within the same time period stated above.
Company Information
TINCOO Machinery-Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd..Established in 1989, is a professional supplier devoted to the designing & production of big-scaled and multi-layer extrusion molding machine.The company is located in the mold town--Huangyan, with total investement of 88 million RMB, covering a total area of 50,000 M2.Machines from the company are mainly for export, and have been exported to more than 80 countries in Asia, Mid-East, Europe, Africa, Australia, and Latin-America.The marketing network has covered all over the world.
There are 2 general departments in our company:Machinery department & mold department.Machinery department is focused on designing and developing various plastic extrusion blows molding machine by learning foreign advanced techniques & administration faith, based on our own strong techniques force;Mold department is focused on mold design and manufacturing of perform mold & extrusion mold & blow mold.According to different character of different plastic material, we have successfully designed differentextrusion blow molding machines, which are suitable for different products:Container of PE,PVC,PP,PC,PETG,PS,PAN,PA,PPE,PP0,ABS,POM,TRV,etc.Say container of big volume, big tank, collapsible container, car plastic hollow part, office equipment, sport facility, toys, mechanical container, 5 gallon PC container, tool box, various bottles and plastic container, etc.We have an experienced team with great team spirit to design and produce and offer service after sale.Therefore, we will offer customer quality blow molding machine and service, to meet different customer's need.We have acquired good comments from our customers with our good quality and good price.
With honesty & sincerity as our business style, and Innovating and striving as our management concept, we have survived in the fierce market competition with our super quality and advanced technology.We are expanding through serving our customers.TINCOO will be devoting to researching & developing new products.Right now, we can offer fully-auto extrusion molding machine with 2 to 7 layers and max.8 die heads for 1ml to 1000L.We are the first one in China who has manufactured machine for 7-layer products.We are expecting to meet more new friends and would like to help our friends with our technology & service.
Focused on customers, cored on quality, the corporation and customers are viewed as a united whole.Customers' requirements are all we should do.
