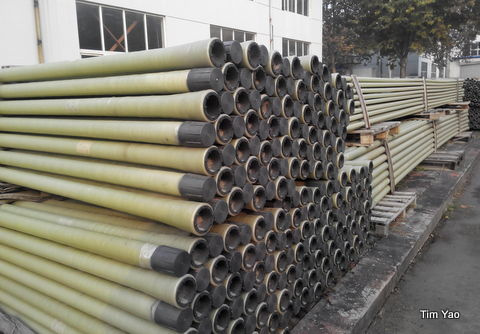

Gre Pipes for Oil Field Casing, Oil Transmission
| Price: |
US $ 5/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T |

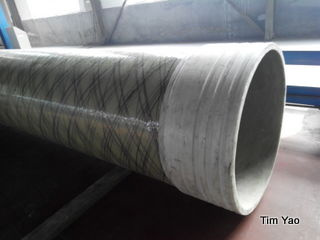

GRE pipes offer a unique combination of high mechanical, thermal and chemical resistance which is obtained by the selection of high performance components and a proper design of the structure. The inner liner, which is made by a resin rich layer reinforced with C-glass or synthetic veil, guarantees the pipe water tightness, its chemical and temperature resistance. The mechanical resistant layer is composed of successive layers of pre-stressed glass roving impregnated with epoxy resin and orientated with a precise, predetermined angle selected in order to achieve the properties required. The resin and the hardener system are selected with the consideration of the combination of properties required from the finished product. The glass reinforcement in the form of continuous roving is chosen base on its compatibility with epoxy resin. It is applied on the rotating mandrel following the hoop (radial) winding pattern combined with a helical winding pattern at an angle ranging from 45° to 90°.
Glass tape or unidirectional reinforcements can be used to obtain local reinforcement. An external resin coating reinforced with a synthetic veil adds a finish to the pipe. Should weathering be a problem a UV inhibitor will be added to the coating.

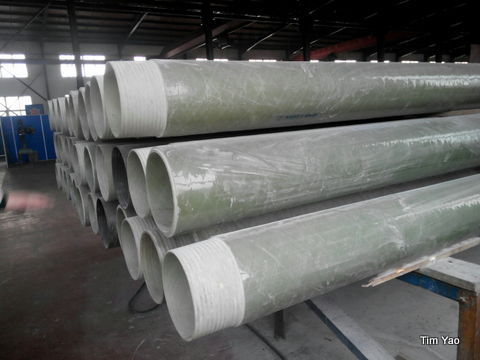

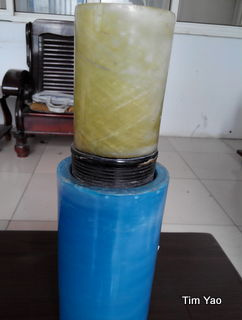

GRE pipes are generally manufactured with an integral joint, which means that the socket (for bonding, lock, or thread) is produced simultaneously with the pipe body by winding on a specially designed metallic mould fixed at one end of the mandrel. The pipes are wound on precisely machined steel mandrels, the mandrel is extracted only when the pipe is cured.
|
1 |
GRE Filament winding Thread max. 20 barg, DN400 |
|
M |
501 |
73586 |
146.99 |
Pipe |
|
2 |
GRE Filament winding Thread max. 20 barg, DN200 |
|
M |
24 |
1046 |
43.37 |
Pipe |
|
3 |
GRE Pipe Filament winding Thread max. 20 barg, DN50 |
|
M |
4 |
43 |
10.84 |
Pipe |
|
4 |
GRE Pipe Filament winding Thread max. 20 barg, DN15 |
|
M |
2 |
16 |
7.83 |
pipe |
|
0 |
ELBOW |
|
|
|
|
|
|
|
5 |
GRE Filament winding SE max. 20 barg, DN400 |
|
PCS |
26 |
6361 |
240.96 |
ELBOW |
|
0 |
TEE |
|
|
|
|
|
|
|
6 |
Equal tee with integral quick-lock ashesive bonding socket end, maximum working pressure 20barg, DN400-DN400, GRE |
|
PCS |
4 |
1745 |
436.14 |
TEE |
|
7 |
Reducing tee with integral quick-lock ashesive bonding socket end, maximum working pressure 20barg, DN400-DN200, GRE |
|
PCS |
6 |
1778 |
296.39 |
Tee reducING |
|
8 |
Reducing tee with integral quick-lock ashesive bonding socket end, maximum working pressure 20barg, DN400-DN50, GRE |
|
PCS |
6 |
1728 |
287.95 |
Tee reducING |
|
0 |
REDUCER |
|
|
|
0 |
0.00 |
|
|
9 |
GRE Filament winding SE max. 20 barg, DN400xDN200 |
|
PCS |
4 |
275 |
68.67 |
REDUCER |
|
10 |
Eccentric reducer with integral quick-lock ashesive bonding socket end, maximum working pressure 20barg, DN250-DN200, GRE |
|
PCS |
4 |
111 |
27.71 |
REDUCER |
| Prod Model: |
25-1000mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Pressure: |
Higher Than 50 Bar |
He Bei Cheng Da FRP Co., Ltd. is an enterprise professionally engaged in the research, design, production and sales of HDPE pipe, steel-plastic composite (PE/EP) pipe and fiberglass products. It is located in No. 666 East Yuhua Street, Zaoqiang County. Initiated in 1976 and converted into a limited liability company in 1997 with registered capital of 61.66 million Yuan, covering an area of 151, 420 square meters. Its current staff group includes 720 employees, 20 senior engineers and technicians, 52 intermediate engineers and technicians and junior 88, of which it has employed six state-level technical experts and established long-term cooperation mechanism with research institutes. Chengda Company has formed the multi-industry chain in producing polyethylene (HDPE) pipe, steel-plastic composite (PE/EP) steel pipe, steel mesh skeleton PE pipes, fiberglass pipes, containers, winder membrane shells and other series of products.
Now Company has a strong power: 6 PE pipe production lines, 2 coating composite pipe production lines as well as 12 fiberglass production lines which can meet the needs of coal companies, natural gas, electricity, urban construction and public facilities in all kinds of pipes and fiberglass products.
The application fields: Tube materials used by domestic and foreign coal mines' underground gas pumping and emission, water supply and drainage, positive and negative pressure ventilation, gas and firefighting; Water supply and drainage, drinking water, sewage treatment, agricultural irrigation systems, and the softened water equipment specifically provided for Midea Company's supporting use; Cooling towers, fans, air-conditioning terminal, pultrusion, molding and other products. Diversification of Chengda's businesses possesses good industrial base and market competitive advantage; Series of Chengda's products are widely used in various industries.
Chengda has obtained "Mining Product Safety Certification Mark", "Special Equipment Manufacturing License (Pressure Piping Components)", "National Industrial Production Permit (Dangerous Chemicals Packaging FRP Containers)", and "National Industrial Production Permit (FRP Water Supply and Drainage) ", and has passed through the certifications including ISO9001, ISO14001 and OHSAS18000 successively. Over more than twenty years, it has totally completed output value of 1.4 billion Yuan realizing profits and taxes 76.8 million Yuan, and has been awarded with the "Advanced Enterprise", "Rich Family wit Profits and Taxes", "Civilized Unit", "Unit Emphasizing Contracts and Keeping Promise", "AAA Credit Enterprise", "County Protected Enterprise" and "Science and Technology Enterprise" for many times by the provincial, local and prefectural governments. Its products cover throughout the country and are exported to Libya, Kenya, Iran and other places.
Chengda provides customers with quality products and best service through adopting advanced science and technology, exquisite production technology, perfect operation and management together with strict testing means. People of Chengda give favor to others and themselves to create brilliance with the customers together.
