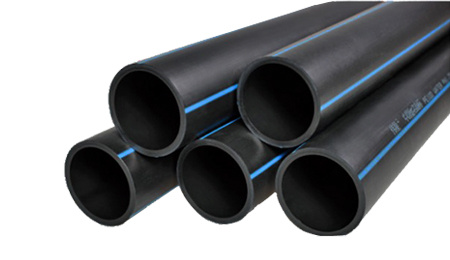

PE80 /PE100 Pipe

PE80 /PE100 Pipe
Price: US $ 5/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 100/Meter
Pay Type: L/C,T/T

Model
PE80 & PE100
Key Specification

CHENGDA  polyethylene pipes are all produced in standard sizes from 20 up to 800 mm of outer diameter. All dimensions are in accordance with the DIN (8074) & ISO (4427) standard.

Light weight

Does not corrode

Resistant to chemical fertilizers and herbicides

Non toxic and odorless

Resistant to harsh climate

Up to 50 years' durability

Resistant to deformation

Smooth interior structure, low friction losses

Low labor coat for handling and installing

Reliable performance and easy maintenance



Outer Wall Thickness
Diamter PE80
dn SDR33 SDR21 SDR17 SDR13.6 SDR11
mm Pressure Grade MPa
  0.4 0.6 0.8 1 1.25
20         2.3
25         2.3
32         3
40         3.7
50         4.6
63       4.7 5.8
75     4.5 5.6 6.8
90   4.3 5.4 6.7 8.2
110   5.3 6.6 8.1 10
125   6 7.4 9.2 11.4
140 4.3 6.7 8.3 10.3 12.7
160 4.9 7.7 9.5 11.8 14.6
180 5.5 8.6 10.7 13.3 16.4
200 6.2 9.6 11.9 14.7 18.2
225 6.9 10.8 13.4 16.6 20.5
250 7.7 11.9 14.8 18.4 22.7
280 8.6 13.4 16.6 20.6 25.4
315 9.7 15 18.7 23.2 28.6
355 10.9 16.9 21.1 26.1 32.2
400 12.3 19.1 23.7 29.4 36.3
450 13.8 21.5 26.7 33.1 40.9
500 15.3 23.9 29.7 36.8 45.4
560 17.2 26.7 33.2 41.2 50.8
630 19.3 30 37.4 46.3 57.2
710 21.8 33.9 42.1 52.2
800 54.5 38.1 47.4 5838

Outer Wall Thickness
Diamter PE100
dn SDR26 SDR21 SDR17 SDR13.6 SDR11
mm Pressure Grade MPa
  0.6 0.8 1 1.25 1.6
20         2.3
25         2.3
32         3
40         3.7
50         4.6
63       4.7 5.8
75     4.5 5.6 6.8
90   4.3 5.4 6.7 8.2
110 4.2 5.3 6.6 8.1 10
125 4.8 6 7.4 9.2 11.4
140 5.4 6.7 8.3 10.3 12.7
160 6.2 7.7 9.5 11.8 14.6
180 6.9 8.6 10.7 13.3 16.4
200 7.7 9.6 11.9 14.7 18.2
225 8.6 10.8 13.4 16.6 20.5
250 9.6 11.9 14.8 18.4 22.7
280 10.7 13.4 16.6 20.6 25.4
315 12.1 15 18.7 23.2 28.6
355 13.6 16.9 21.1 26.1 32.2
400 15.3 19.1 23.7 29.4 36.3
450 17.2 21.5 26.7 33.1 40.9
500 19.1 23.9 29.7 36.8 45.4
560 21.4 26.7 33.2 41.2 50.8
630 24.1 30 37.4 46.3 57.2
710 27.2 33.9 42.1 52.2
800 30.6 38.1 47.4 58.8

Prod Model: 25-800
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PE: PE
Material: PE
He Bei Cheng Da FRP Co., Ltd. is an enterprise professionally engaged in the research, design, production and sales of HDPE pipe, steel-plastic composite (PE/EP) pipe and fiberglass products. It is located in No. 666 East Yuhua Street, Zaoqiang County. Initiated in 1976 and converted into a limited liability company in 1997 with registered capital of 61.66 million Yuan, covering an area of 151, 420 square meters. Its current staff group includes 720 employees, 20 senior engineers and technicians, 52 intermediate engineers and technicians and junior 88, of which it has employed six state-level technical experts and established long-term cooperation mechanism with research institutes. Chengda Company has formed the multi-industry chain in producing polyethylene (HDPE) pipe, steel-plastic composite (PE/EP) steel pipe, steel mesh skeleton PE pipes, fiberglass pipes, containers, winder membrane shells and other series of products.

Now Company has a strong power: 6 PE pipe production lines, 2 coating composite pipe production lines as well as 12 fiberglass production lines which can meet the needs of coal companies, natural gas, electricity, urban construction and public facilities in all kinds of pipes and fiberglass products.

The application fields: Tube materials used by domestic and foreign coal mines' underground gas pumping and emission, water supply and drainage, positive and negative pressure ventilation, gas and firefighting; Water supply and drainage, drinking water, sewage treatment, agricultural irrigation systems, and the softened water equipment specifically provided for Midea Company's supporting use; Cooling towers, fans, air-conditioning terminal, pultrusion, molding and other products. Diversification of Chengda's businesses possesses good industrial base and market competitive advantage; Series of Chengda's products are widely used in various industries.

Chengda has obtained "Mining Product Safety Certification Mark", "Special Equipment Manufacturing License (Pressure Piping Components)", "National Industrial Production Permit (Dangerous Chemicals Packaging FRP Containers)", and "National Industrial Production Permit (FRP Water Supply and Drainage) ", and has passed through the certifications including ISO9001, ISO14001 and OHSAS18000 successively. Over more than twenty years, it has totally completed output value of 1.4 billion Yuan realizing profits and taxes 76.8 million Yuan, and has been awarded with the "Advanced Enterprise", "Rich Family wit Profits and Taxes", "Civilized Unit", "Unit Emphasizing Contracts and Keeping Promise", "AAA Credit Enterprise", "County Protected Enterprise" and "Science and Technology Enterprise" for many times by the provincial, local and prefectural governments. Its products cover throughout the country and are exported to Libya, Kenya, Iran and other places.

Chengda provides customers with quality products and best service through adopting advanced science and technology, exquisite production technology, perfect operation and management together with strict testing means. People of Chengda give favor to others and themselves to create brilliance with the customers together.
