Introduction:

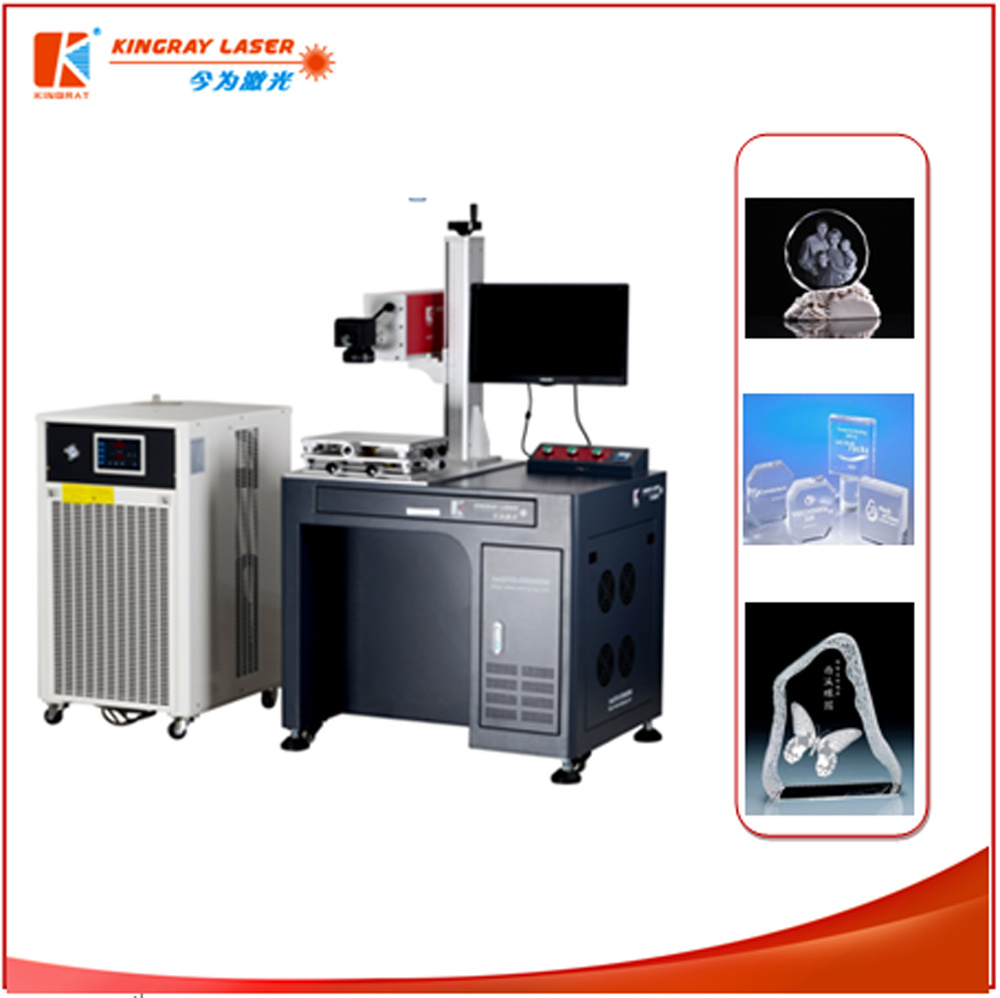

Green laser marking machine adopts the state-of-the-art laser pumped technology. The green laser module is consisted of laser crystal and nonlinear crystal. In laser cavity, the wavelength of 808nm LD pumped laser has some effects on the gain laser crystal to form 1064nm laser, then the 1064nm laser generates 532nm green laser through nonlinear crystal frequency doubling effect. KRGL green laser machine is widely used for glass, surface and internal engraving of crystal products, as well as surface process and thin film coating of most metal and non-metal materials.
Features:
1.Small laser spot, good optic mode, suitable for high requirements of graphic and text marking.
2.The 532nm output laser reduces the heat effect on work piece to achieve more refined marking and repeating process is available.
3.Flexible laser worktable design can support different output laser wavelength, laser power and pulse width, suitable for different marking requirements.
4.Suitable for combining with production line for automatic material delivery, and can be used for most metal and non-metal materials marking.
5.Convenient and fast operating system, supported graphic format like PLT, PCX, DXF, BMP, etc. It supports automatic typeset and modification of text symbols, graphics, bar code, QR code and auto-increment serial number auto-increment automatic serial number, etc.
Application Industries:
Widely used in glass, surface and internal engraving of crystal products, as well as surface process and thin film coating of most metal and non-metal materials.
Suitable Materials:
Suitable for mobile phone screen, LCD screen, crystal, glass, metal hardware, ceramics ,glassware and horology , PC and plastics products etc.
Technical Parameters:
Type/Parameter | KRGL-7 | KRGL-10 | Type/Parameter | KRGL-7 | KRGL-10 |
Laser output power | 7W | 10W | Q-switched frequency | 20KHZ-120KHZ |
Wavelength | 532mm | Dimension | 800mm×680mm×120mm |
Beam quality | <2 | Electric requirements | 220V±10%50HZ/10A |
Min. character size | 0.1mm | Cooling method | Air Cooled |
Min line width | 0.015mm | Total weight | 120KG |
Repetition accuracy: | ±0.003m | Power consumption | 800W |
Marking speed | 800C/S |
|
|
Shenzhen Kingray Laser Equipment Co., Ltd is located in Bao'an district, Shenzhen, the high-tech coastal city in China. Kingray was founded in 2008 (previously named Tongchuang Laser, founded in 2005), a high tech enterprise specialized in design, manufacture, marketing and post-sale service of industrial laser applications such as UV laser for micro cutting, precision fiber laser cutting, various types of laser welding and laser marking, integrated seamlessly industrial robot for production lines.
Kingray has equipped the most advanced production and testing equipment like Renishaw laser interferometer & 2D photogrammeter, Coherent laser power meter and etc. Kingray has a professional develop&research team with staffs in optics, electron, precision machinery and software control. Kingray has got the ISO quality system identification and holds dozens of patents and two software copyright in laser equipment filed. Kingray's products are with excellent performance, easy to operate and maintain, widely used in LED lighting, auto parts, plumbing, sanitary ware, electromagnet&cell, sensors, precision machinery, jewelries, fiber glass, engraving of bamboo ware & wood, gifts, food packaging, tobacco packaging, Logo marking, engraving, welding and precision cutting of 3C digital parts like iPhone, Samsung, Huawei, Lenovo.
Through the efforts of our professional R&D team, we have developed several types of industry specific laser machines that are integrated seamlessly with industrial robot, and have broken through the tranditional manual operation laser process equipments to provide labor-saving and financial-saving to our customers, and earned high recognition from clients.
