Handy Operation Upset Forging Parallel Thread Rolling Machine
| Price: |
US $ 5000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Changzhou Jianlian Reinforcing Bar Conjunction Co.,Ltd
Handy Operation Upset Forging Parallel Thread Rolling Machine
1.The Parameter:
Advantages
|
1.Handy operation;
2.Quick link;
3.High efficient;
4.High quality;
5.Environment protection;
6.Strong tensile strength;
|
Test
|
100% bar break
|
| Privilege |
According your order, we can give some mold(in thread rolling machine) or other as a present
|
| Package |
Carton Box With Plastic Bag
|
| Origin |
Changzhou City, Jiangsu Province, China
|
| Other |
1.If you have any problems, please send messages to me, I will reply you within 1 working day;
2.We also can provide FREE SAMPLE;
|
Description:

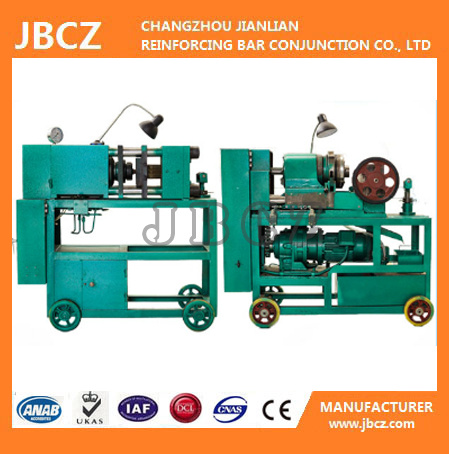

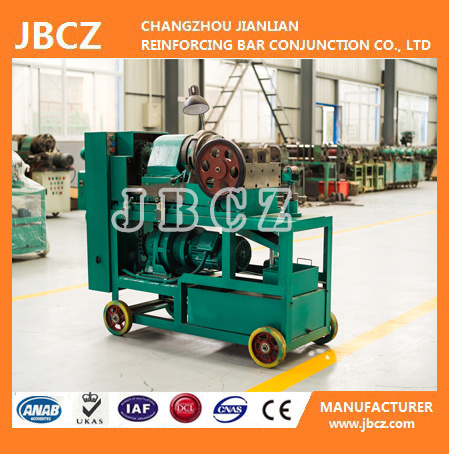

1.The upset forging parallel thread rolling machine contains one rebar threading machine(GZL-45) and one upset forging machine(GD-150)
|
2.They work together with couplers for the connection of rebar whose diameter is between 12mm and 40mm.
|
2.Working principle of upset forging parallel thread rolling machine:
First, we use GD-150 to forging the end of rebar.
|
Second, we use the GZL-45 to threading the end of rebar.
|
Third, we use the coupler to link the two ends of rebar.
|
3.Advantages of upset forging parallel thread rolling machine:
(1)Adopts upset forging parallel thread rolling machine connection technology;
|
(2)Wide working range:
Adaptable for 12mm-40mm same diameter, different diameter, bending, new and old, advance covered up rebar of GB 1499, BS 4449, ASTM A615 or ASTM A706 standard. |
(3)High strength:
Stronger than the reinforcement bar and guarantees bar break under tensile stress(tensile strength of connection point =1.1 times of connected bar's specified tensile strength). It can satisfy the requirements stipulated in the Chinese standard JGJ107-2003, JG171-2005.
|
(4)High efficiency:
Upset forging and threading one joint only needs no more than one minute, and handy operation and quick link.
|
(5)Environmental protection and economy profit:
No envirement pullution, can work all day, not affected by weather, economize energy source and bar material. |
4.Display of upset forging parallel thread rolling machine:
Bridge Project
|
Hangzhou Bay Crossing Sea Bridge, Jiangyin Yangzi River Bridge,
Jiangsu Runyang Bridge
|
Commercial Building Project
|
Burj Khalifa Tower, Oriental Pearl tower,
Saraya Tower, Jinmao Tower
|
Public Project
|
Beijing Capital Airport, Qinshan Nuclear Power Plant,Gazi-Barotha Hydropower Station In Pakistan,
North Jeddah Water Pump Station, Dubai Metro, Suzhou Gymnasium
|

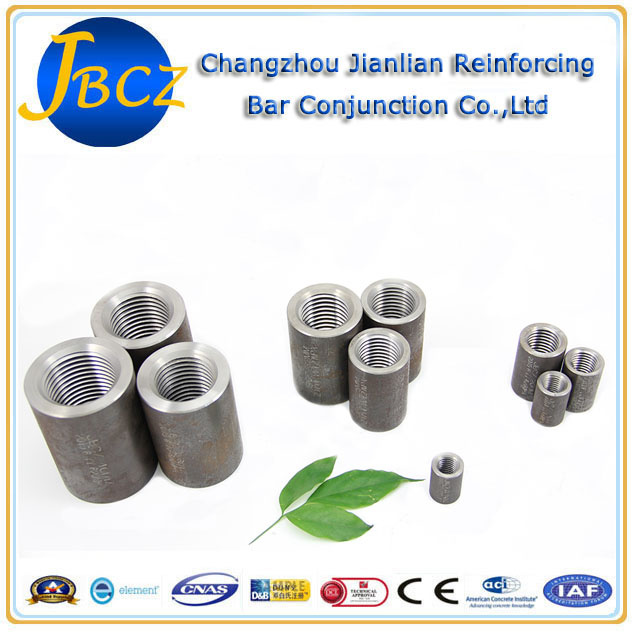

5.The Parameter For Standard Coupler:Handy Operation Upset Forging Parallel Thread Rolling MachineSteel bar
diameter(MM) | Outer diameter
of coupler (MM) | Length of
coupler (MM) | Size of thread (MM) |
| 12 | 20 | 30 | M14*2.0 |
| 14 | 22 | 34 | M16*2.0 |
| 16 | 26 | 40 | M20*2.5 |
| 18 | 29 | 44 | M22*2.5 |
| 20 | 32 | 48 | M24*3.0 |
| 22 | 36 | 52 | M27*3.0 |
| 25 | 40 | 60 | M30*3.5 |
| 28 | 44.5 | 66 | M33*3.5 |
| 32 | 50 | 72 | M36*4.0 |
| 36 | 56 | 80 | M39*4.0 |
| 40 | 62 | 90 | M45*4.0 |
Test: 100% bar break
6.QUESTIONS:1. How can I know the quality of JBCZ rebar coupler?
We can send you FREE SAMPLE to do test, or you can send us your rebar, we link it with our rebar coupler, then send back to you, if the test result is bad, we will pay you for the courier charges.
2. Where is your company?
Our company is located between Shanghai and Nanjing China, if you arrive at Shanghai Airport, we are glad to pick up. It will take 2 to 3 hours from the Airport to our company by Car. You are very welcome to visit us!
3. If you have any problems, please send message to me, I will reply you within 1 working day.
| Prod Model: |
GD-150, GZL-45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE and ISO |
| Size: |
12mm-40mm |
| Brand Name: |
Jbcz |
| Port: |
Shanghai |
| Quality: |
High |
| Thread Type: |
Parallel Thread |
| Function: |
Link Two Rebars Dia. From12~40mm |
| Price: |
The Most Competitive |
| Operation: |
Easily Handy |
| Tensile Strength: |
More Than 700 MPa |
| Forging Forming Method: |
Mold Forging |
Located in Heng Shan Qiao crossing of Shanghai-Nanjing Highway, Changzhou City, Jiangsu Province, China. JBCZ company was established in 1987, is a professional developer and manufacturer of rebar mechanical splice products, contains rebar processing machines and rebar couplers. We have four systems of machine:
1. Upset forging parallel thread machine and coupler
2. Rib peeling roll stamping machine and coupler
3. Cold extrusion press machine and coupler
4. Taper thread machine and coupler
The company has coupler streamline production workshop, mechanical precision production workshop, and equipped with engineering department in home and technical department which are responsible for the corresponding service for overseas. Company has an annual production capacity of 6 million 12-40mm reinforcing steel bar upset forging straight screw thread connection adapter sleeves, and more than 500 sets of machinery, which could well meet the requirements of major and key construction projects of home and overseas. The company has a perfect quantity, management and control system. We are strict to buy the raw materials, produce products and test the products. Our products and technology Have past GB/T19001-2000idt, ISO9001: 2000international quality management system and CE certification.
Our company supplies not only the products, but also good service. Our aim is to meet different clients' Requirments, and help clients to solve steel bar link problems in the project.
With more than 20 years development, we have ISO9001 certificate and CE certificate, Patent certificate for Upset forging parallel thread machine, the products were exported to five continents.
Our products have been used in following countries: United Arab Emirates, Ukraine, Poland, Sudan, Pakistan, Malaysia, Vietnam, Brazil, South Korea, Thailand, Iran, India, Mexico, New Zealand, Colombia, Ethiopia and Philippines etc.
We are looking forward to great cooperation with oversea customers based on mutual benefits. Please feel free to contact us for more details if you are interested in us.
