Feature:

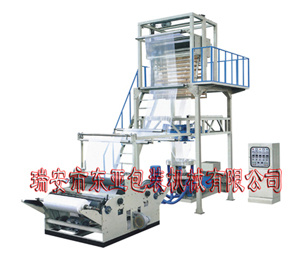

1. The machine take the HDPE or LDPE as raw material, through heating, extrusion, blowing, stretch, winder and final be roll thin film.
2. The finished plastic thin film is widely used for supermarket bag, garbage bag, various plastic package bag, farmland film.
3. Cote film and compound thin film.
|
Model |
SJ70-1200 |
|
Suitable raw materials |
HDPE,LDPE,LLDPE |
|
Thickness of single film |
1200mm |
|
Film thickness(HD) |
0.009-0,05 mm |
|
Film thickness(LD) |
0.025-0.11mm |
|
Max extrusion output(HD) |
75kg/h |
|
Max extrusion output(LD) |
80kg/h |
|
Average power consume |
45kw |
|
Cover dimension |
5.8×2.8×5m |
|
Screw diameter |
70mm |
|
Screw L/D |
28:1 |
|
Screw material |
SACM65/38CRMOLA |
|
Cylinder material |
SACM65/38CRMOLA |
|
Cylinder cooling |
370×3 |
|
Drving motor |
15kw |
|
Temperature |
3 |
|
Die size |
120/150 |
|
Temperature control |
2 |
|
Air ring |
1 |
|
Center steady stick |
1 |
|
Roller width |
1200mm |
|
Height adujstable type |
600mm |
|
Take up speed |
10-80m/min |
|
Take up motor |
1.1kw |
|
Type |
Surface friction/center rewinder |
|
Widing motor |
5kw |
|
Widing speed |
10-80kw |
|
Parts for choice |
1.lift traction; 2. rotary mould; 3, double cutting and rewinder; 4, surface treatment. |
In the field of plastic machinery, our Dongya Packing Machinery Co., Ltd. has rapid development on the basis of constant researches and application of advanced technology. During more than ten years, our enterprise has always been devoting itself to the technologic improvement and the managerial idea of scientific management, organizing production and sales and strengthening the ability to participate in acute marker competition by international level, new technology.
We are specialized in manufacturing the plastic machines, such as stretch film machine, film blowing machine, bubble film machine, bag making machine, printing machine, film laminating machine and so on. Various Plastics machines have been sold to a lot of regions as Southeast Asia, Europe, America and the Middle East, etc. We are emphasizing product excellent quality, using of high quality materials, adopting advanced designs and strict manufacturing standards forever, We have advanced technology and managements to guarantee the products quality and can supply perfect products and after-sales service. We have been well received and trusted by personality of various circles at home and abroad.
Our enterprise has been always persisting in the management purpose of "Taking Science and Technology as Guide, Pioneering and Being Enterprising, Taking Prestige as Foundation". And doing its best to provide customers with perfect, full and accurate technical service. We will warmly welcome old and new customers at home and abroad to cooperate with us hand in hand so as to jointly March toward success.
