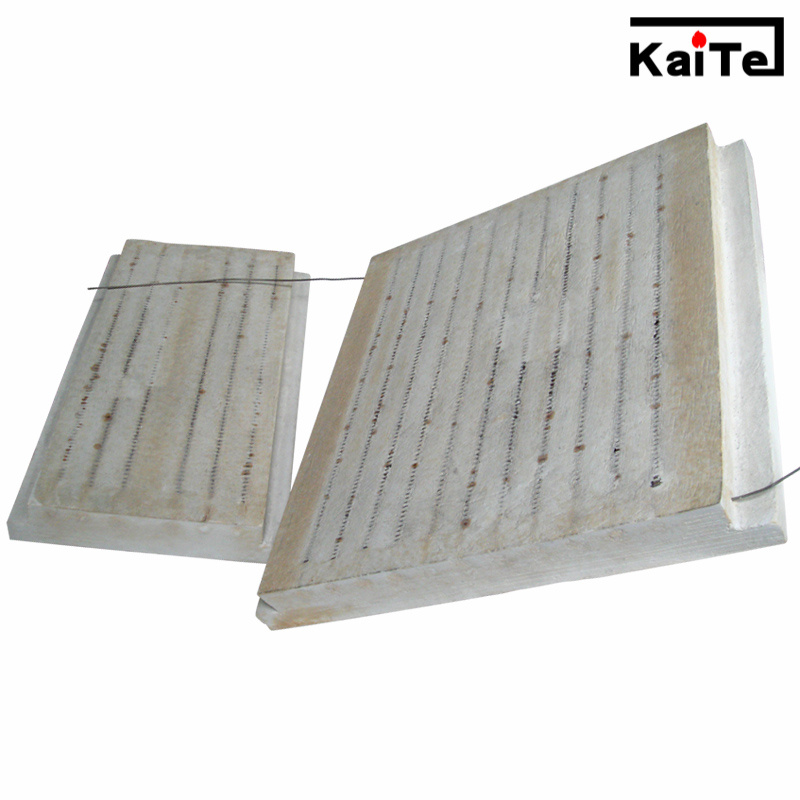

Ceramic fiber electric heating module is the lining module fitted for industrial furace, electric furnace and laboratory furnaces, it is a kind of high temperature refractory ceramic fiber producs, serving as a whole partor separate ones for assembly.
1. It is characterized by energy-saving, easy installation and convenient maintenance.
2. Shrinking: 3-5%, Heater ID: 355.6mm
3. There are three types of furnace wire installation, Embedded type, Exposed type, Suspention type.
4. Ordinary working temperature: 1000-1400 degree C.
It's widely used in the field of muffle furnace, pre-heating furnace, box-type furnace, high temperature furnace, vacuum furnace ect.
Mode | Rated Power(KW) | V Rated voltage | Degree C Rated temperature | Number of phases | Connection of heating elements | Furnace Chamber dimensions(mm) | Power consum ption at no load(KW) | Eating-up time at no load (min) |
XL-2-10 | 2 | 220 | 1000 | single | - | 200× 120× 80 | ≤ 0.4 | ≤ 25 |
XL-3-10 | 3 | 220 | 1000 | single | - | 300× 200× 120 | ≤ 0.6 | ≤ 30 |
XL-6-10 | 6 | 380 | 1000 | three | Y | 400× 250× 160 | ≤ 1.2 | ≤ 40 |
XL-9-10 | 9 | 380 | 1000 | three | Y | 500× 300× 200 | ≤ 1.8 | ≤ 55 |
XL-2-12 | 2 | 220 | 1200 | single | - | 200× 120× 80 | ≤ 0.6 | ≤ 40 |
XL-5-12 | 5 | 220 | 1200 | single | - | 300× 200× 120 | ≤ 1.0 | ≤ 50 |
XL-9-12 | 9 | 380 | 1200 | three | Y | 400× 250× 160 | ≤ 1.8 | ≤ 60 |
XL-6-14 | 6 | 380 | 1400 | three | Y | 250× 150× 100 | ≤ 2.0 | ≤ 50 |
XL-10-14 | 10 | 380 | 1400 | three | Y | 400× 200× 160 | ≤ 2.4 | ≤ 70 |
Sanmenxia kaite ceramic fiber Co., specializes in producing a variety of refractory fiber products. The leading products include fiber-needled blanket, felt, board, module and shaped fiber products. The shaped products are made by world-advanced vacuum-filtrating forming technology and by adding different kinda of additives and reagents for various working temperatures and circumstances.
