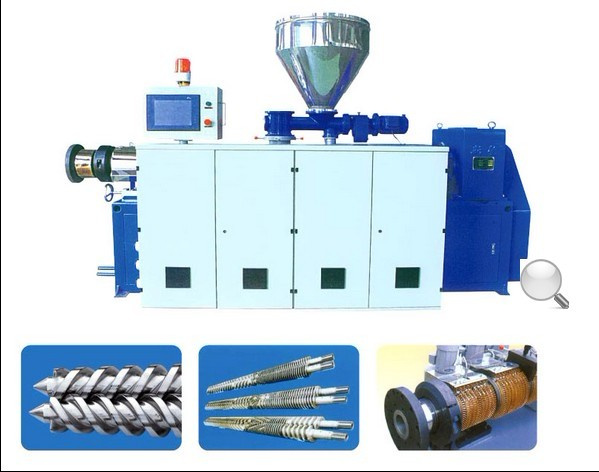

1. SJZ series conical twin-screw extruder is suitable for all types of PVC powder extrusion of special equipment.
2. Equipped with different molds and auxiliary equipment. It can produce all kind of PVC plastic pipes, profiles, plates, sheets, bars, and granulation.
3. Screw with oil cooling system. Barrel with special air cooling system. System uses special computer-controlled.
4. The different formulations according to user requirements, preparation of structure, the most reasonable screw in order to achieve the best quality plastics and logistics status.
5. Introduced the most advanced variable pitch, variable depth of screw design, thrust bearings especially increased use of imported bearings, transmission of high life expectancy can be subjected to greater pressure extrusion.
6. Maximize the use of imported original electrical system, and has a number of fault alarm, fault less easy to exclude.
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80I | SJZ-80II | SJZ-92 |
| Screw diameter(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 80/172 | 92/188 |
| Max. Rotational speed of screw(rpm) | 45 | 45 | 45 | 45 | 34.7 | 34.7 | 34.7 |
| Main motor(kw) | 15 | 18.5 | 22 | 30/37 | 55 | 81 | 110 |
| Capacity(kg/h) | 110 | 125 | 150 | 260 | 400 | 400 | 800 |
| Central height(mm) | 1000 | 1000 | 1000 | 1000 | 1100 | 1100 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 5500 | 8000 |
| Dimension(L*W*H)(M) | 3.3*1.2*2.1 | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 5.0*1.6*2.6 | 6*1.6*2.5 |
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
