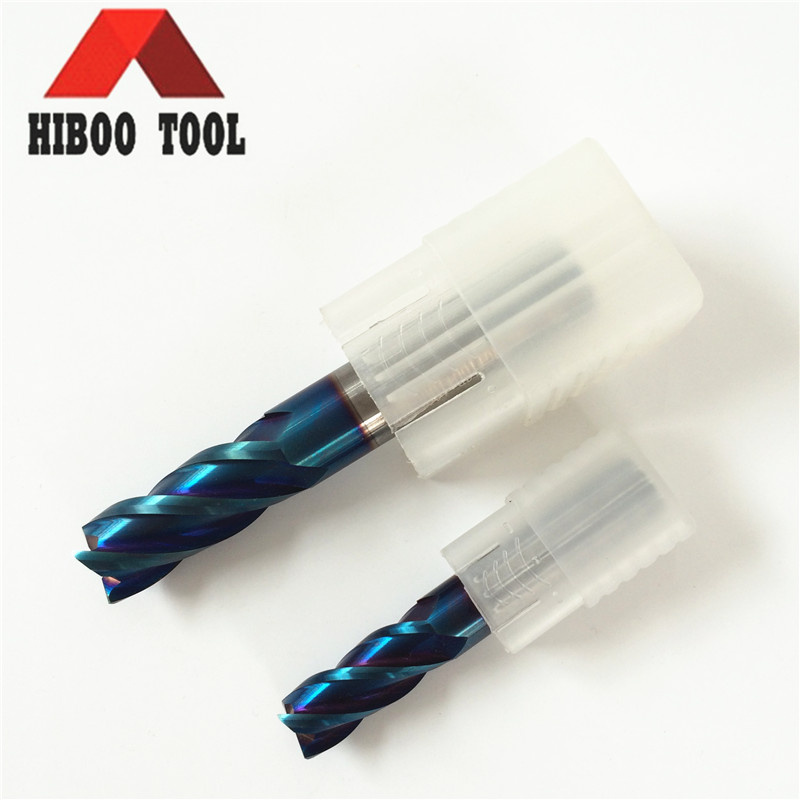

High Performance HRC65 Corner Radius End Mills
Price: |
US $ 6-85/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T,Money Gram,Western Union |
HRC65 Corner Radius Long Shank Carbide toolOur carbide cutting tools for the medical fields including Orthodontics, Orthopedics, Catheters,
and Surgical instruments ;for the automotive parts and engines, motorcycles, snowmobiles,
and bicycle industries; for pattern and mold makers ;for general manufacturing in marine,
recreational and consumer products industries ;for the plastics industry , and for the woodworking
industry.
1. Raw MaterialHRC45 | HRC55 | HRC60 | HRC65 |
YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 | Sandvik H10F |
Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2 | Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 | Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 | Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2 |
2. High quality Coating
| AlTiN | TiAIN | TiSiN | Nano |
Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
Color | Black | Violet | Copper | Blue |

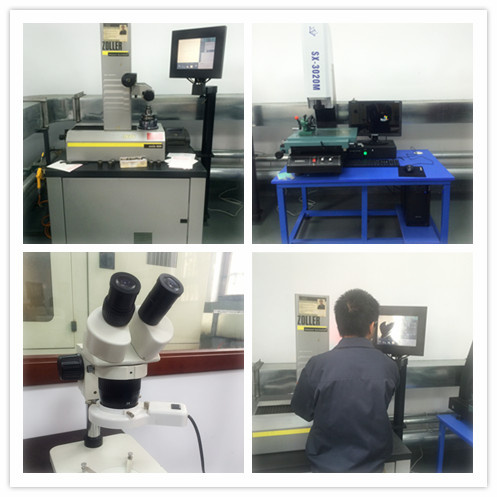

3. Made by ANCA ,Walter Grinding Machine4. Each end mill is inspected by Zoller measuring and inspected machine.
5. The following Specification for your refer, We also provide the OEM or ODM serviceorder number | cutting | Flute | Shank | Corner | A.0.L |
d | l | D | R Corner | L |
1×3×4D×R0.2×50L×4F | 1 | 3 | 4 | R0.2 | 50 |
1×3×4D×R0.3×50L×4F | 1 | 3 | 4 | R0.3 | 50 |
1.5×3×4D×R0.2×50L×4F | 1.5 | 4 | 4 | R0.2 | 50 |
1.5×3×4D×R0.3×50L×4F | 1.5 | 4 | 4 | R0.3 | 50 |
2×6×4D×R0.2×50L×4F | 2 | 6 | 4 | R0.2 | 50 |
2×6×4D×R0.3×50L×4F | 2 | 6 | 4 | R0.3 | 50 |
2.5×8×4D×R0.2×50L×4F | 2.5 | 6 | 4 | R0.2 | 50 |
2.5×8×4D×R0.5×50L×4F | 2.5 | 6 | 4 | R0.5 | 50 |
3×8×3D×R0.3×50L×4F | 3 | 8 | 3 | R0.3 | 50 |
3×8×3D×R0.5×50L×4F | 3 | 8 | 3 | R0.5 | 50 |
3×8×4D×R0.3×50L×4F | 3 | 8 | 4 | R0.3 | 50 |
3×8×4D×R0.5×50L×4F | 3 | 8 | 4 | R0.5 | 50 |
4×10×4D×R0.5×50L×4F | 4 | 10 | 4 | R0.5 | 50 |
4×10×4D×R1.0×50L×4F | 4 | 10 | 4 | R1.0 | 50 |
4×10×6D×R0.5×50L×4F | 4 | 10 | 6 | R0.5 | 50 |
4×10×6D×R1.0×50L×4F | 4 | 10 | 6 | R1.0 | 50 |
5×13×6D×R0.5×50L×4F | 5 | 13 | 6 | R0.5 | 50 |
5×13×6D×R1.0×50L×4F | 5 | 13 | 6 | R1.0 | 50 |
6×15×6D×R0.5×50L×4F | 6 | 15 | 6 | R0.5 | 50 |
6×15×6D×R1.0×50L×4F | 6 | 15 | 6 | R1.0 | 50 |
8×20×8D×R0.5×60L×4F | 8 | 20 | 8 | R0.5 | 60 |
8×20×8D×R1.0×60L×4F | 8 | 20 | 8 | R1.0 | 60 |
8×20×8D×R1.5×60L×4F | 8 | 20 | 8 | R1.5 | 60 |
10×25×10D×R0.5×75L×4F | 10 | 25 | 10 | R0.5 | 75 |
10×25×10D×R1.0×75L×4F | 10 | 25 | 10 | R1.0 | 75 |
10×25×10D×R1.5×75L×4F | 10 | 25 | 10 | R1.5 | 75 |
10×25×10D×R2.0×75L×4F | 10 | 25 | 10 | R2.0 | 75 |
12×30×12D×R0.5×75L×4F | 12 | 30 | 12 | R0.5 | 75 |
12×30×12D×R1.0×75L×4F | 12 | 30 | 12 | R1.0 | 75 |
12×30×12D×R1.5×75L×4F | 12 | 30 | 12 | R1.5 | 75 |
12×30×12D×R2.0×75L×4F | 12 | 30 | 12 | R2.0 | 75 |
|
3×8×3D×R0.3×75L×4F | 3 | 8 | 3 | R0.3 | 75 |
3×8×3D×R0.5×75L×4F | 3 | 8 | 3 | R0.5 | 75 |
3×8×4D×R0.5×75L×4F | 3 | 8 | 4 | R0.5 | 75 |
3×8×4D×R1.0×75L×4F | 3 | 8 | 4 | R1.0 | 75 |
4×10×4D×R0.5×75L×4F | 4 | 10 | 4 | R0.5 | 75 |
4×10×4D×R1.0×75L×4F | 4 | 10 | 4 | R1.0 | 75 |
4×10×6D×R0.5×75L×4F | 4 | 10 | 6 | R0.5 | 75 |
4×10×6D×R1.0×75L×4F | 4 | 10 | 6 | R1.0 | 75 |
5×13×6D×R0.5×75L×4F | 5 | 13 | 6 | R0.5 | 75 |
5×13×6D×R1.0×75L×4F | 5 | 13 | 6 | R1.0 | 75 |
6×15×6D×R0.5×75L×4F | 6 | 15 | 6 | R0.5 | 75 |
6×15×6D×R1.0×75L×4F | 6 | 15 | 6 | R1.0 | 75 |
8×20×8D×R0.5×100L×4F | 8 | 20 | 8 | R0.5 | 100 |
8×20×8D×R1.0×100L×4F | 8 | 20 | 8 | R1.0 | 100 |
8×20×8D×R1.5×100L×4F | 8 | 20 | 8 | R1.5 | 100 |
10×25×10D×R0.5×100L×4F | 10 | 25 | 10 | R0.5 | 100 |
10×25×10D×R1.0×100L×4F | 10 | 25 | 10 | R1.0 | 100 |
10×25×10D×R1.5×100L×4F | 10 | 25 | 10 | R1.5 | 100 |
10×25×10D×R2.0×100L×4F | 10 | 25 | 10 | R2.0 | 100 |
12×30×12D×R0.5×100L×4F | 12 | 30 | 12 | R0.5 | 100 |
12×30×12D×R1.0×100L×4F | 12 | 30 | 12 | R1.0 | 100 |
12×30×12D×R1.5×100L×4F | 12 | 30 | 12 | R1.5 | 100 |
12×30×12D×R2.0×100L×4F | 12 | 30 | 12 | R2.0 | 100 |
|
|
|
|
|
|

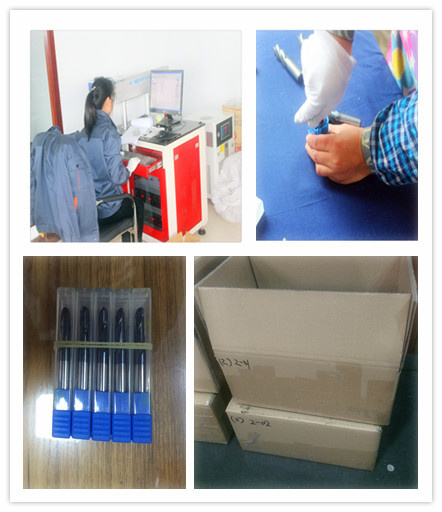

6. Package and shipping detailsLaser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a groupDelivery TimeFor samples , we dispatch your tools in 2-7 workdays .For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .7. Payment TermT/T ,Western Union , MoneyGram,L/C8.Why Choose Hiboo ToolsSeveral years' professional producting and exporting experienceAdvanced RD department meet your special demandsHigh precision CNC machines,high standard and strict inspectionCustom demand are welcomed ,OEM and ODM ServiceAll payment terms supportedFast delivery time and Convenient TransportationsMore than 2000 products are availableFor your suggestions or complaints,We will handle them Soonest
Prod Model: |
corner raduis end mill |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Diameter: |
1-20mm |
Length: |
50-100mm |
Helix: |
35 Degree |
Hardness: |
HRC65 |
Coating: |
Black Nano |
Samples: |
Available |
OEM: |
Accept |
Work Piece: |
Steel,Stainless Steel,Cast Iron Ect |
Process Usage: |
Metal-Cutting CNC Machine Tools |
Movement Method: |
Point to Point Control |
Control Method: |
Closed-Loop Control |
Numerical Control: |
CNC/MNC |
Performance Classification: |
High-End CNC Machine Tools |
Processing Precision: |
0.005 |
We located In Changzhou City, About 1 Hours from Shanghai, China. We has committed to manufacturing solid carbide end mills, Drills, reamers, Inserts, Both standard and Nonstandard tools, offering high quality cutting tools, competitive price and unequaled customer service.
Our carbide cutting tools For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and For the woodworking industry.

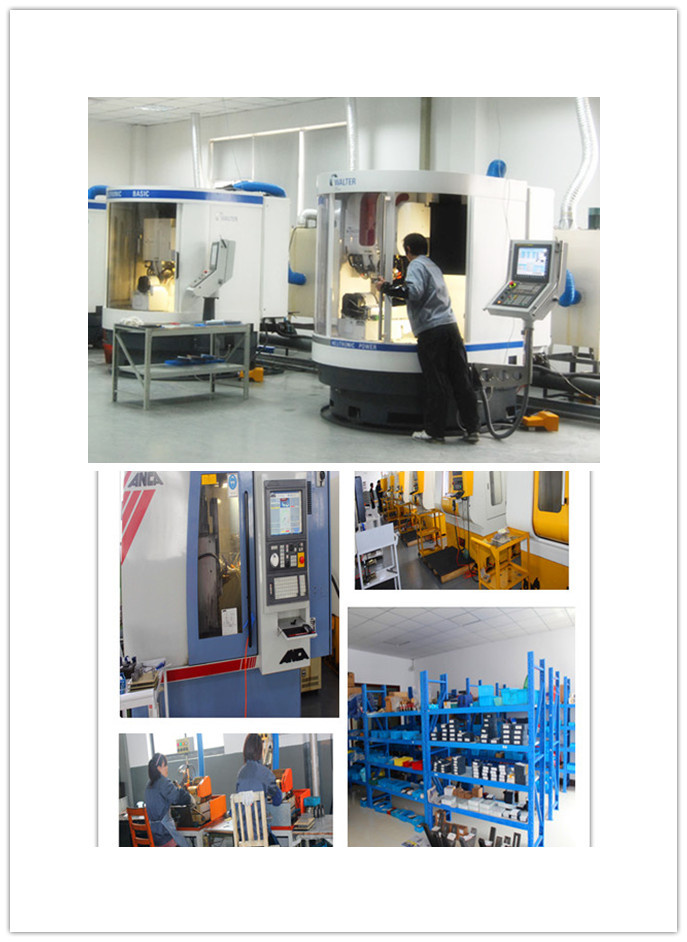

Efficient workshop and 5AXIS grind machines run by skillful operators. We have our partners as complementarities sited around our factory in 5 Km who is product turning tools, holder And others, they are all around our factory in 5 Km. So, you can trust us that we must satisfy your needs.
We earned reputation of good quality, Fast producting, Delivery in time, reliable service. Hiboo will continue to introduce some new series of tools to meet different requirements. Sincerely Welcome to inquiry products and visit our company, thanks.
