Specifications

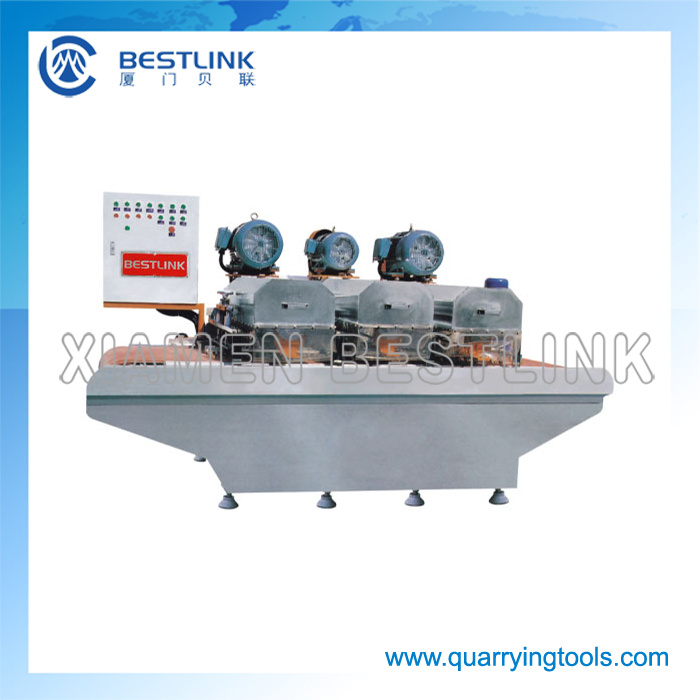

1.Portable Automatic Mosaic Cutting Machine
2.For Cutting ceramic tile, sandstone, slate, granite and marble
3 Easy to use.
4.Competitive factory price.
Products Feature
This machine is suitable for cutting polished tiles into high level mosaic with different size,
The cutting size of 10mmx10mm to the min , and any shapes as lozenge or hexagon etc.
And the face chamfer can be finished at the same time , without any extra processing manually.
With stable mechanical properties, it could press the cutting pieces well when cutting mosaic for small size, so that keep the small cutting pieces won't fly out ,with high efficiency and good quality.
Main Technical Data
600 TYPE |
Qty of cutting head | 1 head | 2 head |
Diameter of cutting head | Φ150-300mm | Φ150-300mm |
Width of processing | 12-600mm | 10-600mm |
Speed of conveyer belt | 1-5m/min | 1-5m/min |
Width of conveyer belt | 621mm | 621mm |
Total power | 16kw | 33.5kw |
Outer size | 2.2x1.6x1.8m | 2.3x1.8x1.8m |
Total weight | 1500kg | 1957kg |
800 TYPE |
Qty of cutting head | 1 head | 2 head |
Diameter of cutting head | Φ150-300mm | Φ150-300mm |
Width of processing | 12-800mm | 10-800mm |
Speed of conveyer belt | 1-5m/min | 1-5m/min |
Width of conveyer belt | 821mm | 821mm |
Total power | 16kw | 33.5kw |
Outer size | 2.3x1.8x1.8m | 2.5x1.8x1.8m |
Total weight | 1700kg | 2000kg |
Here is packing details for your checking:
We are manufacturer, there are factory site:
Mosaic moulds and example of Mosaic stone
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world NO.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
