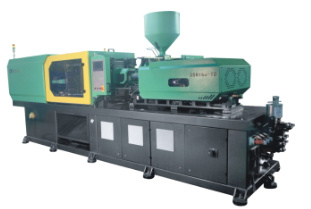

SEGMENT | ITEM |
| DSH 160/600 | DSH 220/840 | DSH280/1080 |
A | B | C | A | B | C | A | B | C |
INJECTION UNIT | Screw Diameter | mm | 40 | 45 | 50 | 45 | 50 | 55 | 50 | 55 | 60 |
Screw L/D Ratio |
| 24.7 | 22 | 19.8 | 24.4 | 22 | 20 | 24 | 21.8 | 20 |
Shot Volume | cm³ | 288 | 365 | 451 | 405 | 500 | 605 | 500 | 605 | 720 |
Injection Weight | g | 262 | 332 | 410 | 368 | 455 | 551 | 455 | 551 | 655 |
Injection Rate(PS) | g/sec | 121 | 153 | 189 | 153 | 189 | 228 | 184 | 223 | 266 |
Plasticizing Capacity |
| 19.8 | 25 | 30.9 | 24 | 29.6 | 35.8 | 26.6 | 30.3 | 34.4 |
Injection Pressure | MPa | 210 | 166 | 134 | 207 | 168 | 139 | 215 | 177 | 149 |
Screw Speed | r/min | 0-225 | 0-190 | 0-180 |
Nozzle Portrusion | mm | 45 | 45 | 45 |
Nozzle Shape |
| Open-style Nozzle | Open-style Nozzle | Open-style Nozzle |
Number of Heating Zone |
| 3+1 | 3+1 | 3+1 |
CLAMPING UNIT | Clamping Force | KN | 1600 | 2200 | 2800 |
Toggle Stroke | mm | 450 | 540 | 550 |
Space Between Tie Bars | mm | 455*450 | 530*530 | 580*580 |
Min./Max.Mold Thickness | mm | 150-500 | 200-560 | 200-600 |
Ejector Force/ Stroke | KN/mm | 35/110 | 65/160 | 65/160 |
Ejector Number | PC | 5 | 9 | 9 |
ELECTRICAL SYSTEM | Max.Pump Pressure | MPa | 17.5 | 17.5 | 17.5 |
Pump Motor Power | Kw | 18.7 | 29 | 29 |
Heater Power | Kw | 9.84 | 12.93 | 16.9 |
OTHER | Machine Weight | Kg | 5800 | 8000 | 10000 |
Machine Dimension | mm | 5.14*1.29*2.13 | 5.7*1.4*2.13 | 6.2*1.5*2.13 |
MOLD REQUIREMENT | Min.Mold Thickness (L*W) | mm | 295*295 | 345*345 | 375*375 |
Max.Mold Thickness (L*W) | mm | 450*450 | 525*525 | 575*575 |
Mold Parallelism |
| ≤0.4 | ≤0.4 | ≤0.4 |
High rigidity clamping unit: Small deformation of the temperature, high dimensional accuracy of product.
High rigidity frame:Overall bending and wielding smooth profiles, ensure a smooth working machine at high speed, high pressure.
Injection&the whole shift liner guides:Guided precision,low resistance,fast speed injection.
Double-cylinder into the whole:Injection force closure,effectively improve the precision of injection.
Transfer mode ring electric locking device: Ensure longterm reproducibility of clamping force,upgrade products repeatability.
Selflubrication bushings:Enhance clamping parts machine hinge life,reduce the use of lubricants,lifting equipment cleanliness.
No welding the oil design: Ensure the long-term safety of hydraulic systems,reliable operation.
Precision bypass filters: Ensure the long-term hydraulic oil in the new oil standard.
