ITEM | UNIT | FJN500 |
INJECTION UNIT |
Screw Diameter | mm | 90 |
Piston Diameter | mm | 150 |
Shot Volume | cm³ | 19428 |
Injection Weight | g | 13988 |
Injection Rate | g/s | 692 |
Injection Pressure | MPa | 87 |
Screw Speed | rpm | 0-110 |
CLAMPING UNIT |
Clamp Force | KN | 5000 |
Toggle Stroke | mm | 800 |
Space Between Tie Bars | mm | 820*820 |
Max.Mold Height | mm | 820 |
Min.Mold Height | mm | 300 |
Max.Daylight | mm | 1620 |
Ejector Stroke | mm | 250 |
Ejector Force | KN | 125 |
Ejector Number | PC | 17 |
OTHERS |
Max.Pump Pressure | MPa | 16 |
Pump Motor Power | KW | 45 |
Heater Power | KW | 85 |
Machine Dimension (L*W*H) | mm | 10.0*2.4*2.2 |
Machine Weight | t | 31 |
Oil Tank Capacity | L | 1100 |

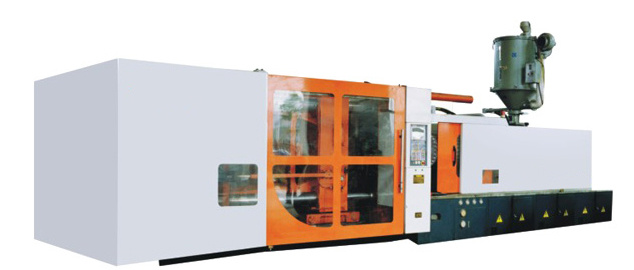

Advantages of introducing machine: FJ Series Large Capacity Low Pressure Injection Molding Department of specialty products company, dedicated high-capacity series, originated in China. Particularly suitable for large injection volume, low clamping force required by plastic molding process of production, maximum injection capacity of 80,000 cm3, the series has been widely used in plastic products, especially large-scale polyolefins (polyethylene, polypropylene) tube and other products.
Large injection capacity: maximum injection capacity of 80,000 cm³
Applications: especially suitable for large injection volume, low clamping force required by plastic molding process of production, the series has been widely used in plastic products, especially large-scale polyolefins (polyethylene, polypropylene) pipe fittings and other products.
