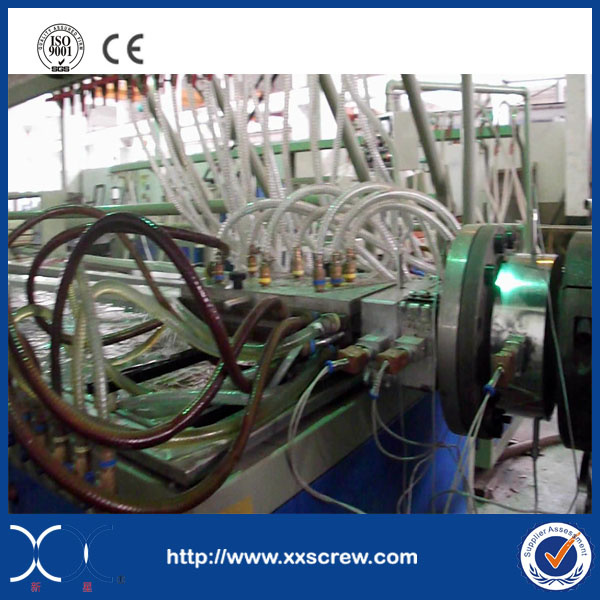

High-speed PVC profile extrusion line(YF Series)
1. YF series PVC profile production line mainly used for PVC door and window profiles, adopt the special designed and treatment screw and barrel, make the final product goes well.
2. The final product width range: 180mm-600mm.
3. The production line according to different profile section and mold, use different specification of parallel twin-screw extruder, and configure the corresponding vacuum stereotyped units, traction machine, cutting machine, stacker and other auxiliary equipment.
4. The machine units mainly consist of the twin screw extruder, mold, vacuum foaming tank, haul-off machine, cutting machine and stacker.
5. The host screw and barrel temperature control system: The screw temperature control through the oil cooling system while the barrel temperature control through the air cooling fan and ring heater.
6. The machine units adopt the famous brand electrical system: ABB speed governor, Japanese RKC temperature controller, SIMENS contactor.
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80 | SJZ-92 |
| Screw diameter | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| Max. Rotation speed of screw | 37.5 | 37.5 | 37.5 | 37.5 | 25 | 25 |
| Main motor | 15 | 18.5 | 22 | 30/37 | 55 | 110 |
| Capacity | 60 | 80 | 120 | 220 | 3200 | 600 |
| Central height | 1000 | 1000 | 1000 | 1000 | 1100 | 1200 |
| Net weight | 3000 | 3000 | 3500 | 4000 | 5500 | 8000 |
| Dimensions | 3.3*1.2*2.1 | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2.5 |
XINXING brand was founded in 1993 at zhoushan city, Zhejiang province, China for barrel and screws manufacture;
Shanghai XINXING was founded in 1999 at Shanghai City, China for complete extrusion machine manufacture for PVC/PE pipe and pelletizing line.
With more than 20 year's experience XINXING has the ability to design and produce different extrusion line for PVC/PE/PP/PET/PS/ABS...Different raw materials with different final products like the PIPE, PROFILE, BOARD, SHEET, PELLET and so on.
And XINXING has exported all the lines to more than 30 countrys in all over the worl.
The mainly market for XINXING is Middle East, Eest Euro, South Asian and South American.
With 20 year's working in the interner market, XINXING has got strong market feedback, and set up reliable agent relation in the above market.
XINXING has the ability, the experience and the willing to offer professional and strong support to all the customer.
