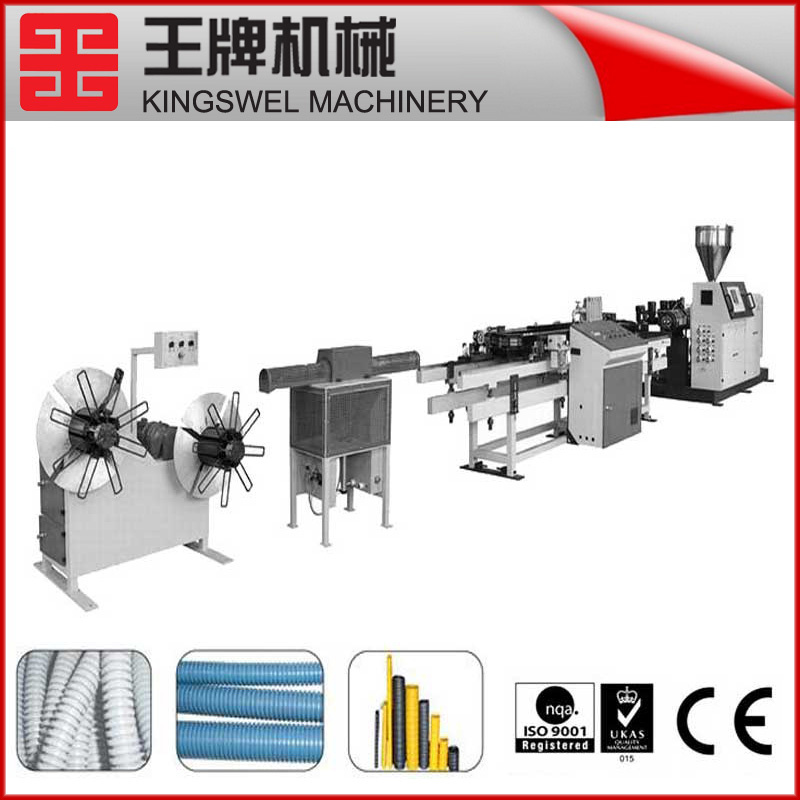

PA/PE/PP/PVC High speed single wall corrugated pipe extrusion line
Different extruder and forming machine will be chosen for different material: PA, PE, PP, UPVC, etc. The pipe is mainly use for electrical cable or wire protection, drainage pipe of washing machine, pipe in dust collector, automobile industry, lamp industry and air-exhausted pipe etc.
Standard single wall high speed corrugated pipe forming machine: Can produce two diameters or three diameters' single wall corrugated pipe in the same mould blocks, which reduce the cost of the moulds and reduce the time for changing the mould blocks, increase the efficiency.
High speed corrugated pipe forming machine: Forming blocks running without chain, blocks installed directly in the gear groove, rely on 9Mn2V material forming blocks with machining accuracy of 0.01 mm, realize high speed stable running.
Material: PA, temperature range: -40-115 centigrade, the product does not contain halide, anti-oil, anti-acid. Anti-inflammation rate is HB (U94). The black color pipe is ultraviolet resistant.
Material: PP, temperature range: -20-110 centigrade, the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
Material: PE, temperature range: -40-80 centigrade, the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
| Model | DBWG-45 | DBWG-50 | DBWG-65 | DBWG-90 |
| Screw diameter (mm) | 45 | 50 | 65 | 90 |
| L/D | 30 | 30 | 30 | 30 |
| Pipe diameter range (mm) | 4.5~13 | 16~32 | 25~48 | 90~160 |
| Mold block quantity (pairs) | 52~70 | 52~70 | 52~60 | 72 |
| Producing speed (m/min) | 16~20 | 12~16 | 6~10 | 2~4 |
| High speed type | Model | Screw diameter (mm) | Pipe diameter range(mm) | Producing speed (m/min) |
| DBWG-50T | 50 | 7~32 | 20~25 |
| DBWG-45T | 45 | 5~25 | 20~25 |
Shanghai BAOCHONG Complete Sets of Plastic Equipment Co., Ltd is an affiliate under KINGSWEL GROUP dedicated to designing, manufacturing and sales of plastic extrusion equipments. Based on 18 years experience of designing and fabricating high quality machines in Taiwan, KINGSWEL GROUP invested in establishing extrusion machines manufacturing base in Shanghai in 1999.
Depending on KINGSWEL GROUP's abundant human resource and normative administrant system, accompanied with tens of world-famous domestic and foreign vendors, we strive for providing customers with professional plastic extrusion line of excellent performance meanwhile competitive price.
Shanghai BAOCHONG Complete Sets of Plastic Equipment Co., Ltd is also the cooperative manufacturer of Japanese GSI Greos Company and Switzerland BEXSOL SA in Shanghai region, there are tens of extrusion equipments being exported to Europe, Japan and southeast Asia every year.
Shanghai BAOCHONG Complete Sets of Plastic Equipment Co., Ltd not only provides customers with high quality "KINGSWEL MACHINERY" Brand machines, but also deal with processing business of all kinds of plastic precision tubes and profiles products for clients, mainly include all kinds of precision small tube, automobile tubing system, 3D printing consumables, LED lampshade, all kinds of profiles, fluorine plastic tube, etc.
KINGSWEL GROUP has the most widely sales and service network of mechanical and electrical products, and will gradually develop into the largest industrial products chain center in China. KINGSWEL GROUP has already become one of the largest plastic processing equipment manufacturers in China, and the products of "KINGSWEL MACHINERY" has become a well-known brands in plastic industry. KINGSWELL GROUP extends year by year, it has constituted a comprehensive group complexes who covers plastic machines, marketing management, high-tech plastic products, chemical raw materials, urban greening engineering, industrial machine tool operation, investment resources integration and import and export trading etc.
Our faith: Let customers find our advantages continuously!
