Introduction of Plastic Coating Pipe Extrusion Line:Designed and manufactured by KINGSWEL MACHINERY BAODIE Company, this Coating Pipe Extrusion Line is designed for coating one or several PVC, PE, PP or ABS layer around common iron pipe, stainless steel pipe and aluminum pipe etc. Plastic coating pipe is suitable for both outdoor and indoor applications, especially for decoration, heat solution and anti-corrosion etc.

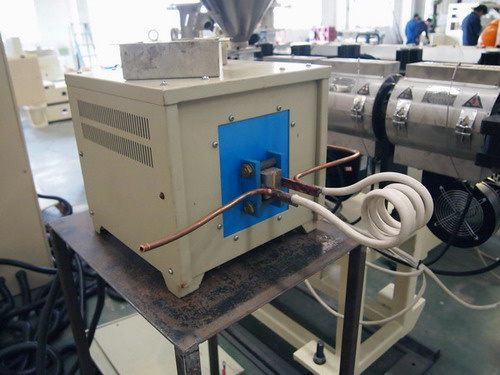

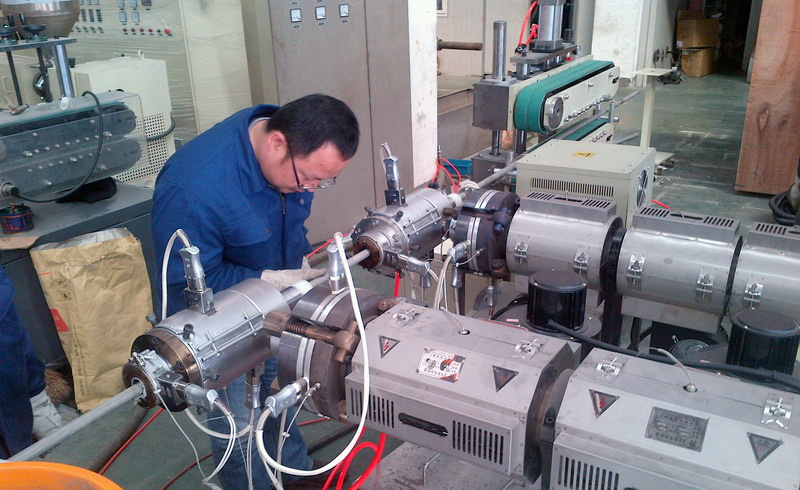

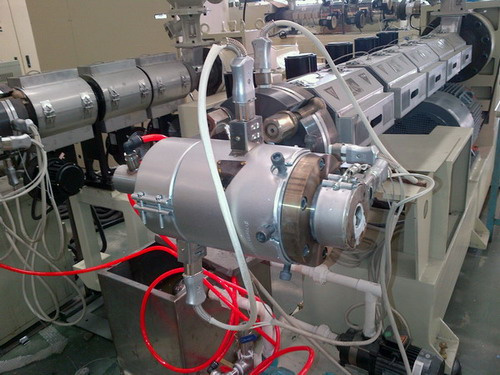

This Plastic Coating Pipe Extrusion Line is composed of steel pipe stacking conveyor, haul-off (front and back for each set), high frequency heating device, right angle coating mold, single screw extruder, cooling equipment. Each steel pipe can be connected by special connector, realize continuous coating extruding production. The final product has features of dense coating, uniform thickness plastic layer, stable dimension, smooth and clean surface.
|
Model |
Max. coating pipe diameter(mm) |
Thickness of plastic layer (mm) |
Screw diameter(mm) |
Max. producing speed(m/min) |
Installation power(kw) |
|
CPSJ-50 |
25 |
0.2~5.0 |
50 |
12 |
50 |
|
CPSJ-65 |
50 |
0.2~5.0 |
65 |
16 |
75 |
|
CPSJ-75 |
110 |
0.2~5.0 |
75 |
18 |
90 |
Shanghai BAOCHONG Complete Sets of Plastic Equipment Co., Ltd is an affiliate under KINGSWEL GROUP dedicated to designing, manufacturing and sales of plastic extrusion equipments. Based on 18 years experience of designing and fabricating high quality machines in Taiwan, KINGSWEL GROUP invested in establishing extrusion machines manufacturing base in Shanghai in 1999.
Depending on KINGSWEL GROUP's abundant human resource and normative administrant system, accompanied with tens of world-famous domestic and foreign vendors, we strive for providing customers with professional plastic extrusion line of excellent performance meanwhile competitive price.
Shanghai BAOCHONG Complete Sets of Plastic Equipment Co., Ltd is also the cooperative manufacturer of Japanese GSI Greos Company and Switzerland BEXSOL SA in Shanghai region, there are tens of extrusion equipments being exported to Europe, Japan and southeast Asia every year.
Shanghai BAOCHONG Complete Sets of Plastic Equipment Co., Ltd not only provides customers with high quality "KINGSWEL MACHINERY" Brand machines, but also deal with processing business of all kinds of plastic precision tubes and profiles products for clients, mainly include all kinds of precision small tube, automobile tubing system, 3D printing consumables, LED lampshade, all kinds of profiles, fluorine plastic tube, etc.
KINGSWEL GROUP has the most widely sales and service network of mechanical and electrical products, and will gradually develop into the largest industrial products chain center in China. KINGSWEL GROUP has already become one of the largest plastic processing equipment manufacturers in China, and the products of "KINGSWEL MACHINERY" has become a well-known brands in plastic industry. KINGSWELL GROUP extends year by year, it has constituted a comprehensive group complexes who covers plastic machines, marketing management, high-tech plastic products, chemical raw materials, urban greening engineering, industrial machine tool operation, investment resources integration and import and export trading etc.
Our faith: Let customers find our advantages continuously!
