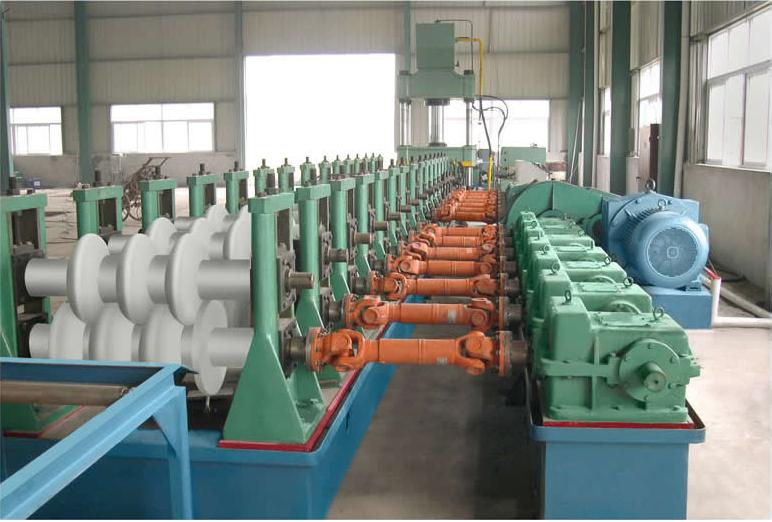

Highway Protective Guardrail Roll Forming Machine
SUITABLE MATERIAL
Raw material: Q215, Q235A etc.
Thickness of coil: 1.5-4.5mm
Width of coil: Max 480mm
TECHNICAL SPECIFICATION &LINE COMPONENTS
(1) Hydraulic un-coiler
Capacity of loading: 5T
Motor: 2.2kw
Inner diameter of shaft: 460-520mm
Outer diameter of coil: Max 1200mm
(2)Leveling and feeding device
(3)Hydraulic punching device
Two molds punching
Punch material: Cr12
Pressure system: 0~16MPa
(4)Roll forming machine
Use independent frame (nodular cast iron) for high accuracy forming, and the stands can be changed easily
Forming step: 17-step
Diameter of shaft: 90mm
Material of roller: GCr15
Forming speed: 3-10m/min
(5)Hydraulic cutting device and run-out table
(6)PLC control cabinet
Panasonic brand PLC
Yaskawa brand Inverter
Omron brand Encoder
Touch screen operation
Digital display, English version
