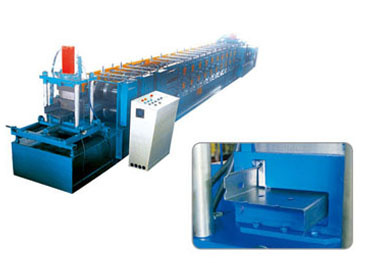

The Z purlin roll forming machine is used to produce Z shape purlins from steel coil sheets. The machine is characterized by stable and rational forming process, and its products are attractive, durable and of high strength. Controlled by PLC system the production is automatic.
Machine Components
Manual/Hydraulic Un-coiler...1 set
7 roll leveler...1 set
Roll forming machine...1 set
Hydraulic punching device...1 set
Hydraulic cutting device...1 set
Hydraulic station...1 set
Product table...1 set
Control cabinet...1 set
Working Flow
Decoiling --> Sheet Guiding --> Sheet Leveling --> Roll Forming--> Punching Hole--> Cutting to Length--> Run-out
Main Technical Data
1) forming stations: 14
2) forming thickness: 1.5-3mm or as per customer's need
3) motor power: 15KW
4) hydraulic power: 5.5KW
5) control system: PLC automatic control
6) un-coiler: Manual or hydraulic
7) un-coiler capacity: 5 tons
