About us
BOTOU HUIKEYUAN ENGINEERING CONTROL CO, . LTD
is the "Important individually-run enterprise"of Botou City. For 20 years we have devoted ourselves to manufacture of metal-plate cold forming machines and now we have achieved unique management pattern and product development ability
Our advantage
[] Excellent reputation for sound and innovatitive engineering
The use of CAD CAM technology ensures the highest standard of forming precision
[] Experienced technicians team
Good at installing and debugging and ensure the machine run durably and smoothly
[] Experience in exporting to oversea countries
Engineers available to service machinery overseas
[] 2 years warranty - double than general
The warranty is effective for the whole production line with free replacements.

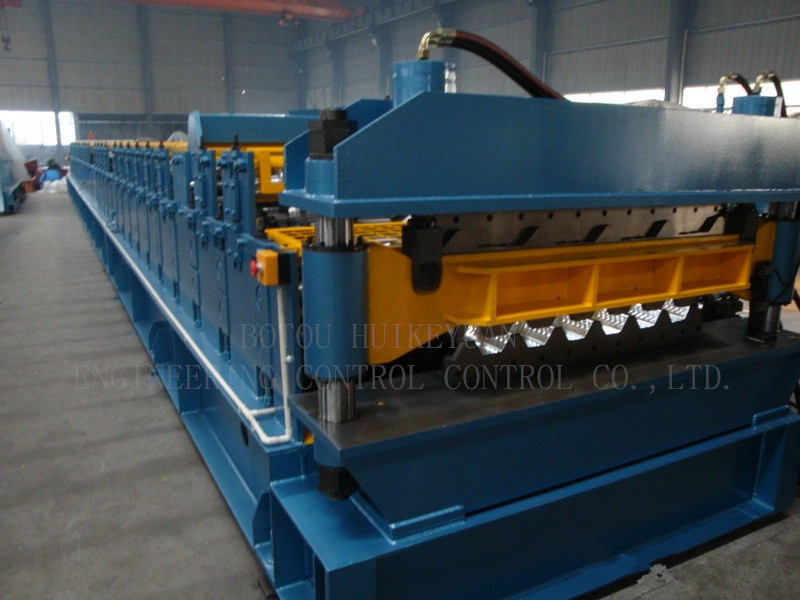

HKY 35-125-750 Roll Forming Machine
Technical Parameters
1. Main Motor Power: 7.5KW
2. Hydraulic Station Power: 4KW
3. Hydraulic Oil Pump: CB-E310
4. Sprocket: P-25.4
5. Roller Station: 13
6. Yield Strength: 32MPa
7. Diameter of Principal Axis: 70mm
8. Material of Roller: 45#steel hard chrome plating
9. Material of Blade: Cr12
10. Processing Speed: 8-10m/min
11. Thickness: 0.3-1mm
12. Installation Dimension (L*W*H): 9m*1.5m*0.8m
13. Wave Height: 35mm
14. Wave Length: 125mm
15. Wave Width: 750mm
16. Total Weight: 5.5T
17. Equipment Parts: Forming machine, hydraulic cutter, hydraulic station, electric controlling system and counter
We also can design as per your request!
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. ur products won acclaim from all customers in domestic and abroad.
