Horizontal Bead Mill (ZM, ZM-X, ZM-E, ZM-K)
Degold ZM seires bead mills are suitable for continuous wet grinding of solids in liquid materials, and they are widely used in paint, coating, ink, pigment, color paste, cosmetic, pesticide, non-metal mines industries.
There are various models such as 0.3L, 1.4L, 5L, 15L, 20L, 30L, 50L, 60L, 100L, 200L, 250L.
Grinding Container: Jacked with exchangeable inner cylinder.
Cooling System: Grinding container with spiral jacket for cooling water circulation.
Shaft Seal: ZM0.3: Lip seal, the others: Single mechanical seal or double mechanical seal.
Separator: Completely adjustable, self-cleaning dynamic gap separator, static gap separator.
Pump Type: Double diaphragm fluid transfer pump, gear pump, screw pump.
Electrical Control: Common control panel or explosion-proof control panel.
Safety and Monitoring Instruments: Pressure gauge in mill inlet and thermometer in mill outlet.
Materials Options: Machine parts, which contact the product and are subject to wear, are available in different materials, such as hardened steel, stainless steel, hard chrome-plated stainless steel, mold steel, ceramic.
Because there are different constructions mills here, please feel free to contact with us, we will recommend you the most suitabl e horizontal bead mill. Following table is only for reference. Different kinds constructions bead mills are different. We will prepare the exact introduction for you according to your production requirement.

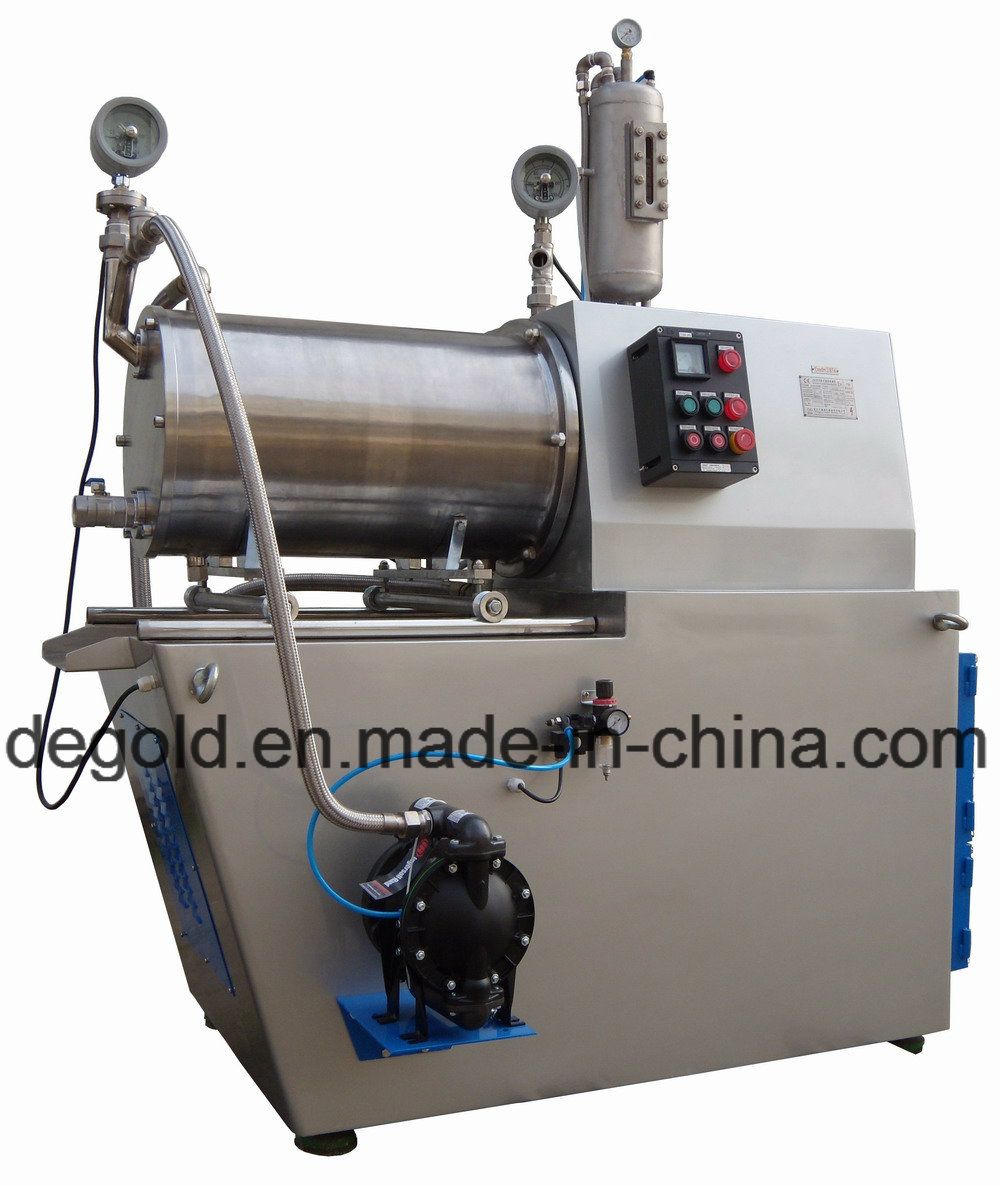

ZM50SB4410-E horizontal bead mill ADVANTAGES
1) 50 Litres,
2) Double mechanical seal,
3) Ex proof,
4) Tungsten carbide inner grinding chamber and grinding discs,
5) Double-diaphragm fluid transfer pump,
6) Gap separator, which is suitable for 0.1-0.2 grinding medium,
7) Nano grinding.
Please contact with us to get more exactly technical data.
|
|
ZM50-E |
|
Effective grinding chamber volume (L) |
50 |
|
Main motor power (kW) |
37 |
|
Grinding medium load (L) |
About 85% of the grinding chamber volume |
|
Grinding shaft rotary speed (r/min) |
900 |
|
Adjustable range of materials flow (L/min) |
0-60 |
|
Max. cooling water consumption (t/h) |
2.5 |
Since its establishment in 1995, Chongqing Degold Machine Co., Ltd. Has always endeavored to develop grinding and mixing technique in chemical industry. Now we have developed various models Horizontal Bead Mills and Dispersers to fulfill industrial production needs ranging from paints, inks, pharmaceuticals, food, dyes, cosmetics, petrochemicals, and non-mental mines.
All Degold technical experts have been in this field since 80s in the 20th century. We produce strictly as the requirements of ISO9001: 2008 Quality System and CE standards. Degold designs, develops, constructs, and installs production lines and advises, trains customers.
Machines are popular in domestic and oversea market. We have cooperated with so many famous painting and powder coating manufactures such as Akzo Nobel, 3M, Clariant, and Sherwin-Williams Co., Ltd. etc.
From 2007, we have begun to service oversea customers directly. Our machines have been exported to many countries and regions such as Australia, Argentina, Belgium, Brazil, Colombia, Chile, Indonesia, India, Iran, Malaysia, New Zealand, Peru, Paraguay, Pakistan, Poland, Singapore, South Africa, Spain, Tunisia, Thailand, Uruguay, Vietnam etc.
