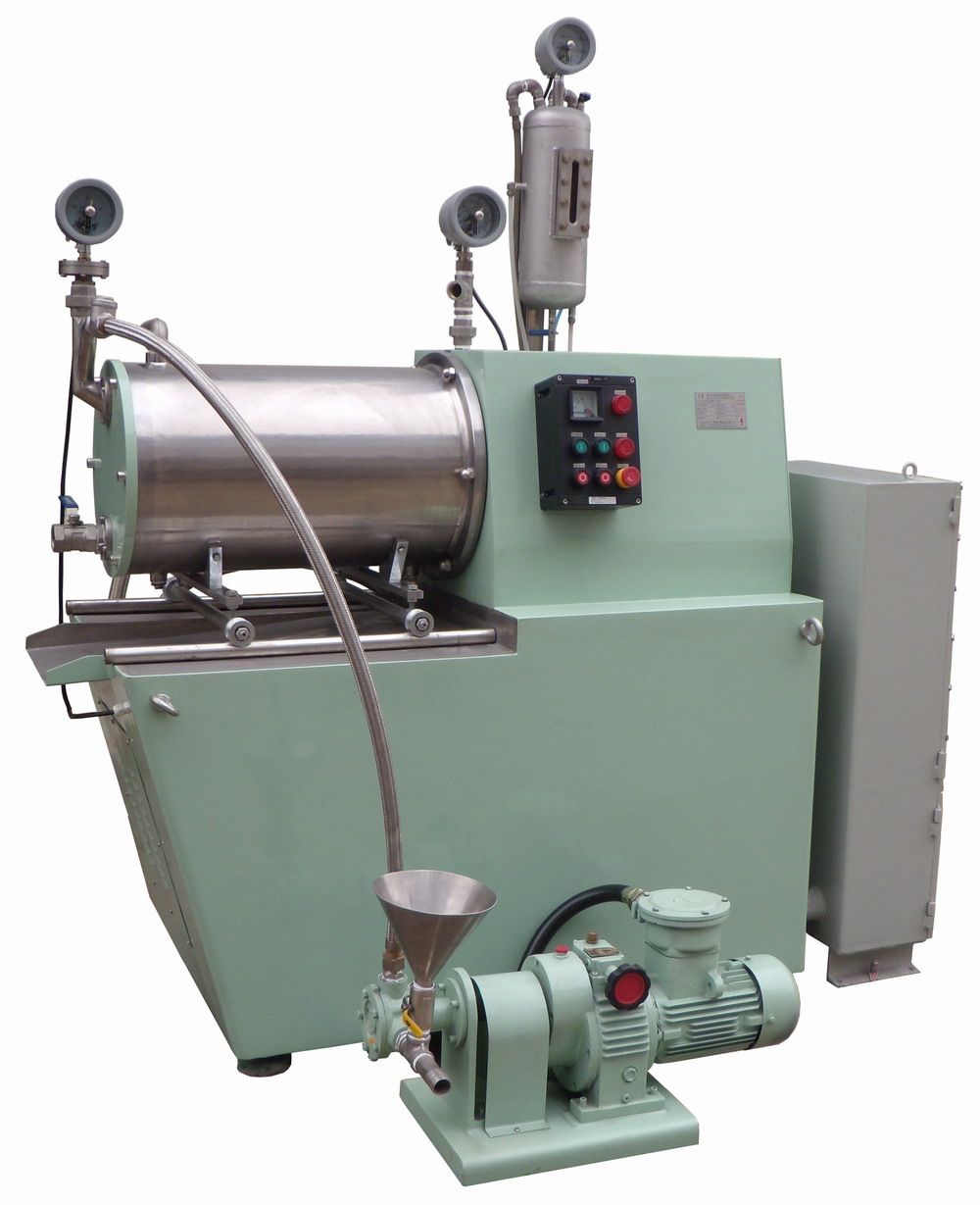

50L horizontal bead mill-Model (ZM50 Series)50L bead mill/sand mill are the min. size we produce for the production scale. The effective grinindg chamber is 50 liters, then they suitable for large scale batches.

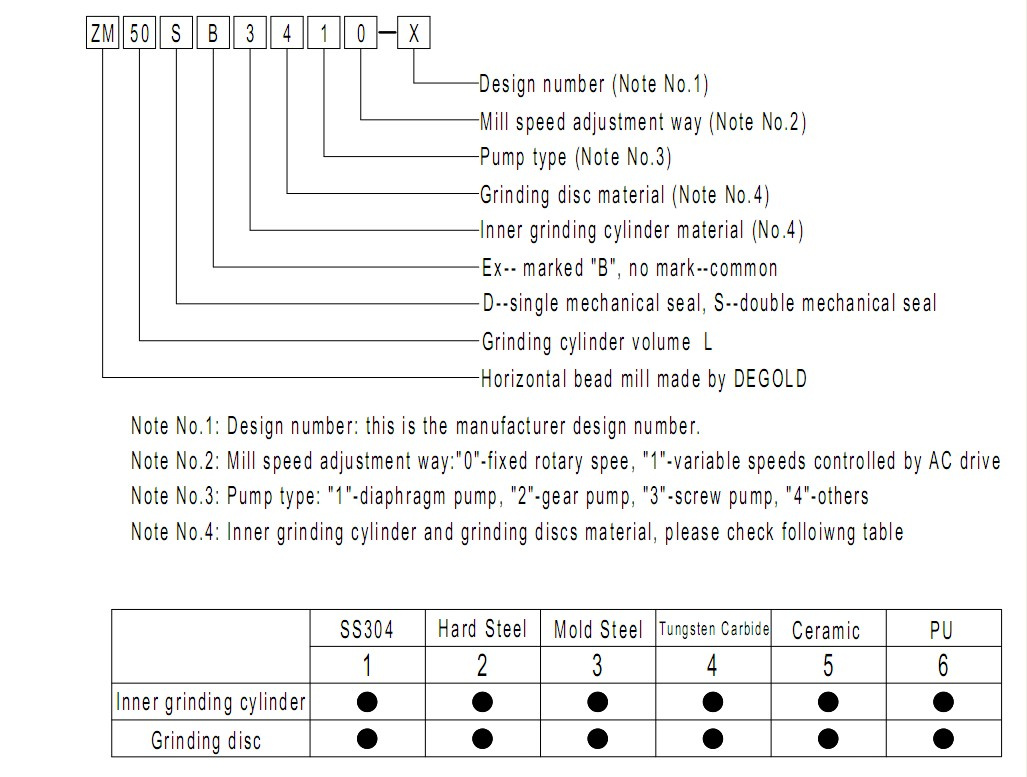

"ZM50SB3320-X Specification" specification.
1) 50L
2) Double mechanical seal
3) Ex proof
4) Mold steel for inner grinding chamber and grinding discs
5) Gear pump
6) Without AC drive
7) Dynamic gap separator
8) Chilling water jacket
Option:
1) Single mechanical seal, double mechanical seal.
2) Ex proof or Non Ex proof.
3) SS304, hard alloy, mold steel, ceramic, PU etc. materials selection.
4) Double diaphragm fuild transfer pump, gear pump, screw pump.
5) AC drive or without AC drive.
6) Dynamic gap separator or static gap separator.
Model |
Motor (kW) |
Grinding Container Volume (L) |
Production Capacity |
Weight (approx. ) |
Dimension (L× W× H)mm |
ZM0.3 |
0.75 |
0.3 |
|
50 |
640× 410× 485 |
ZM1.4 |
2.2 |
1.4 |
5-50kg/h |
500 |
655× 570× 885 |
ZM5 |
7.5 |
5 |
20-100 kg/h |
700 |
1250× 900× 1250 |
ZM15 |
15 |
15 |
30-150 kg/h |
800 |
1560× 1050× 1550 |
ZM20 |
18.5 |
20 |
50-200 kg/h |
980 |
1600× 1050× 1550 |
ZM30 |
22 |
30 |
50-300 kg/h |
1100 |
1860× 1100× 1550 |
ZM50 |
30 |
50 |
60-500 kg/h |
1300 |
2100× 1150× 1650 |
ZM60 |
30 |
60 |
60-600 kg/h |
1400 |
2100× 1150× 1650 |
ZM100 |
45 |
100 |
100-1000 kg/h |
2000 |
2250× 1280× 1640 |
ZM200 |
55 |
200 |
150-1500 kg/h |
2500 |
2250× 1280× 1735 |
ZM250 |
75 |
250 |
200-2000 kg/h |
2700 |
2800× 1280× 1765 |
ATTN: Different constructions horizontal bead mills have different technical data. Please contact with seller to get the exact suitable model and technical data.
|
