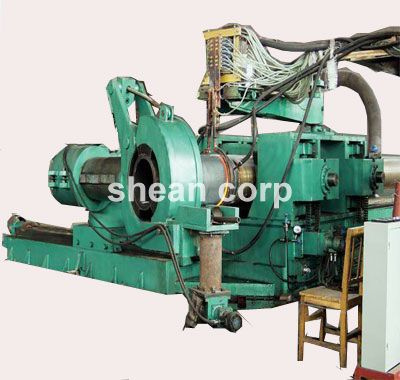

Hot Forming Pipe Bending Machine
Shean is specialized in manufacturing Bending Machine according to customers requirements.
Some features of Hot Forming Pipe Bending Machine:
1. Bend radius standardizing of Hot Forming Pipe Bending Machine:
Bend radius as far as possible to achieve one pipe-one mould and multi-pipe--one mould. For one pipe, regardless of whether there are several bends, how the bend angle, there is only one bend radius, because the bending machine don not replace the mould when bending process, this is one pipe-one mould. While, the multi-pipe one mould, refers to the same diameter pipes should use the same bend radius, which using the same set of moulds to bending different type pipes, to reduce the number of moulds.
2. Proper bend radius of Hot Forming Pipe Bending Machine:
The size of bending radius, determines the resistance force when pipe in bending process. In general, large diameter, their bend radius is small, when bending, easily occur winkle and slipping phenomenon, bending quality is difficult to ensure, so generally used the R value of mould, which two or three times of the diameter of the pipe.
If you are interested in our Hot Forming Pipe Bending Machine, pls visit our factory to know more information about Medium Frequency Bending Machine. Shean professionally manufacture elbow forming machine, hydraulic press, medium frequency, tee machine, bevel machine, moulds, steel pipe, pipe fittings and so on.
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
2 |
1220 |
20 |
6500 |
4 |
600 |
3 |
1020 |
20 |
6500 |
4 |
500 |
4 |
820 |
20 |
6500 |
4 |
400 |
5 |
720 |
20 |
6500 |
4 |
320 |
6 |
630 |
20 |
6500 |
2 |
300 |
7 |
530 |
14 |
6500 |
2 |
160 |
8 |
426 |
14 |
6500 |
2 |
130 |
9 |
325 |
14 |
6500 |
2 |
84 |
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
