AB-F2 is wrought iron processing equipment used to hot press the ends of square steel, flat steel and round bar into fishtail pattern, Moreover, it's simple in operation and easy to use.
|
|

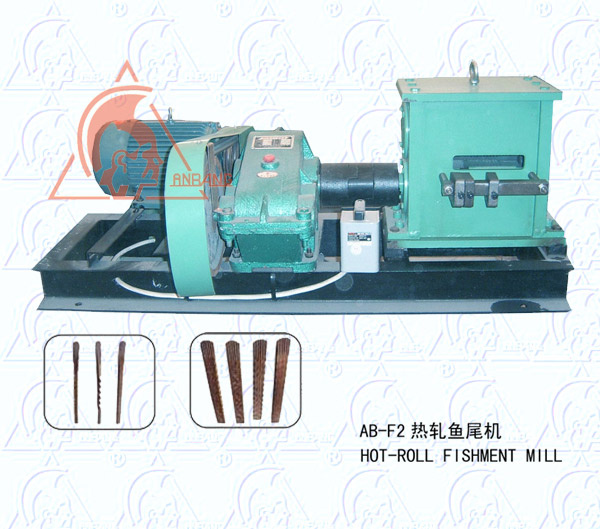

AB-F2 Hot-Roll Fishplate Mill |
Max Working Ability |
Square Steel |
≤16mm×16mm |
|
Round Steel |
≤Φ16mm |
|
Flat Iron |
≤10mm×60mm |
|
Motor Performance |
Power:4KW Voltage:380V |
Main Features |
1)It is not necessary to beat flat the bevel edge, It can finish the fishtail decoration production directly by this machine.
2)The roller is made with heatproof alloyed steel; the roller has small metamorphosis and long lifespan in producing.
3)The material entrance clamp apparatus has the following advantages: being adjustable, rational localization, being not restricted by the nonstandard material size, good applicability.
4)On the back holdup plate of the machine, there is a rolling size index age. We can according to the product requirement select the rolling length localization size and achieve the optimum result.
5)The roller has three parts: coarse veining, thin veining and smooth rolling. |
|
Packing Dimension |
1250mm×800mm×600mm |
|
N.W. (kg) |
350 |
|
G.W. (kg) |
400 |
Shijiazhuang Anbang Machine Make Co., Ltd. is a professional manufacturer in producing iron craftwork and process equipment which founded in 1996. The whole series of manual, time and program controlled electric iron craft fitting machine sold well in more than 20 provinces of China and expand well markets in Europe, North America, Japan, South Korea and various countries of Southeast Asia. It is well received by home and broad customers. The equipment has got certain popularity and good reputation, and made a due contribution to the development of the iron craft trade.
Through 12 years' striving, An Bang has already developed into a standard mechanical processing enterprise with a large scale 185 acres occupation and 9000 square meter construction area. 170 employees, 21 scientific staff and more than 70 various large machines. In addition, the factory has mould making workshop, iron skill workshop, press and forge workshop, cast steel workshop. The factory can produce two main categories including 33 kinds of iron craft equipment, all kinds of iron mould and more than 1000 kinds of iron craft in shape of flowers and leaves, and iron craft semi-finished articles. We can produce all kinds of cast steel fitting, forged fitting, stamping, iron art component and iron art product. We can produce all kinds of wrought iron machine, wrought iron fitting, wrought iron product.
An Bang will devote itself to the iron craft's development of China, and our equipment is willing to be as the foundation for those who want to success in this trade.
