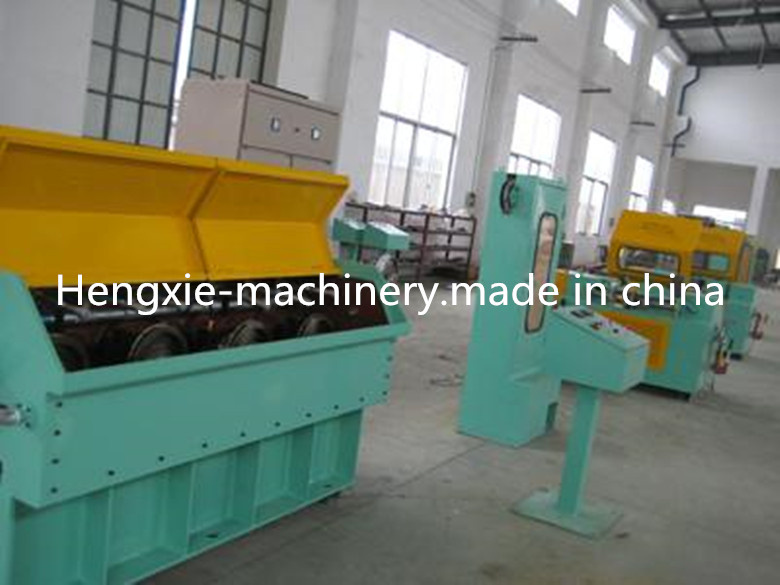

17DS medium wire drawing machine
I. Compositions of equipments
| Name | Quantity |
| 1.Pay-off shelf | 1 set |
| 2.HXE-17DS Main drawing machine | 1 set |
| 3. HXE-180 Tension controller | 1 set |
| 4.HXE-WS500 Take-up machine | 1 set |
| 5. Electric cabinet | 1 set |
| 6. Operation panel | 1 set |
| 7. User manual, including inverter instruction, Installation layout, etc |
| 8. Accessories |
II. Main Technical parameters
1.Usage: Bare copper wire drawing
2.Inlet diameter:2.5mm-3.2mm
3.Outlet diameter:0.4mm-1.6mm
4.Speed:outlet diameter:0.7mm -0.4mm,2000-1400mpm
1.0mm -0.7mm, 1200-700mpm
1.6mm -1.0mm, 700-500mpm
5.Die Nos.17 pieces/Max, 30mm-15mmT or 25mm-10mmT, the finished die 25mm-10mmT
6.Decrease section ratio of m/c:18.18%+13.58%
7.Frame: Iron casted
8.Capstans: Ceramic Tungsten, 4-tier unity
9.Capstan diameter:250mm
10.Final capstan diameter:250mm
11.Main motor: AC 3 phase 55KW, controlled by inverter independently.
12.Take up motor:AC 3phase 11kw,controlled by inverter independently.
13.Take up capacity:250kg for diameter 500mm iron spool ,Max. weight 500kg for 630mm spool.
14.Spool size:diameter500mm-630mm/Max (customize)
15.Traverse motor: 90W reversible motor control, transmission by timing belts
16.Transmission type: by precious gears
17.Reverse system: PID synchronous control spool
18.Detective device: air tension control
19.Brake: Disc brake
20.Capstan lubrication:full immersion
21.Lubrication capacity: 120L/min
15.Machine dimension(L*W*H):2100*1022*995mm
