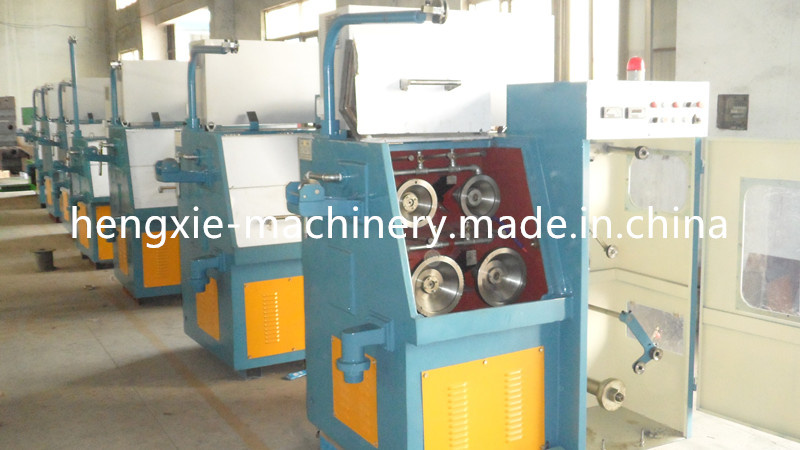

HXE-22DS fine wire drawing machine -high productivityMain technical parameter
Usage | Draw copper wire |
Inlet size | 0.6mm-1.2mm |
Outlet size | 0.1mm-0.32mm |
Machine speed/max | 2500m/min |
Die number | 22, Dies size: 25mm×8-10mmT |
Slip ratio of machine | 1st -21st 15%, 22nd 8% |
Wire drawing mode | standing-mode and 4axes |
Driver | by dual inverters control |
Main motor | 11KW AC 3 phase motor |
Spooler motor | 3.7KW AC 3 phase motor |
Capstan | steel with ceramic coating |
Max capstan diameter | 242mm |
Max fix speed capstan | 207mm |
Machine structure | cast iron |
tension control | weight balance by swing arm |
Spool size | 300mm |
Take up | shaft type |
Brake | magnetic brake |
Drawing Lubrication | spray |
Power source | customize |
Machine dimension | 2050L*1600W*1900H |
Machine weight | 2500KG |
HXE-14DT Main drawing machine
1.Material:Q235A
2.Structure
2-1.Frame is weld by steel plate, sand blasting and anneal to eliminate the inner stress.
2-2.Further processed by exactitude milling machine.
3.Wire inlet location:Located on the left of machine, 6 bores.
4.Axes Material:45# steel. Precision: HRC25/27
4-3.Eliminate inner stress, improve the rigidity.
5.Capstan Ceramic coating,2pcs. Loading&unloading the capstans, fixed tightly by cone model, capstan could be displaced according to the die location, avoid break the precision of axes.
6.Die Seat
6-1.The first die is independent .The 2nd /13rd die is founded by milled iron, small, increase operating room.
6-2.Die seat could be displaced according to the location of capstan.
- Lubricating
7-1.Over the capstan and dies, has floating water pipe, won't impact the wire pointing.
7-2.The 1st and 14th die, it is lubricated separately.
8.Bobbin size:300mm(customize)
9.Bobbin speed control :
9-1.By swing arm, revising the spooler automatically.
9-2.Regulating the tension according to the different sizes of outlet diameter.
10.Traversing unit:
10-1.110W synchronous motor, traverse width 270mm (Max)
10-2.The bearing is slippery, high rigidly and fray slowly Certification
In exhibition
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
