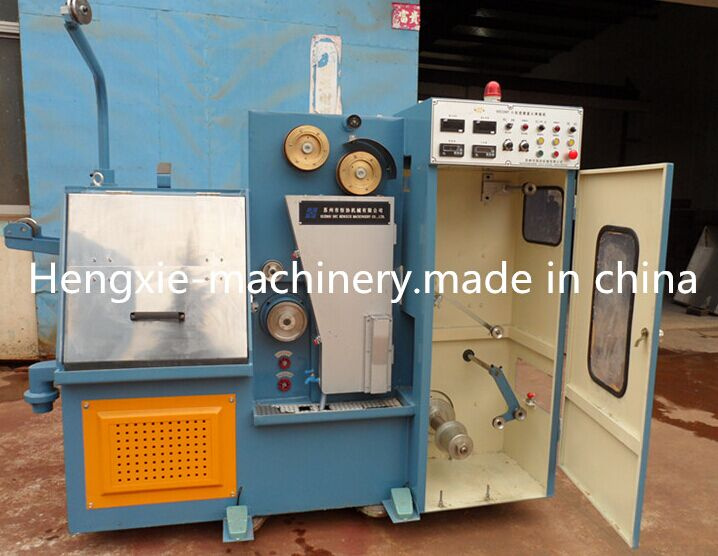

HXE-22DT COPPER WIRE DRAWING MACHINE WITH ANNEALING
22copper wire drawing machine with annealing is used draw and annealer single bare copper wire from 0.6-1.2mm to 0.1-0.32mm.
Technic Detail
Inverter control Dual inverter control
Max.speed 2000m/min
Inlet diameter 0.6-1.2mm
Outlet diameter 0.1-0.32mm
Die numbers 22
For any require, for any question, please feel free to contact me.
I will answer you as soon as possible.
Slip ratio of m/c 13%+8%
Frame Welded by steel plate
Capstan Ceramic plasma or Tung sten
Capstan siez 242.85mm
Fix speed capstan size 199mm
Spooler bobbin size 300mm
Bobbin loading Shaft type
Spooler capacity 50Kg
Annealing method DC Three-section annealing
Main motor 11KW
Spool motor 3.7KW
Annealing current DC300A
Annealing voltage DV50V
Annealing power 16KVA
Steam quantity 8Kg/h
Cooling water capacity 150L/min
Compressed air capacity 0.4-0.6Mpa,15L/min
Power source 380V 50/60HZ
Dimension 2100*1600*1700
Weight 3000KG
