fine wire &cable drawing machine with continous annealer -high productivity
Specification
1.inlet size:0.8mm-1.6mm
2.outlet size:0.25mm-0.6mm
Main technical parameter
Usage | fine copper wire drawing and annealing |
Inlet diameter | 0.6mm-1.2mm |
Outlet diameter | 0.1mm-0.32mm |
Max. mechanical speed | 2000m/min |
Dies | 22dies |
Slip ratio | 15%, Finished capstan slip ratio: 8% |
Main motor | AC 3 Phase 15KW |
Take up motor | AC 3 Phase 5.5 kw |
Take up capacity | 50kg for diameter 300mm iron spool |
Spool size | diameter 300mm/Max (customize) |
Capstans | tungsten carbide coated |
Capstan lubrication | Spray |
Traversing | 110W synchronous motor,transmission by timing belts |
Brake | 20KG-M Electromagnetic brake |
Air pressure | 4-6kg/cm2 |
Annealing pulley | diameter 120mm |
Annealing volt | DC0~50V |
Annealing current | DC600A |
Annealing motor power | 30KVA |
Power source | (customize) |
Spool control | PID |
Tension control | Weight balance |
Machine weight | 3200kg |
Certificaation

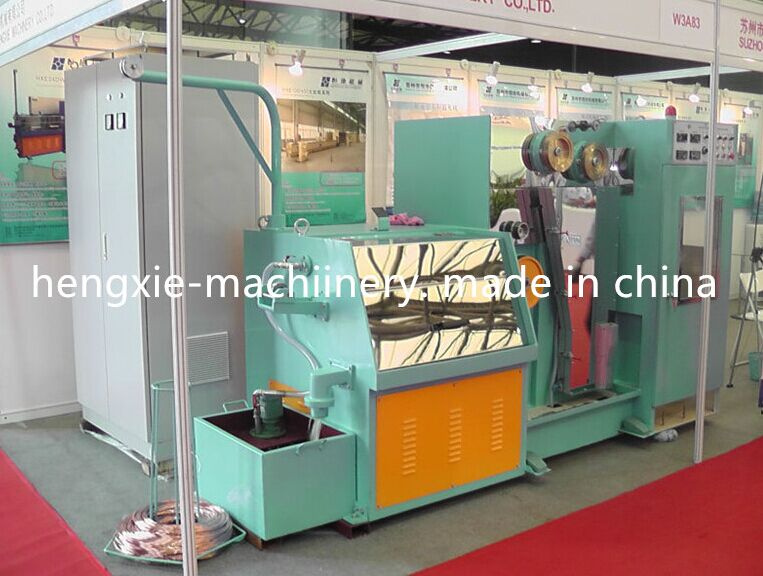

in exhibition
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
Warranty
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
