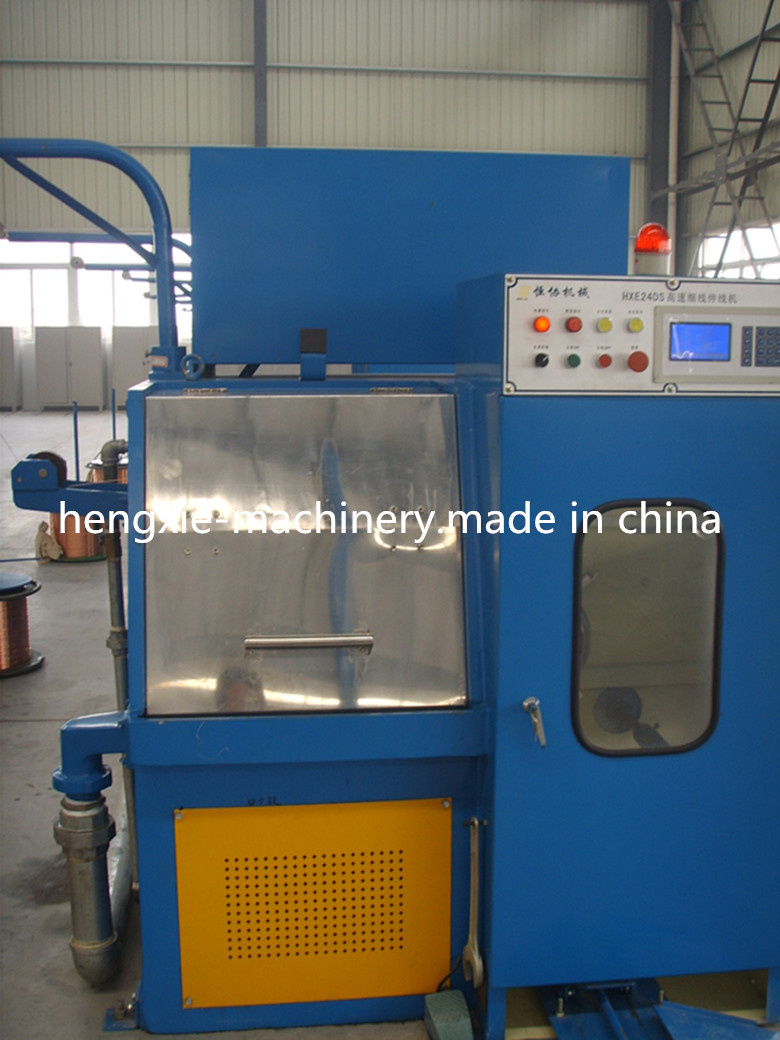

HXE-24DS Fine Wire Drawing Machine
HXE-24DS fine wire drawing machine is used to draw wire from 0.8mm-1.6mm to 0.25mm-0.6mm
HIgh speed
Energy saving
High productivity
Machine type | HXE-22DS | HXE-24DS | HXE-14DS |
Inlet diameter | 0.6-1.2mm | 0.5-1.0mm | 0.8-1.6mm |
Outlet diameter | 0.1-0.32mm | 0.08-0.25mm | 0.25-0.6mm |
Max line speed | 2500mpm | 2500mpm | 1500mpm |
Die numbers | 22 | 24 | 14 |
Slip ratio of machine | 15% | 13% | 15% |
Slip ratio of capstan | 8% | 8% | 8% |
capstan | Ceramic |
Max capstan diameter | 242 | 242 | 316 |
Fix speed capstan diameter | 207 | 207 | 268 |
Frame | Cast iron | Cast iron | Welded by steel plate |
Main motor | 11kw three phase AC motor | 15KW three phase AC motor |
Spool motor | 3.7KW three section AC motor | 5.5KW three section AC motor |
Revise system | Synchronous control spool |
Transmission type | Flat belt | Synchronous belt |
Pay off method | Over head |
Traversing unit | Flat belt with synchronous motor |
Tension control | Weight balance by swing arm |
Lubrication type | Spray type |
Applicable spool size | 300 | 300 | 300-400 |
Spooler capacity | 50-60 | 50-60 | 50-80 |
Bobbin loading&unloading type | Shaft type |
Power source | 380V |
Brake | Magnetic brake |
Dimension | 2050X1600X1900H | 2050X1600X1900 | 2600X1600X1900X |
Weight | 2500 | 2500 | 2200 |
III.Extra questions
1.Wire break detector, equipped, on the panel, if wire breaks, the light will on automatically, and machine will stop too (Malfunction indication light, and Malfunction reset)
2.Wire tension, weight balance type, no digital indication on panel. This is fine wire drawing machine, don`t equip.
3.Coolant tank capacity:
