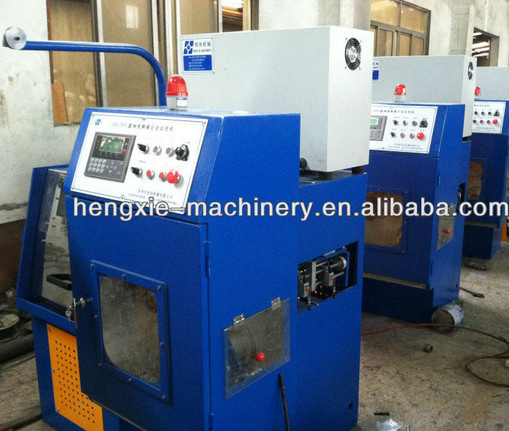

Hxe-24vx Super Fine Copper Wire Drawing Machine
Price: |
Negotiable/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
HXE-24VX Super fine copper wire drawing mahcine
The machine usage super small wire size and quality have guarantee.
Inlet diameter | 0.14mm-0.45mm |
Outlet diameter | 0.025mm-0.08mm |
Max line speed | 1500 |
Die numbers | 24 |
Slip ratio of machine | 8% |
Slip ratio of fix speed capstan | 7% |

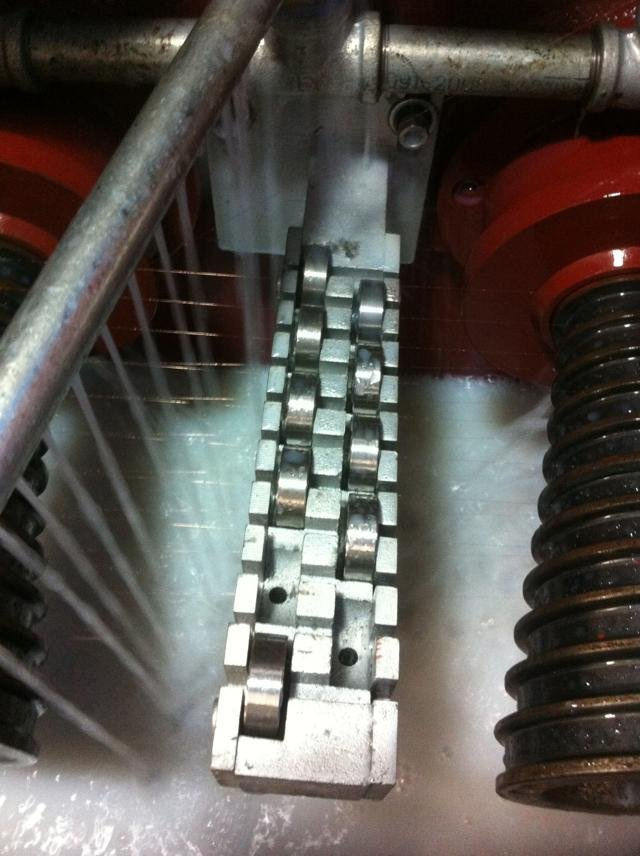

Capstan | Ceramic plasma |
Capstan diameter | 100mm |
Fix speed capstan | 100 |
Frame | Welded by steel plate |
Main motor | 4KW 4kw three phase Ac motor |
Revise system | Automatic tension control |
Power control | Inverter control |
Tranmission type | Flat belt |
Tension control | Tension tape wheel device |
Lubrication type | spray type |

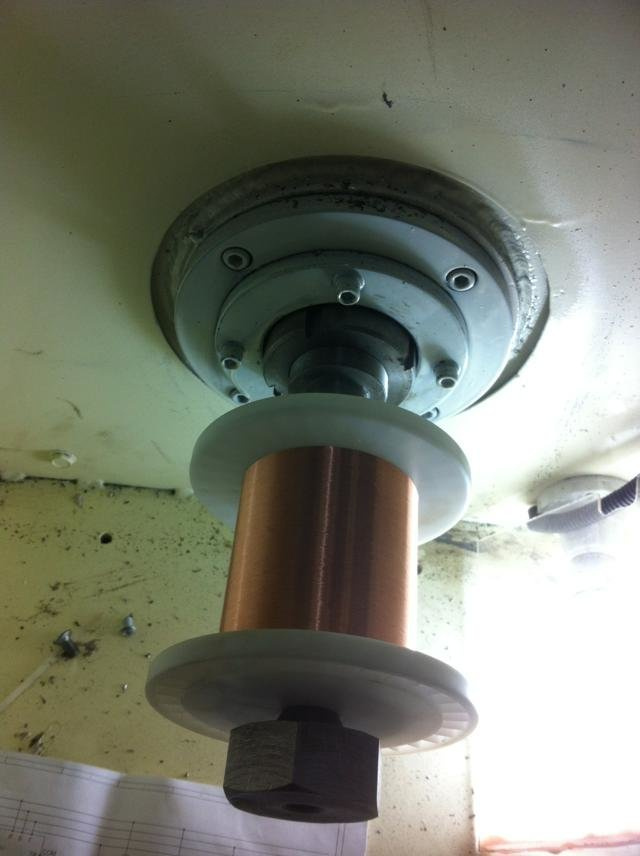

Bobbin size | 200mm |
Spooler size | 10kg |
Bobbin loading | Shaft type |
Power source | 380V or coustomized |
Brake | Magnetic brake |
Dimension | 1740L*1300W*1450H |
Weight | 1200kg |
The different size is different,if you have any request any quetion.don't hesitate cantact me.
Prod Model: |
HXE-24VX |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
Hxe New |
Popularity: |
Hot/on Sales |
Color: |
Bule/Customized |
Operation: |
Button Control or PLC with Touching Screen |
Power: |
Coustomized |
Usage: |
Wire Draing Machine |
Type: |
Copper Wire Drawing Machine |
Outlet Diameter: |
0.025mm-0.08mm |
Max.Inlet Wire Dia.: |
0.14mm-0.45mm |
Max. Number Of Block: |
24 |
Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.
Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.
With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
