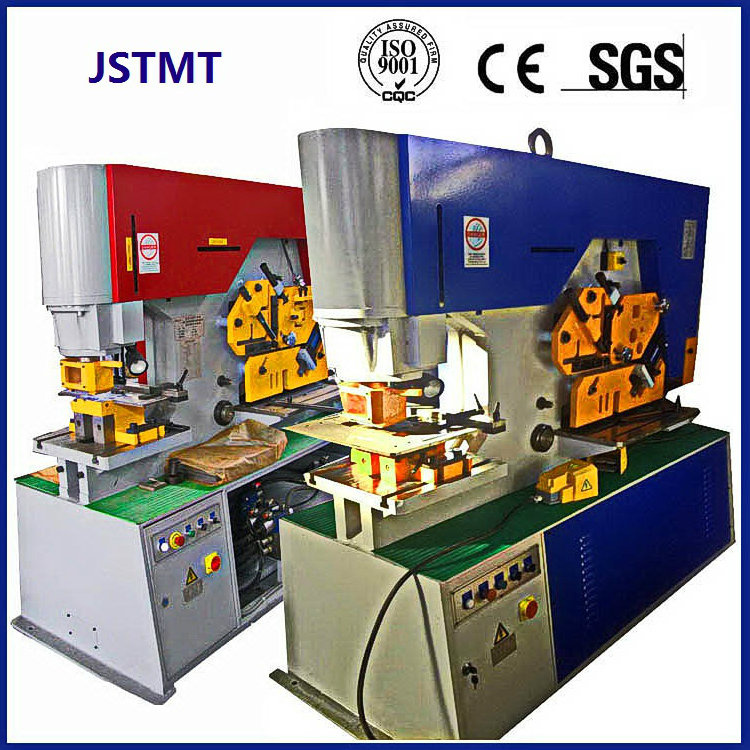

Hydraulic Angle Iron Shear Machine (Q35Y-25)

Hydraulic Angle Iron Shear Machine (Q35Y-25)
Price: US $ 4500.00-15000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Money Gram,Western Union

Hydraulic Angle iron shear Machine (Q35Y-25):


* The Hydraulic Iron worker widely used in metal structure processing, steel mold, vehicles, Tower Rack, Tele-communication Rack, Ship Building, Bridge.

* It adopt hydraulic driving system for various metal plate cutting, square bar, Round bar, angle,channel and joist, punching and notching. The hydraulic system and Electrical component are adopt Big brand, with stable characters and safe working environment.

* Functions: Shearing, Sectional Cutting(squar, round, Channel, Joints, Equal angle). Notching and Punching(RD.SQ.RE.OB).

* Iron worker withTools: Each standard one set of tools.
Option: Different sizes for RD. SQ. RE. And special joints. Louver, muti-V bending tools

* China Pump, Simens electrical, Imported Searling rings with CE qualified.

* Can option with:
  1. Two cylinders working same time without interference
  2. Hydraulic System Cooling system
  3. CNC automatic positioning and feeding system

   *Models: Q35Y-16, Q35Y-20, Q35Y-25, Q35Y-30, Q35Y-40, Q35Y-50

ShearingFlat bar thick x widemm16x25020x33025x33030x35535x45040x450
Max Capacity     mm8x40010x48016x60020x60025x70030x750
Section CuttingSquare barmm405050556065
Round bar (Dia)mm455060657080
Channel (type)mm120160200280320360
Joists (type)mm120160200280320360
Equal at 90mm125x12140x12160x14180x16200x16125x12
NotchingThickness  mm81010122020
Width                  mm808080808080
Depth                 mm100100100100100100
PunchingThickness         mm162025263540
Max Diametermm253035384045
Throat Depth    mm300355406600700800
Max Stroke         mm808080808080
Stroke Number25mm8-228-228-228-228-228-22
Tensile Strength (Times/Min)
Oil volumn,46#L6080120210250280
Overall size, Lx W x H    mm1640x730x17701860x900x19002355x960x20902680x1040x23001950x830x23002250x930x2100
Machine Weightkg1700230043006800950012500

Prod Model: Q35Y-16
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feathers: Two Cylinder Design
Certificate: ISO & CE
Color: Blue or Red for Reference
Available Model: Q35y-16, Q35y-20, Q35y-25, Q35y-30
Capacity: 60-300 Ton
Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.

With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.

Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.

Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.

Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.

After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
