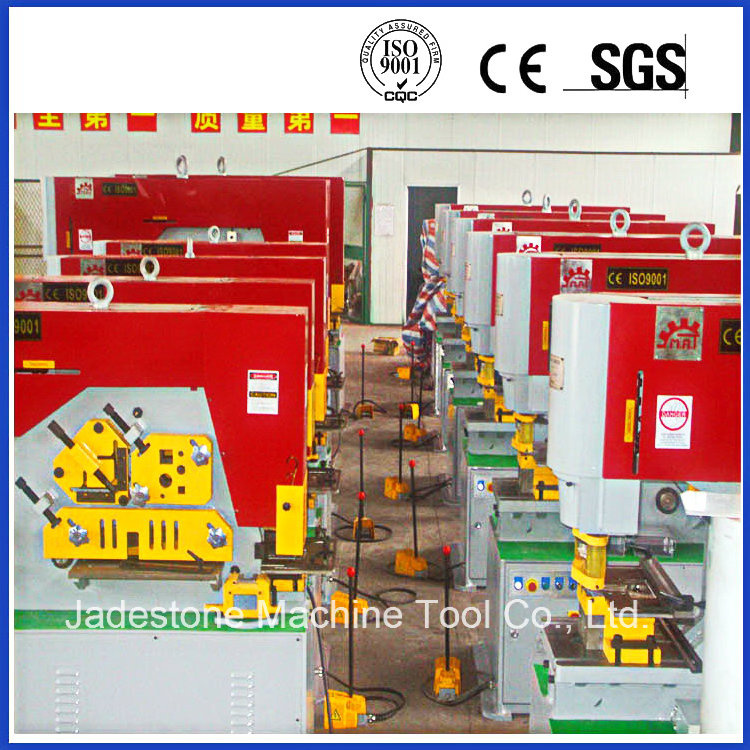

Universal Ironworker, CNC Machine Punch (Q35Y-16):
* The Hydraulic Iron worker widely used in metal structure processing, steel mold, vehicles, Tower Rack, Tele-communication Rack, Ship Building, Bridge.
* It adopt hydraulic driving system for various metal plate cutting, square bar, Round bar, angle, channel and joist, punching and notching. The hydraulic system and Electrical component are adopt Big brand, with stable characters and safe working environment.
* Functions: Shearing, Sectional Cutting(squar, round, Channel, Joints, Equal angle). Notching and Punching(RD. SQ. RE. OB).
* Iron worker withTools: Each standard one set of tools.
Option: Different sizes for RD. SQ. RE. And special joints. Louver, muti-V bending tools
* China Pump, Simens electrical, Imported Searling rings with CE qualified.
* Can option with:
1. Two cylinders working same time without interference
2. Hydraulic System Cooling system
3. CNC automatic positioning and feeding system
| Item | Description | Q35Y-25 | Unit |
| 1 | Shearing | Flat bar Thickness x Wide | 25x330 | mm |
| Max Capacity(mm) | 16x600 | mm |
| 2 | Section Cutting | square bar(side Length) | 50 | mm |
| Round bar (Diameter) | 60 | mm |
| Channel (Type) | 200 | mm |
| Joists (type) | 200 | mm |
| Equal at 90 | 160x14 | mm |
| 3 | Notching | Thickness | 10 | mm |
| Width | 80 | mm |
| Depth | 100 | mm |
| 4 | Punching | Thickness | 25 | mm |
| Max Diameter | 35 | mm |
| Throat Depth | 406 | mm |
| Max Stroke | 80 | mm |
| Number of Stroke | 820 | Times/min |
| Tensile Strength | 450 | N/min |
| 5 | Motor | Power | 7.5 | kw |
| 6 | Machine oil volume | #46 Hydraulic Oil | 120 | L |
| 6 | Overall size | Length. x Width. x Height | 2355x960x2090 | mm |
| 7 | Machine | weight | 4300 | kg |
Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.
With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.
Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.
Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.
Shipments:
Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.
After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
