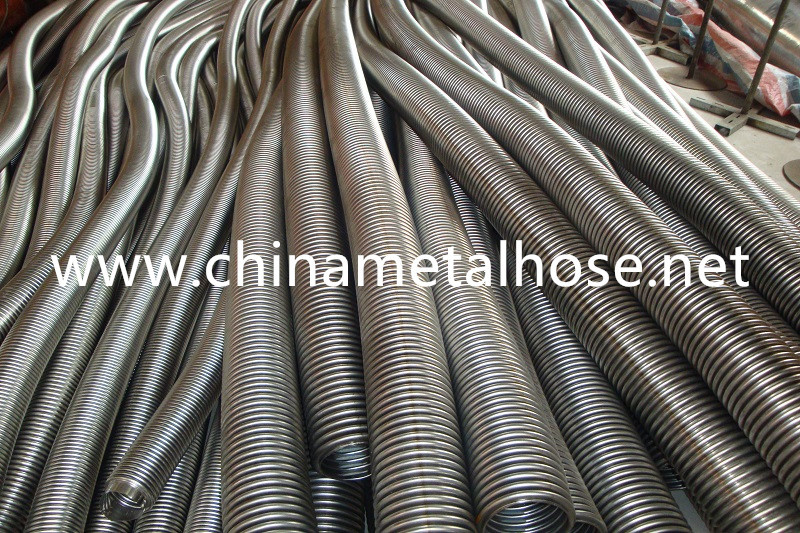

We manufacture all kinds of hydraulic stainless steel hose making machine,including corrugated hose,helical and interlock hose.

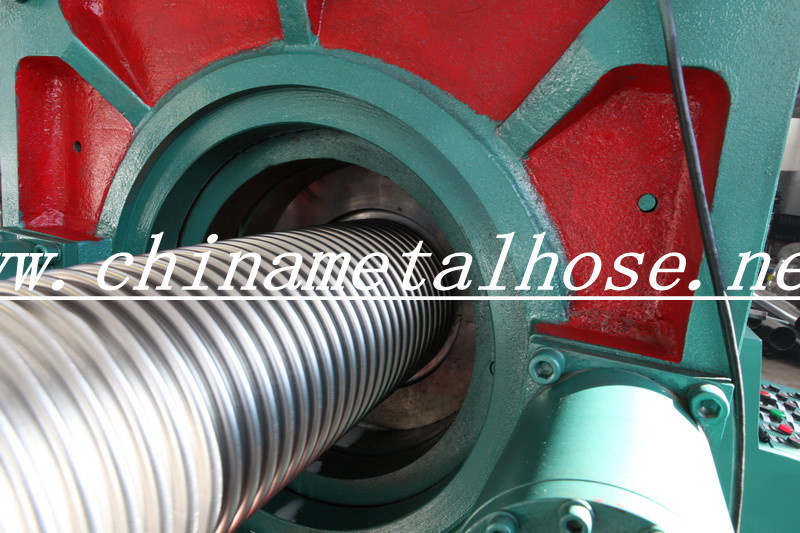

The hydraulic hose/bellow making machine can make hoses with single or double layer.The available size start from DN32 till DN630.Detailed size ranges:
1.DN32-100 Hose/bellow forming machine
Diameter: DN32-100mm
Wall thickness:0.3-1.0mm
Type of the bellows: annular bellows
Speed: 6-8seconds/convolution
Control: PLC control
Length: DN32 and DN40,up to 4000mm
The sizes bigger than DN50,up to 7000mm
Expanding medium: emulsified liquid
The parts will go with the machines: Rubber clamping parts(for caterpillars) and related guiding plates,DN32,40,50,65,80,100,totally 6sets
2.DN50-300 Hose&bellow forming machine
Diameter: DN50-300mm
No. of layers: single or double layers
Type of the bellows: annular bellows
Applications: for auto exhaust bellows, flexible metal hoses, and expansion joints
Hydraulic Metal Hose Making Machine
Control: PLC control
Length: up to 7500mm
Expanding medium: emulsified liquid
Forming speed:5-10seconds per convolution
ID DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300
Single wall thickness 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.2 1.5
Double layer wall thickness 0.25*2 0.3*2 0.4*2 0.50X2 0.60X2 0.70X2 0.80X2 0.90X2 1.0X2

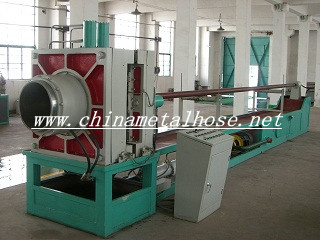

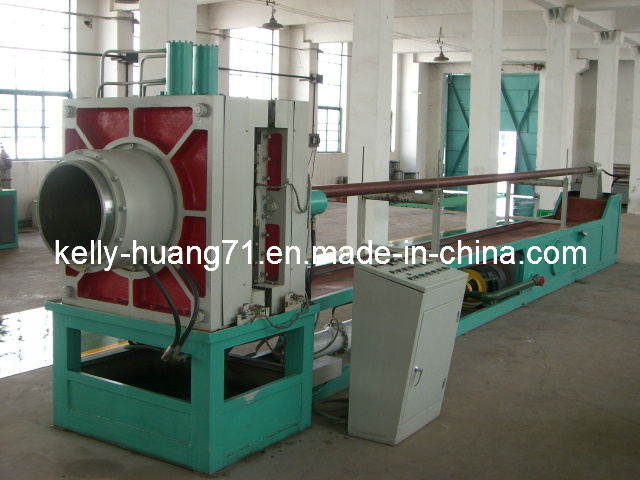

3.DN200-630 hydro hose & bellow forming machine
Diameter: DN200-630mm
No. of layers: single or double layers
Wall thickness: Single layer1.0-3.0mm
Double layers:0.8*2-1.6*2
Type of the bellows: annular bellows
Control: PLC control, manual or automatic control
Straight tube length: ≤1800mm
Expanding medium: emulsified liquid
Forming speed:8-28seconds per convolution
Molds and water injection head: DN200,250, 300,350,400,450,500,550,600mm
Wuxi Longterm Machinery is a professional supplier of all type of industrial equipment, flexible products, etc...With many years of history, the main items are as follows:
I. Production Line of LPG Gas Cylinder
Including circumferential seam welding machine
Longtitudinal seam welding machine
Hydraulic leakage test
Automatic trimming machine
Valve seat welding machine
Foot ring welding machine
Protection enclosure welding machine
End dish shaping machine
Annealing furnace
Shot blasting machine
Sandblast machine
2. Production line for Solar Water Tank
Including pressurized and non-pressurized solar water tank manufacturing line
The main equipment are as follows:
Circumferential seam welding machine
Longitudinal seam welding machine
Pipe fitting welding machine
Hole punching machine
Grooving machine
3. Production line for Steel Drum Manufacturing Line
Sheet rolling machine
Spot welding machine
Longitudinal seam welding machine
Grooving machine
Leakage testing machine
Flanging machine
Sealing machine
4. Flexible metal hose/ Expansion joints manufacturing machineries & products
-expansion joint
- flexible metal hoses
--vacuum bellows & hoses
- hose & pipe fitting
-welding seamer
-bellow forming machine
Mechanical bellow forming machine,
Mechanical hose forming machine
Hydro bellow forming machine
-flexible metal hose making machine
-hydraulic metal hose making machine
-EGR tubes
-EGR tube making equipment
-Braiding Machine
-camlock coupling
The above products have been exported to Ukraine, USA, Japan, Turkey, India and Egypt, etc...
In China. We are capable total in-house design, manufacturing & testing capabilities.
