| Model | Max output
power | Frequency | Max input
current | Working voltage | Input
voltage | Duty cycle | Water flow | Generator
weight | Transformer
weight | Generator
size |
| SF- 30AB | 30KW | 10-40KHZ | 48A | 342-430V |
3phase
380V
50/60HZ
| 100%
| 27L/(min) |
(0.1Mpa)
| 61KG | 31KG |
| SF-40AB | 40KW | 10-40KHZ | 80A | 342-430V | 32L/(min) | 73KG | 37KG |
| SF-50AB | 50KW | 10-40KHZ | 90A | 342-430V | 32L/(min) | 75KG | 41KG |
| SF-60AB | 60KW | 10-40KHZ | 110A | 342-430V | 40L/(min) | 80KG | 46KG |
| SF-80AB | 80KW | 10-40KHZ | 160A | 342-430V | 50L/(min) | 106KG | 68KG |
| SF-100AB | 100KW | 10-40KHZ | 200A | 342-430V | 50L/(min) | 121KG | 91KG |
| SF-120AB | 120KW | 10-40KHZ | 240A | 342-430V | 68L/(min) | 138KG | 95KG |
| SF-160AB | 160KW | 8-30KHZ | 280A | 342-430V | 68L/(min) | 151KG | 121KG |
| SF-200AB | 200KW | 8-30KHZ | 320A | 342-430V | 80L/(min) | 172KG | 125KG |
| SF-250AB | 250KW | 8-30KHZ | 380A | 342-430V | 80L/(min) | 180KG | 131KG |
| SF-300AB | 300KW | 8-30KHZ | 460A | 342-430V | 100L/(min) | 185KG | 136KG |
| SF-350AB | 350KW | 8-30KHZ | 540A | 342-430V | 100L/(min) | 192KG | 141KG |
Main characteristics:1. IGBT inversion technology based LC series circuit .2. phase locking looping technology and soft switch ensure good reliability, realize power and
frequency tracking automatically.3. diode rectifier cause high power factor more than 0.954. working continuously with 100% duty cycle, power can be instantly turned on or shut off.5. perfect protective circuit and cooling system design, which ensure the good reliability of
machine.6. low energy consumption: converts up to 97.5% above of the expended energy into useful
heat. energy saving 15%-30% compared with SCR induction heating machine. 7. environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your
employees by eliminating smoke, waste heat, noxious emissions and loud noise.8. operating and installation easily and safely9. can substitute traditional heating methods.Application:

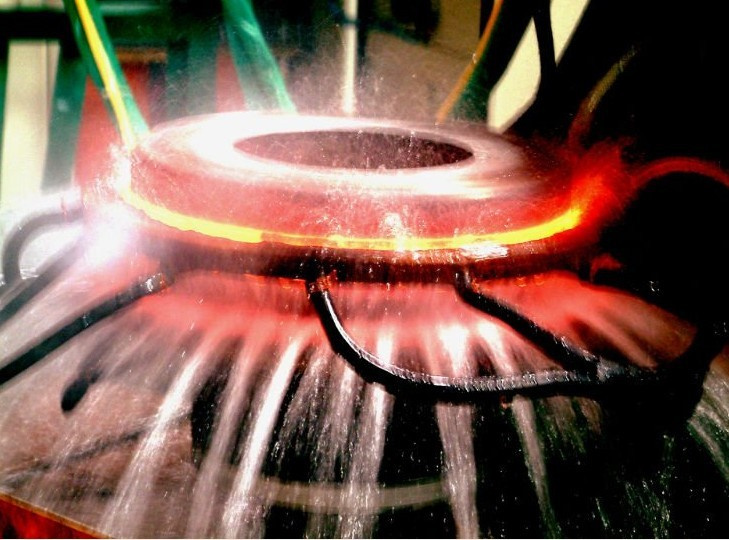

Quenching: Quenching for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear(orchard shear).
Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, drive shaft, small shaft and fork.
Various electric tools: Gears and axes.
Quench for machine tool: Lathe deck and guide rail.
Quench for various hardware metal parts and machined parts, such as shaft, gear(chain wheel), cam, chuck and clamp etc.
Quench for hardware molds, such as small size mold, mold accessory and inner hole of mold.
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.
Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)
Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
