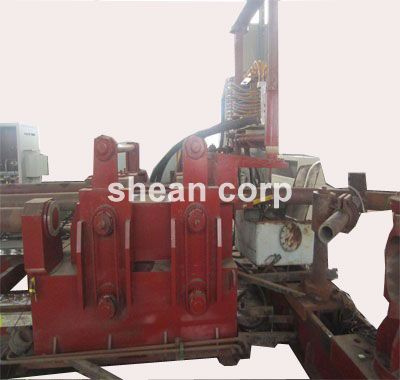

Induction Bender
Induction Bender is used for bending steel tubes and pipes and known for sturdy construction.
Shean offer wide range of pipe and pipe fitting forming machines.
Specifications of the Bent Machine that we do:
1. Production range: OD21mm-1420mm
2. Radius: 2.5D-10D
3. Thickness: 10mm-80mm
4. Material: Carbon steel, Alloy steel, Stainless steel
The design of Induction Bender has novel structure, safe using, reasonable price, high unloading speed etc advantages and it's easy to operate, in local market the hydraulic pipe bending machine has shared very big percent.
Structure and working principle
Induction Bender is composed of electric oil pump, high pressure oil pipe, quick joint, working cylinder, plunger pump, bending part. The high pressure oil out put from the electric oil pump, through the high pressure oil pipe into working cylinder, high pressure oil push the plunger pump in the cylinder, forming the pushing force, then through the bending part to bend the pipe.
Shean also professionally manufacture elbow forming machine, pipe bending machine, pipe expanding machine, medium frequency, steel pipe, pipefittings and so on.
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
2 |
1220 |
20 |
6500 |
4 |
600 |
3 |
1020 |
20 |
6500 |
4 |
500 |
4 |
820 |
20 |
6500 |
4 |
400 |
5 |
720 |
20 |
6500 |
4 |
320 |
6 |
630 |
20 |
6500 |
2 |
300 |
7 |
530 |
14 |
6500 |
2 |
160 |
8 |
426 |
14 |
6500 |
2 |
130 |
9 |
325 |
14 |
6500 |
2 |
84 |
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
