Max input power frequency: 70KW
Frequency: 30-80kHz
Max input current: 105A
Output current: 3-22A
Output voltage: 70-550V
Input voltage: 3phase 380V
Duty cycle: 100%
Timer: 0.1-99.9 seconds
Whole systems water flow: ≥ 0.2Mpa≥ 10L/Min
Power supply water flow: : ≥ 0.2Mpa≥ 10L/Min

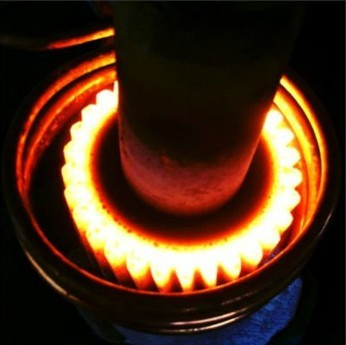

Quenching: Quenching for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear(orchard shear).
Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, drive shaft, small shaft and fork.
Various electric tools: Gears and axes.
Quench for machine tool: Lathe deck and guide rail.

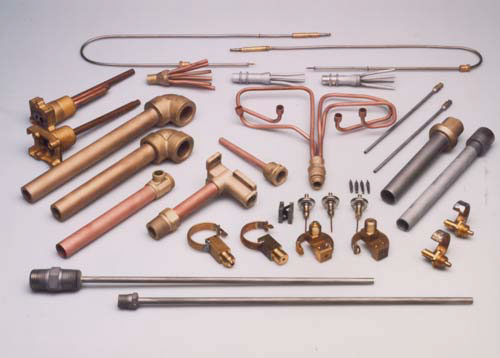

Quench for various hardware metal parts and machined parts, such as shaft, gear(chain wheel), cam, chuck and clamp etc.
Quench for hardware molds, such as small size mold, mold accessory and inner hole of mold.
|
Model |
Maximun input power |
Oscilating frequency |
Maximum input current |
Input voltage |
Water flow |
Net weight |
|
HF-15A/AB |
7KW |
30-100KHZ |
32A |
220V 50hz |
0.2Mpa,2-5L/min |
28kg |
|
HF-25A/AB |
15KW |
32A |
35kg |
|
HF-25ABD |
25KW |
30-80KHZ |
23A |
380V
50Hz |
0.2Mpa,6L/min |
58kg |
|
HF-35AB |
35KW |
55A |
62kg |
|
HF-40AB |
40KW |
60A |
62kg |
|
HF-45AB |
45KW |
68A |
85kg |
|
HF-50AB |
50KW |
90A |
89kg |
|
HF-60AB |
60KW |
105A |
126kg |
|

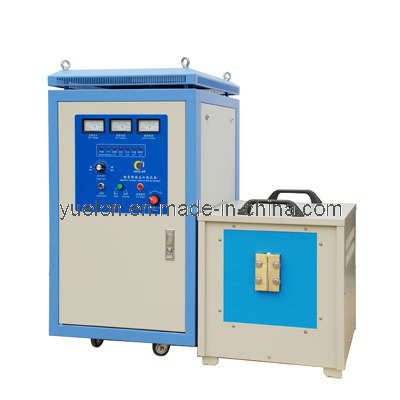

HF-70AB |
70KW |
110A |
145kg |
We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.
Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)
Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
